Leybold NEW Turbo.Drive TD-400 Mounting Kit for Bottom of SL-80 Turbo Pumps. PN: 800110V0008
Leybold NEW Turbo.Drive TD-400 Mounting Kit for Bottom of SL-80 Turbo Pumps.

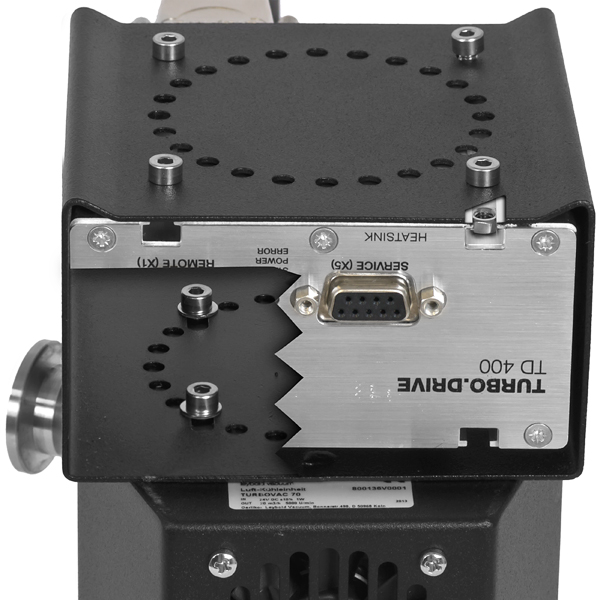

Mounting the Turbo.Drive TD-400 Electronic Frequency Converter using this mount kit at the bottom of the Turbo pump, frees the space around the Pump allowing to mount an air cooler unit (PID: P105460) direct to the pump. Water cooling can not be applied when using this bottom controller mounting kit. This new generation of SL TURBOVAC turbomolecular pumps have improved mechanical rotor suspension and compound stage excels through a new compact design, improved vacuum performance and a standardized accessories program. The SL series pumps are among the quietest turbo pumps on the market today, the SL 80 pumps have less than 46 dB(A). The Leybold SL-80 with ISO-63 inlet flange has a 65 l/s pumping speed for nitrogen, can have an ultimate pressure as low as 1.5x10-10 Torr when backed with oil sealed rotary vane pump, and has a KF-16 roughing flange.
The Leybold TURBOVAC SL turbomolecular pumps are highly flexible regarding the controller-mounting position, which can be placed onboard, as a bench-top unit or in a rack. In addition, the pumps can be mounted in virtually any position and at any angle. The turbomolecular pumps from the TURBOVAC SL product family are designed to handle the most advanced and demanding applications and requirements in research and industry and many more applications.
