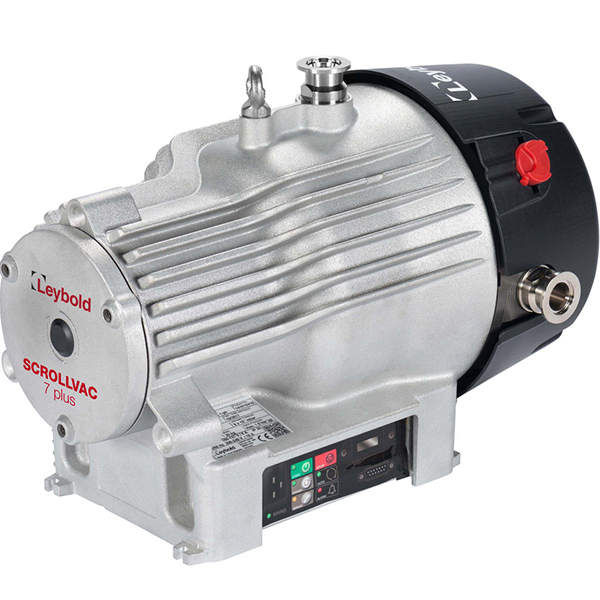

Leybold OEM Chemical Resistant Tip Seal and Exhaust Valve Minor Repair Kit, ScrollVac 7C thru 15C Plus Dry Scroll Pumps. PN: EK117141002
Leybold OEM Chemical Resistant Tip Seal and Exhaust Valve Minor Repair Kit, ScrollVac 7C thru 15C Plus Dry Scroll Pumps Leybold Part Number: EK117141002

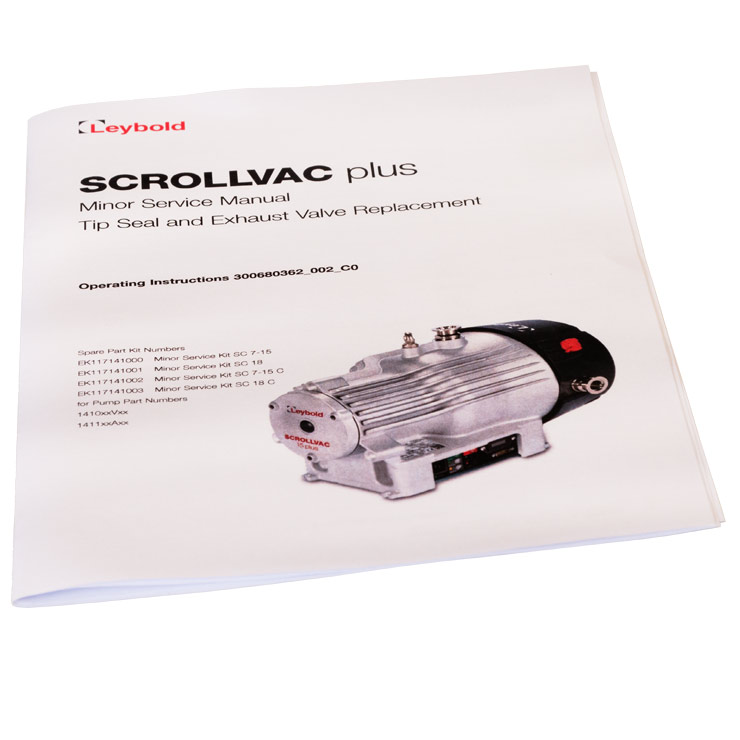

These minor repair kits for Leybold ScrollVac 7C, 10C, 12C, and 15C Plus models are OEM Leybold Products. They include replacement tip seals, o-rings, exhaust valve, manual, and other items needed to maintain and keep your dry scroll pump in proper working order.
Press ESC to Close
APPLICATIONS
General clean pumping applications
Scanning Electron Microscopes - SEM
Beam lines and high energy physics
Mass Spectrometry
Electron Microscopy
Sample Preparation
Research and Development
High Energy Physics
Industrial
Semiconductor
Backing turbo pumps
Centrifuges, ultra-high speed
Coating
Cryogenics
Degassing/curing - oil, epoxy resin
Distillation/extraction/filtration
Laboratory bench top vacuum
Lasers, gas recovery and recirculation
Research and development
Surface science instruments
Now with an integral pump controller managing the supply of current to a three-phase electric motor in accordance with
operating conditions. The controller monitors power and temperature, and will protect the pump in the event of
operation under sustained high load or under fault conditions.
The controller provides the user interface. The pump may be operated in Manual mode, using the buttons on the interface panel, with a unique feature to control the speed of the pump in Standby Mode to 70% of full speed or with other buttons to increase or decrease pump speed to save wear and tear on tip seals and bearing service life; or a Remote Mode, via serial communications; or a digital and analogue process control (parallel) mode, via the 15-way D-type logic interface connector.
To pump high vapor loads, gas ballast can be delivered into the pump to prevent condensation of the vapor carried by the pumped gases.
The logic interface has been designed to support both serial control, parallel control and monitoring, operating through one connector. For serial control either RS232 or RS485 can be selected.
