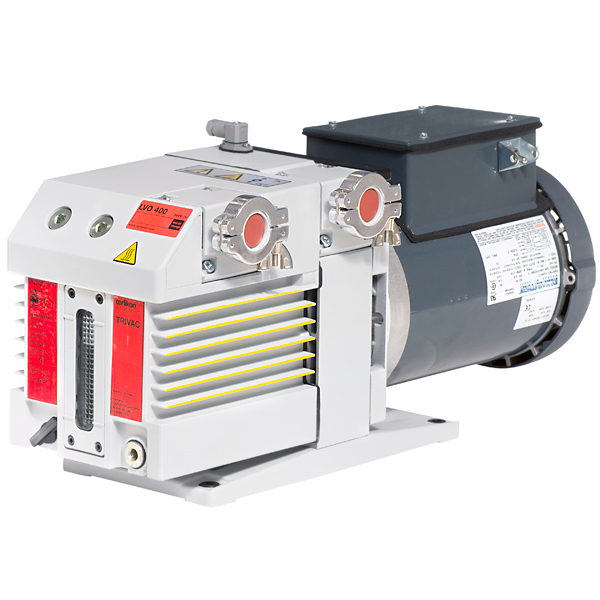

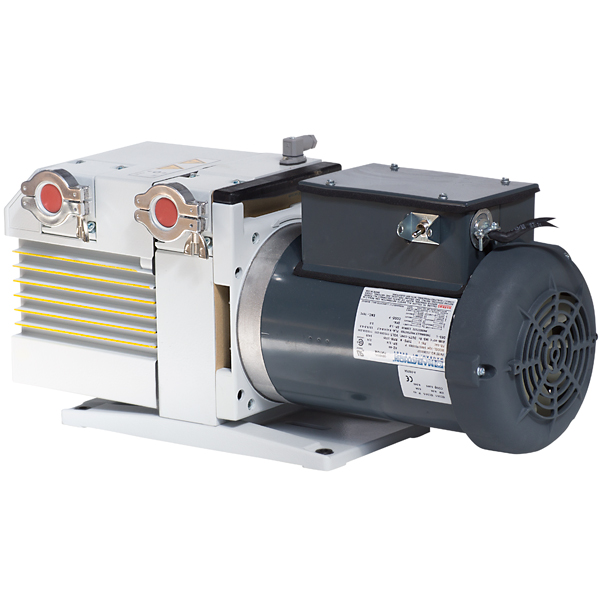

Leybold D16BCS TriVac PFPE Chemical Series Vacuum Pumps, 9.7 cfm, 1-Phase, 91369-1


Brand New Leybold D16BCS TriVac PFPE Chemical Series Vacuum Pumps. 9.7 cfm, 1-Phase, 110-220 VAC, 60 Hz. PN: 91369-1


The NEW Leybold D16 BCS D16BCS PFPE Chemical BCS Trivac is especially prepared for operation with PFPE Oils. The use of PFPE Synthetic lubricants offers superior characteristics where chemical and oxidizing influences occur. The Leybold D16 D16BCS PFPE BCS dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pressure of 1x10-4 Torr and a pumping speed of 9.7 cfm.

    These pumps are commonly used for:
  • Pumping of corrosive or aggressive media
  • Backing turbomolecular pumps
  • Backing diffusion pumps
  • Backing roots pumps, turbo or cryo pumps, rotary evaporation,
    refrigeration system evacuation, epoxy degassing, vacuum sterilization
  • Backing mass spectrometers, freeze drying
  • Vacuum centrifugal applications
  • Vacuum distillation
  • Space research
  • and other vacuum processes
These Leybold D16 D16BCS PFPE Chemical BCS vacuum pumps have a pumping speed displacement of 9.7 cfm and operate on 1-Phase, 115/208-230 VAC, 60/50 Hz, NEMA plug. These pumps are BRAND NEW items that we stock in inventory and comes with a manufacture warranty. Parts, oils and accesories for this pump are located on this website. (See Optional Accessories for the Trivac PFPE BCS Pumps Below)




Press ESC to Close





PDF Logo Leybold Trivac D16BCS, D25BCS Rotary Vane Vacuum Pumps Operating Instructions.pdf
