Inficon PSG050 Pirani Standard Gauge, 1/8 in. male NPT, PN 399-501


Inficon PSG050 Pirani Standard Gauge, 1/8 in. male NPT, PN 399-501.

The Pirani Standard Gauge are vacuum gauge heads which are operated in connection with the operating units VGC012 and VGC023. The gauge head is used for the measurement of absolute pressures in the rough and fine vacuum range.

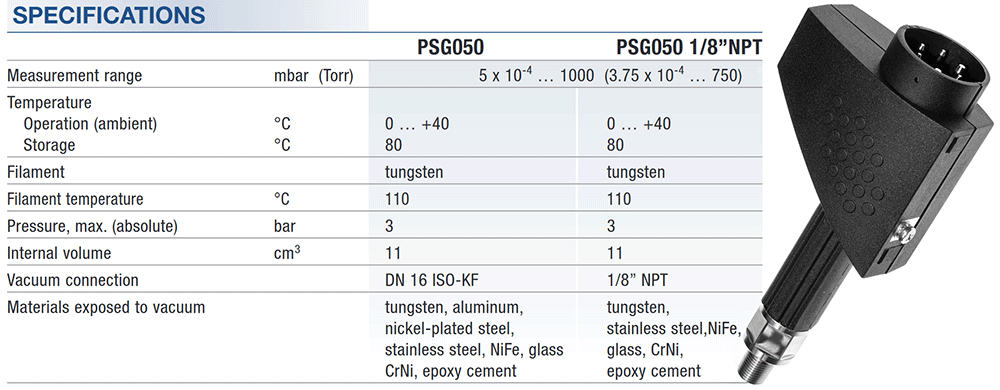

Key Features:
• Measurement range 5 x 10-4 to 1000 mbar (750 to 3.75 x 10-4 Torr).
• Tungsten filament.
• Temperature compensated 0 °C to 40 °C.
• Constant filament temperature.
• Aluminium sensing cell with tungsten filament.
• Excellent temperature compensation.
• Stainless steel sensing cell with tungsten filament.
• Use Vacuum Gauge Controller VGC012 / VGC023.


Press ESC to Close


Inficon PSG050 Standard Gauge
PDF Logo RoHS Compliance Download

PDF Logo Inficon PSG050 - 51 Pirani Standard Gauge Operation Manual.pdf

PDF Logo Inficon PSG050 - 51 Pirani Standard Gauge Data Sheet.pdf
