This is an Ideal Vacuum Cube 9 x 9 inch blank plate without ports. The plate is machined from 6061-T6 aluminum and powder coated blue. It has an internal optical breadboard for mounting test items or fixtures. Blank plates are the least expensive Cube plates and are used for the bottom of Cubes or any other Cube sides where ports are not needed. Features:9 x 9 plate6061-T6 aluminumBlue powdercoatBlank plate without ports Internal optical breadboardMounts in any orientationDirectly mounts to 9 x 9 Cube frame only

These Ideal Vacuum Cube octagonal to 6 x 6 in. adapter plates are designed to fit our 15 x 15 x 6 in. octagonal vacuum chambers. They mount to either the top or bottom of our octagonal frames, and allow any of our 6 x 6 in. Cube plates or even a 6 x 6 or 6 x 12 in. chamber frame to be mated to the octagonal plate. These adapter plates are built with our patented taper seal technology which incorporates sloped sealing features to help prevent damage to the vacuum sealing surfaces. These Vacuum Cube plates are CNC milled from a single block of lightweight 6061-T6 Aluminum Alloy. Ideal Vacuum Cube Introduction Our Ideal Vacuum Cube is a modular high-vacuum chamber system, conceived to enable creativity and design flexibility in vacuum chamber system construction. Cubes can be stacked together into various shapes and configurations, with interchangeable plates offering a variety of features for connections, windows, and feedthroughs. Plates include 1/4"-20 mounting threads on a standard 1" optical pattern for easy connection of hinges, posts, mounts, lenses, polarizers, and other accessories.

These Ideal Vacuum Cube blank octagonal plates are designed to fit our 15 x 15 x 6 in. octagonal vacuum chambers. These 15 x 15 in. blank plates can be used as either a bottom or top plate on the octagon frame. The chamber side of the plates include 1/4"-20 mounting threads on a standard 1" optical pattern for easy connection of mounts, lenses, polarizers, or other accessories. These blank plates are built with our patented taper seal technology which incorporates sloped sealing features to help prevent damage to the vacuum sealing surfaces. These Vacuum Cube plates are CNC milled from a single block of lightweight 6061-T6 Aluminum Alloy. Ideal Vacuum Cube Introduction

This Ideal Vacuum Cube hardware kit is needed when constructing a 15 x 15 x 6 octagonal chamber. The 15 x 15 x 6 octagonal Cube frame takes eight 6" x 6" and two 15" x 15" top and bottom plates to complete it (P108700). This kit includes O-rings for all the plates, including octagonal adapter plates, and the 1/4"-20 x 5/16" long stainless steel socket head cap screws (SHCS) needed to mount the plates on the frame, including screws for top and bottom adapter plates. O-rings are made of Viton and can be baked up to 150 degrees Celsius. The socket head cap screws (SHCS) are made of 18-8 stainless steel. The top and bottom 15 in. octagonal plates may be blank (P1013090), or be adapter plates that accept a 6 x 6 plate (P1013088), a 9 x 9 plate (P1013043), or a 6 x 12 plate (P1013089).

These Ideal Vacuum Cube octagonal to 6 x 12 in. adapter plates are designed to fit our 15 x 15 x 6 in. octagon vacuum chambers. They mount to either the top or bottom of our octagonal frames, and allow any of our 6 x 12 in. Cube plates or even a 6 x 12 in. chamber frame to be mated to the octagonal plate. These adapter plates are built with our patented taper seal technology which incorporates sloped sealing features to help prevent damage to the vacuum sealing surfaces. These Vacuum Cube plates are CNC milled from a single block of lightweight 6061-T6 Aluminum Alloy. Ideal Vacuum Cube Introduction Our Ideal Vacuum Cube is a modular high-vacuum chamber system, conceived to enable creativity and design flexibility in vacuum chamber system construction. Cubes can be stacked together into various shapes and configurations, with interchangeable plates offering a variety of features for connections, windows, and feedthroughs. Plates include 1/4"-20 mounting threads on a standard 1" optical pattern for easy connection of hinges, posts, mounts, lenses, polarizers, and other accessories.

These replacement Viton O-rings are used on all top and bottom octagonal plates that fit our 15 x 15 x 6 in. octagonal Ideal Vacuum Cube modular chambers. They are are used to create a vacuum tight seal between the octagonal frame and plate. These o-ring seals are installed on the inner sealing groove of the plate. They are made of Viton and can be baked up to 150 degrees Celsius without permanent deformation. Chambers sealed with Viton O-rings can achieve vacuum in the 10 Torr range (high vacuum). Ideal Vacuum Cube Introduction Our Ideal Vacuum Cube is a modular high-vacuum chamber system, conceived to enable creativity and design flexibility in vacuum chamber system construction. Cubes can be stacked together into various shapes and configurations, with interchangeable plates offering a variety of features for connections, windows, and feedthroughs. Plates include 1/4"-20 mounting threads on a standard 1" optical pattern for easy connection of hinges, posts, mounts, lenses, polarizers, and other accessories.

These Ideal Vacuum Cube octagonal to 9 x 9 inch adapter plates are designed to fit our 15 x 15 x 6 in. octagonal vacuum chambers. They mount to either the top or bottom of our octagonal frames, and allow any of our 9 x 9 in. Cube plates to be mated to the octagonal plate. These adapter plates are built with our patented taper seal technology which incorporates sloped sealing features to help prevent damage to the vacuum sealing surfaces. These Vacuum Cube plates are CNC milled from a single block of lightweight 6061-T6 Aluminum Alloy. Ideal Vacuum Cube Introduction Our Ideal Vacuum Cube is a modular high-vacuum chamber system, conceived to enable creativity and design flexibility in vacuum chamber system construction. Cubes can be stacked together into various shapes and configurations, with interchangeable plates offering a variety of features for connections, windows, and feedthroughs. Plates include 1/4"-20 mounting threads on a standard 1" optical pattern for easy connection of hinges, posts, mounts, lenses, polarizers, and other accessories.

This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered KF-25 bulkhead port\. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).Features:9 x 9 plate6061-T6 aluminumBlue powdercoatOne KF-25 (NW-25) bulkhead port (uses KF-25 bulkhead clamp and centering ring) Internal optical breadboardMounts in any orientation

This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered KF-40 bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600) Features:9 x 9 plate6061-T6 aluminumBlue powdercoatOne KF-40 (NW-40) bulkhead port (uses KF-40 bulkhead clamp and centering ring) Internal optical breadboardMounts in any orientation

This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered KF-40 bulkhead port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600) Features:9 x 9 plate6061-T6 aluminumUncoated for bakeout to 150°COne KF-40 (NW-40) bulkhead port (uses KF-40 bulkhead clamp and centering ring)

This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered KF-50 bulkhead port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-50 centering ring (P101245) and bulkhead clamp (P108104 or P104601).Features:9 x 9 plate6061-T6 aluminum6061-T6 aluminumUncoated for bakeout to 150°COne KF-50 (NW-50) bulkhead port (uses KF-50 bulkhead clamp and centering ring)

This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered KF-50 bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-50 centering ring (P101245) and bulkhead clamp (P108104 or P104601).Features:9 x 9 plate6061-T6 aluminumBlue powdercoatOne KF-50 (NW-50) bulkhead port (uses KF-50 bulkhead clamp and centering ring) Internal optical breadboardMounts in any orientation

This is an Ideal Vacuum Cube 9 x 9 inch plate with four KF-16 bulkhead ports. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-16 centering ring (P101242) and bulkhead clamp (P108101 or P104598). Features:9 x 9 plate6061-T6 aluminumBlue powdercoatQuad KF-16 (NW-16) bulkhead ports (uses KF-16 bulkhead clamps and centering rings) Internal optical breadboardMounts in any orientation

This is an Ideal Vacuum Cube 9 x 9 inch plate with four KF-16 bulkhead ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-16 centering ring (P101242) and bulkhead clamp (P108101 or P104598). Features:9 x 9 plate6061-T6 aluminumUncoated for bakeout to 150°CQuad KF-16 (NW-16) bulkhead ports (uses KF-16 bulkhead clamps and centering rings)

This is an Ideal Vacuum Cube 9 x 9 inch plate with four KF-25 bulkhead ports. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599). Features:9 x 9 plate6061-T6 aluminumBlue powdercoatQuad KF-25 (NW-25) bulkhead ports (uses KF-25 bulkhead clamps and centering rings) Internal optical breadboardMounts in any orientation

This is an Ideal Vacuum Cube 9 x 9 inch plate with four KF-25 bulkhead ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).Features:9 x 9 plate6061-T6 aluminumUncoated for bakeout to 150°CQuad KF-25 (NW-25) bulkhead ports (uses KF-25 bulkhead clamps and centering rings)

This is an Ideal Vacuum Cube 9 x 9 inch plate with four KF-40 bulkhead ports. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600) Features:9 x 9 plate6061-T6 aluminumBlue powdercoatQuad KF-40 (NW-40) bulkhead ports (uses KF-40 bulkhead clamps and centering rings) Internal optical breadboardMounts in any orientation

This is an Ideal Vacuum Cube 9 x 9 inch plate with four KF-40 bulkhead ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600) Features:9 x 9 plate6061-T6 aluminumUncoated for bakeout to 150°CQuad KF-40 (NW-40) bulkhead ports (uses KF-40 bulkhead clamps and centering rings)

This is an Ideal Vacuum Cube 9 x 9 inch plate with five KF bulkhead ports, including one KF-40, two KF-25, and two KF-16 ports. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use standard centering rings and bulkhead clamps. KF-16 uses centering ring (P101242) and bulkhead clamp (P104598 or P108101)KF-25 uses centering ring (P101243) and bulkhead clamp (P108102 or P104599)KF-40 uses centering ring (P101244) and bulkhead clamp (P108103 or P104600)

This is an Ideal Vacuum Cube 9 x 9 inch plate with five KF bulkhead ports, including one KF-40, two KF-25, and two KF-16 ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use standard centering rings and bulkhead clamps. KF-16 uses centering ring (P101242) and bulkhead clamp (P104598 or P108101)KF-25 uses centering ring (P101243) and bulkhead clamp (P108102 or P104599)

This is an Ideal Vacuum Cube 9 x 9 inch plate with one ISO-F 63 port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.

This is an Ideal Vacuum Cube 9 x 9 inch plate with one ISO-F 80 port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101767). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.

This is an ISO-F 100 gate valve adapter plate kit for the 9 x 9 Ideal Vacuum Cube. This adapter allows the compact connection of an ISO-F 100 gate valve (with tapped mounting holes) to an Ideal Vacuum Cube™, without additional plumbing or fittings. The adapter consists of two plates. One plate has our patented Taper-Seal™ O-ring seal and is mounted to the Cube frame. The other plate is mounted to the gate valve’s threaded flange. An ISO 100 centering ring with O-ring is sandwiched between the two plates which are then screwed together to make the seal. This adapter kit can be used to isolate a turbomolecular pump from the chamber. It creates the shortest possible pumping path for maximum high vacuum performance.

This is an Ideal Vacuum Cube 9 x 9 inch plate with one ISO-F 100 port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101768). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.

This is an Ideal Vacuum Cube 9 x 9 inch plate with one ISO-F 160 port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104065) and a centering ring with O-ring seal are needed. (P101769). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.

This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered ISO-F 63 port. The plate is machined from 6061-T6 aluminum and powder coated blue. The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals. Features:9 x 9 plate6061-T6 aluminum

This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered ISO-F 100 port. The plate is machined from 6061-T6 aluminum and powder coated blue. The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101768). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals. Features:9 x 9 plate6061-T6 aluminum

This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered ISO-F 80 port. The plate is machined from 6061-T6 aluminum and powder coated blue. The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101767). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals. Features:9 x 9 plate6061-T6 aluminum

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered CF 2.75" Conflat port. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 1/4-28 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires six (6) 1/4-28 x 7/8" long, silver-plated, 12 point bolts (P104404). The CF ports are not compatible with metal gaskets. Use only Viton seals (P104341). Cube baseline vacuum is 1 x 10 Torr. Features:9 x 9 plate6061-T6 aluminumBlue powdercoatOne CF 2.75" Conflat port with 1/4-28 UNF tapped holes

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with one CF 3.375" port. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104342). Cube baseline vacuum is 1 x 10 Torr. Features:9 x 9 plate6061-T6 aluminumBlue powdercoatSingle CF 3.375" port with 5/16-24 UNF tapped holes

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with one CF 4.5" and two CF 2.75" Conflat ports. The plate is machined from 6061-T6 aluminum and powder coated blue. The plate's 4.5" CF port has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. The 4.5" CF port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250), and uses a Viton seal (P104342). Each of the two CF 2.75" ports have 1/4-28 UNF tapped mounting holes and each port requires six (6) 1/4-28 x 7/8" long, silver-plated, 12 point bolts (P104404) and use Viton seals (P104341). The CF ports are not compatible with metal gaskets. Cube baseline vacuum is 1 x 10

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with four CF 3.375" Conflat ports. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. The plate's Conflat ports each require eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF ports are not compatible with metal gaskets. Use only Viton seals (P104342). Cube baseline vacuum is 1 x 10 Torr. Features:9 x 9 plate6061-T6 aluminumBlue powdercoatQuad CF 3.375" ports with 5/16-24 UNF tapped holes

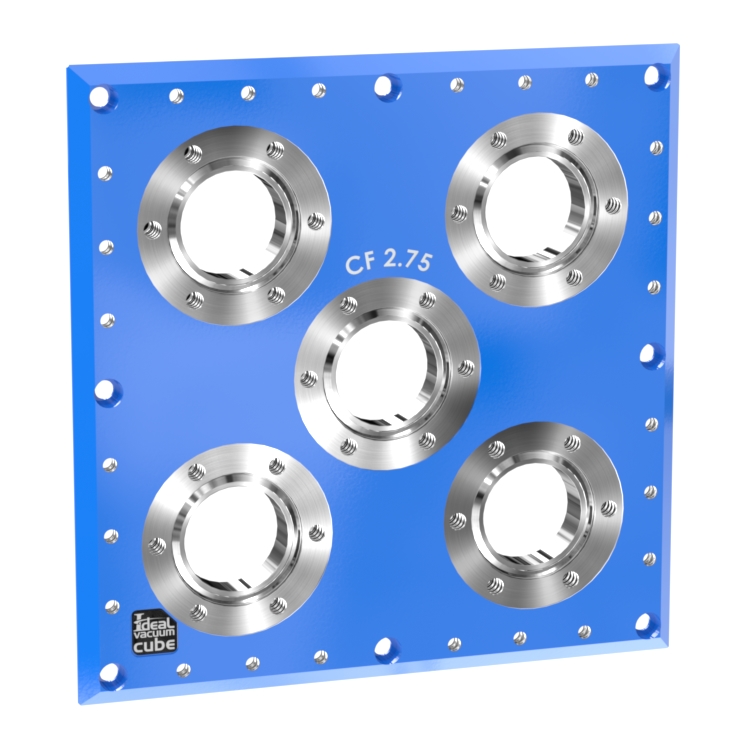

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with five CF 2.75" Conflat ports. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 1/4-28 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat ports each require six (6) 1/4-28 x 7/8" long, silver-plated, 12 point bolts (P104404). The CF ports are not compatible with metal gaskets. Use only Viton seals (P104341). Cube baseline vacuum is 1 x 10 Torr. Features:9 x 9 plate6061-T6 aluminumBlue powdercoatFive CF 2.75" Conflat ports with 1/4-28 UNF tapped holes

This is an Ideal Vacuum Cube 9 x 9 inch blank plate without ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This is the least expensive 9 x 9 Cube plate. It is often used for the bottom of Cubes, or any other Cube side where ports are not needed. Features:9 x 9 plate6061-T6 aluminumUncoated for bakeout to 150°CBlank plate without ports No internal optical breadboardMounts in any orientationDirectly mounts to 9 x 9 Cube frame only

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered CF 2.75" Conflat port. The plate is machined from 304L stainless steel and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This Conflat CF ported plate has 1/4-28 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires six (6) 1/4-28 x 7/8" long, silver-plated, 12 point bolts (P104404). The CF ports are not compatible with metal gaskets. Use only Viton seals (P104341). Cube baseline vacuum is 1 x 10 Torr. Features:9 x 9 plate304L stainless steel

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered CF 3.375" Conflat port. The plate is machined from 304L stainless steel and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. The plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104342). Cube baseline vacuum is 1 x 10 Torr. Features:9 x 9 plate304L stainless steel

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered CF 4.5" Conflat port. The plate is machined from 304L stainless steel and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. The plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104343). Cube baseline vacuum is 1 x 10 Torr. Features:9 x 9 plate304L stainless steel

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered CF 6.0" Conflat port. The plate is machined from 304L stainless steel and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. The plate's Conflat port requires This plate's Conflat port requires sixteen (16) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012251). The CF port is not compatible with metal gaskets. Use only Viton seals (P104345). Cube baseline vacuum is 1 x 10 Torr. Features:

This Ideal Vacuum Cube 9x9 inch vacuum chamber standard, low-iron, tempered glass viewing window plate assembly is designed to fit our 9x9x9 modular Cube chambers. The standard tempered glass window viewing plate assembly is a popular Cube option, commonly used for general, direct observation of roughing or high-vacuum chamber processes and can be used to facilitate optical alignments of chamber components, observe degassing of fluids, or used to help teach in-vacuo processes by direct observation. The glass material is 3/8" thick, tempered, low-iron, high-clarity glass. Surface quality and flatness is Q4 per ASTM 1036-06 and 1048-04. The low iron content of the glass results in it having a slight blueish tint. This economical glass is unsuitable for high power laser experiments.

This Ideal Vacuum Cube 9x9 inch vacuum chamber fused quartz viewing window plate assembly is designed to fit our 9x9x9 modular Cube chambers. The fused quartz window viewing plate assembly is often selected for experiments where improved optical clarity, extended wavelength transmissivity is required beyond the visible range, and where cost is a factor. Our fused quartz windows are manufactured with the highest quality natural quartz resulting in the highest levels of purity and lowest inclusion and bubble levels. Comparable to Heraeus TSC-3, these windows have improved transmittance, and a wider useful wavelength range than standard glass. Characteristics include low refractive index variations and low thermal expansion coefficient. Fused quartz is used for semiconductor applications such as plasma etch and deposition systems and recommended when low alkali and low aluminum content are specified. It is often used for transmissive optics in the visible and near-to-mid infrared wavelengths where a high laser damage threshold is required. Fused quartz has absorbtion bands in the 2600 to 2900 nm region, similar to fused silica but not as strong. It is unsuitable for UV work due to absorbtion in the 270 nm region.

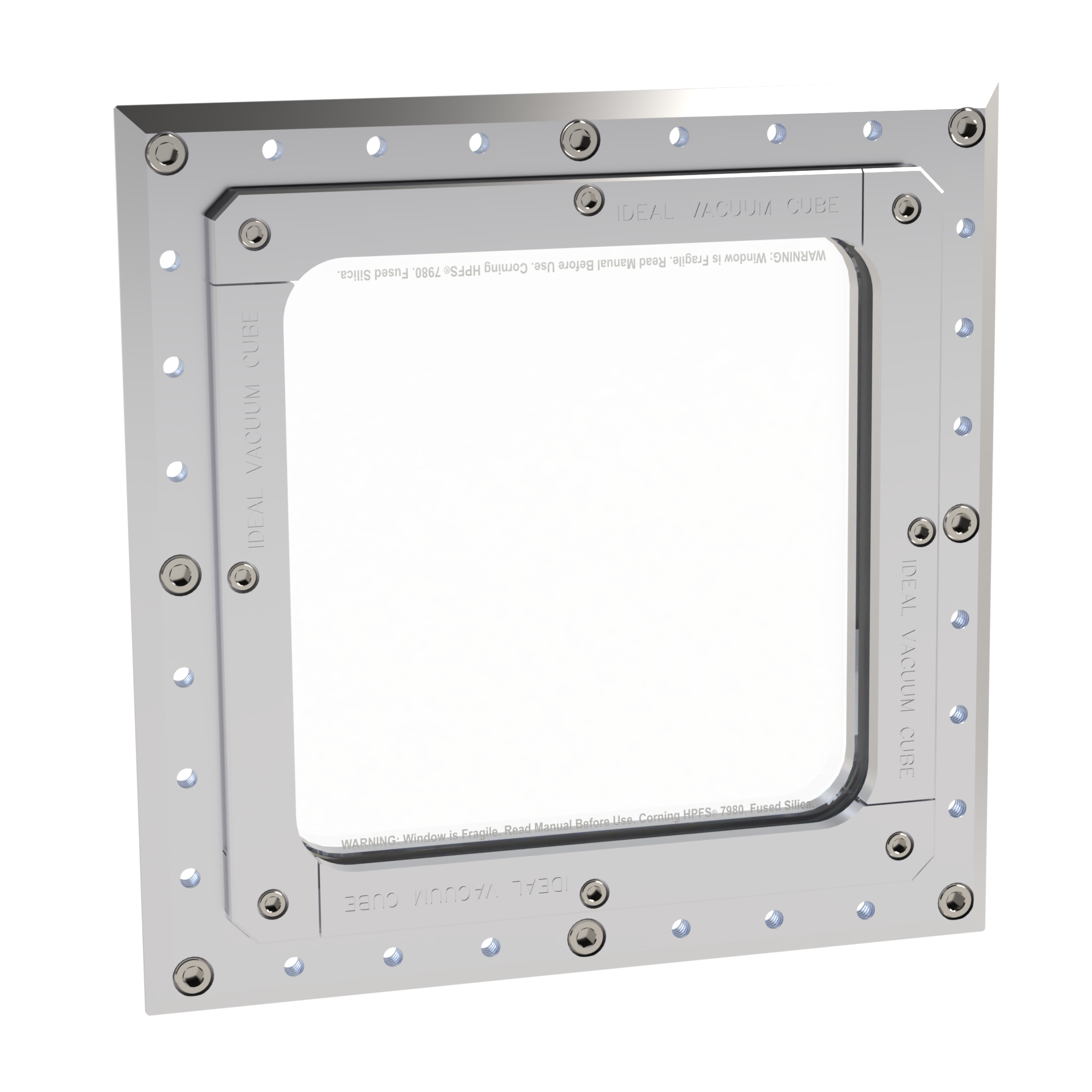

This Ideal Vacuum Cube 6x6 inch vacuum chamber fused silica viewing window plate assembly is designed to fit our 9x9x9 modular Cube chambers. The fused silica window viewing plate assembly is our premium viewing plate assembly and is selected for experiments where improved optical clarity and extended wavelength transmissivity, beyond the visible is required. Our high purity fused silica windows are ground and polished to optical grade on both sides with a total thickness variation (TTV) of

This is a tempered glass replacement window for the Ideal Vacuum Cube 9x9 Viewing Window AssembIy. Use it to replace a scratched, hazed or discolored glass window. It replaces the tempered glass viewing window pane used on our 9x9x9 Cubes. The standard tempered glass window is commonly used for general, direct observation of roughing or high-vacuum chamber processes and can be used to facilitate optical alignments of chamber components, observe degassing of fluids, or used to help teach in-vacuo processes by direct observation. The glass material is 3/8" thick, tempered, low-iron, high-clarity glass. Surface quality and flatness is Q4 per ASTM 1036-06 and 1048-04. The low iron content of the glass results in it having a slight blueish tint. This economical glass is unsuitable for high power laser experiments.

This is a fused quartz replacement window for the Ideal Vacuum Cube 6x6 Viewing Window AssembIy. Use it to replace or upgrade a scratched, hazed or discolored glass window. It replaces the viewing window pane used on our 9x9x9 Cubes. Our fused quartz windows are manufactured with the highest quality natural quartz resulting in the highest levels of purity and lowest inclusion and bubble levels. Comparable to Heraeus TSC-3, these windows have improved transmittance, and a wider useful wavelength range than standard glass. Characteristics include low refractive index variations and low thermal expansion coefficient. Fused quartz is used for semiconductor applications such as plasma etch and deposition systems and recommended when low alkali and low aluminum content are specified. It is often used for transmissive optics in the visible and near-to-mid infrared wavelengths where a high laser damage threshold is required. Fused quartz has absorbtion bands in the 2600 to 2900 nm region, similar to fused silica but not as strong. It is unsuitable for UV work due to absorbtion in the 270 nm region.

This is a fused silica replacement window for the Ideal Vacuum Cube 9x9 Viewing Window AssembIy. Use it to replace or upgrade a scratched, hazed or discolored glass window. It replaces the viewing window pane used on our 9x9x9 Cubes. Our high purity fused silica replacement windows are ground and polished to optical grade on both sides with a total thickness variation (TTV) of

This is an uncoated Ideal Vacuum Cube adapter plate that converts a 9 x 9 Cube frame opening to one centered 6 x 6 inch opening. The 6 x 6" opening accepts any 6 x 6 Cube plate, greatly expanding porting options for pumping and feedthroughs, or viewing options. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. Kit includes:9 x 9 to one centered 6 x 6 adapter plateOne Viton O-ring for 9 x 9 Cube Plate (P1010490)One Viton O-ring for 6 x 6 Cube plate (P107295)Twenty-four 1/4"-20 x 5/16" long SHCS mounting screws, P1013341 (includes 8 spares)Features:Allows a 6 x 6 plate to attach to a 9 x 9 frame side

This Ideal Vacuum Cube 9 x 9 inch heater plate will safely provide up to 140°C of uniformly distributed heat to the vacuum side of the plate surface, through a 120VAC 490W heating element. This thermal vacuum plate expands the capabilities of the Ideal Vacuum Cube whereby the Cube can be used as a Thermal Vacuum Chamber (TVAC). Applications include thermal stability testing, surface coating and implantation, and damage testing under thermal load. Thermal Vacuum Chambers are often used to replicate or simulate the extreme conditions of outer space and are frequently employed in the testing of spacecraft and aerospace parts or components under a simulated space environment, and control outgassing for a giving process. Please note that the maximum allowable temperature using Viton O-rings is 150°C.

This is a thermally isolated Ideal Vacuum Cube 9 x 9 inch TVAC plate with 3/8” OD vacuum isolated fluid tubes. This plate allows the vacuum side of the plate to be thermally controlled by circulating hot or cold fluids, including LN through its stainless steel tubes and internal channels. The operating temperature range of this plate is 200°C to -200°C (392°F to -328°F). This Cube plate allows the Ideal Vacuum Cube to be used as a thermal vacuum or thermal shock vacuum chamber. It can also function as a chilled trap for chemical and high boiling point liquids. Multiple TVAC plates may be mounted to a Cube and plumbed together to enhance temperature control capability.
