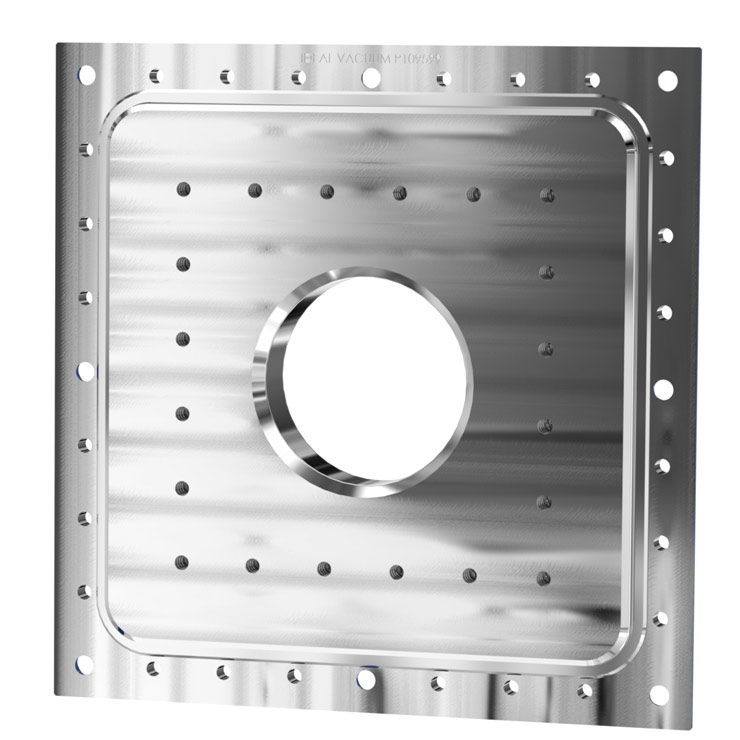

Ideal Vacuum Cube 9 x 9 Vacuum Chamber Plate With One ISO-F 63 Port


Ideal Vacuum Cube 9 x 9 Vacuum Chamber Plate With One ISO-F 63 Port.

This is an Ideal Vacuum Cube 9 x 9 inch plate with one centered ISO-F 63 port. The plate is machined from 6061-T6 aluminum and powder coated blue.

The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766).

Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.

Features:
  • 9 x 9 plate
  • 6061-T6 aluminum
  • Blue powdercoat
  • One ISO-F 63 port with 5/16-18 tapped mounting holes
  • Internal optical breadboard
  • Mounts in any orientation
Directly mounts to 9 x 9 Cube frame only



Press ESC to Close


The Ideal Vacuum CubeTM is a unique, modular, light weight, chamber system, capable of high vacuum to 1 x 10-7 Torr. The Cube system is conceived to enable creativity and design flexibility in vacuum chamber system construction and limited only by your imagination.

The core of an Ideal Vacuum Cube modular chamber system is the Cube frame, machined from a single block of 6061-T6 aluminum alloy and reinforced with stainless steel threaded inserts. Many basic frame configurations are available and multiple Cubes can be joined together to create a virtually unlimited variety of long or odd-shaped chamber shapes. The Cube’s light weight construction makes it easy to transport around the lab or mounted to an optical table.

Cube plates are mounted with screws to each side of the Cube frame and sealed using our patented Taper-SealTM design, which provides protection of vacuum sealing surfaces and O-rings from damage or contamination.


An extensive number of interchangeable Cube plates are available and single or multiple plates can be swapped easily when chamber reconfiguration is needed. Plates are available with single and multiple port KF, CF, and ISO flanged plates for connections and feedthroughs, viewing windows and doors, and a variety of specialty plates for thermal and optical experiments. Most plates include an optical breadboard with 1/4-20 mounting threads spaced on a 1” x 1” standard grid on the plate’s vacuum side for fastening hardware and test objects. Plates may also have mounting threads on the exterior side for mounting accessories. Plates are typically machined from aluminum and receive a blue powder-coated outside finish which makes them both attractive and durable.

The modular nature of the Ideal Vacuum Cube allows the designer to configure a chamber to their unique requirements and reconfigure it at any time – all without the cost, weight, time, and limitations of an application-specific welded chamber.

PDF Logo IVP Cube Brochure 2019 v2 LG.pdf

PDF Logo IVP Cube 6x6x6 User Manual.pdf

PDF Logo IVP Common Vacuum Fittings - Selection and Assembly Guide.pdf

PDF Logo IVP Cube Plate Installation Manual.pdf

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
