Ideal Vacuum Cube 6 x 6 x 6 in. Aluminum Vacuum Chamber Frame
Ideal Vacuum Cube 6 x 6 x 6 in. Aluminum Vacuum Chamber Frame.

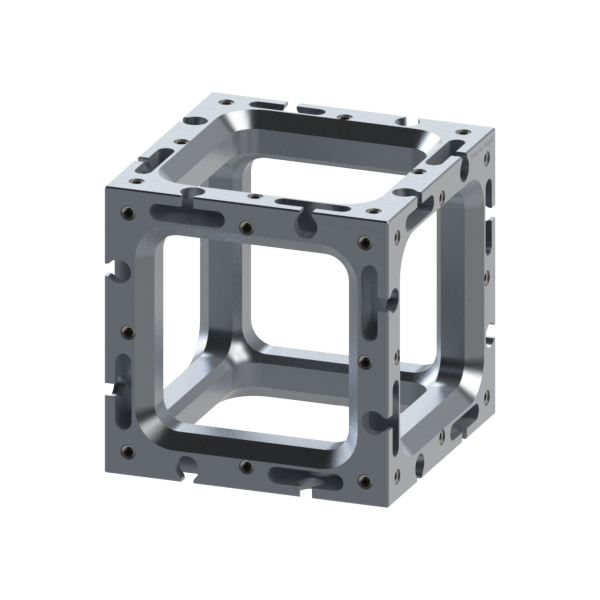

This is a 6 x 6 x 6 inch bare vacuum Cube frame, the core of an Ideal Vacuum Cube modular chamber. It is machined from a solid billet of 6061-T6 aluminum so there are no welds to leak or break. Inner frame dimensions are 4.1 x 4.1 x 4.1 inches.
A Cube plate, with or without ports, is mounted to each of the six frame sides with 1/4"-20 stainless steel screws. The frame has drilled and tapped holes which accept the mounting screws. Once all six plates are installed, the chamber is complete. The plates can be removed, replaced, or reused as needed to reconfigure the chamber to new requirements. Mounting holes are reinforced with stainless steel inserts so Cube plates can be swapped without fear of damaging the frame.
This frame allows a user to build a 6 x 6 x 6 modular Cube chamber from scratch. Please see our other listings for a variety of 6 x 6 x 6 in. preconfigured chamber development kits.
A complete 6 x 6 x 6 chamber requires:
Cube frame
6 x 6 x 6 Cube hardware kit (P107293)
Six Cube plates
Optional accessories including feet, viewing windows and doors, thermal, and optical plates
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.
Press ESC to Close
The Ideal Vacuum CubeTM is a unique, modular, light weight, chamber system, capable of high vacuum to 1 x 10-7 Torr. The Cube system is conceived to enable creativity and design flexibility in vacuum chamber system construction and limited only by your imagination.
The core of an Ideal Vacuum Cube modular chamber system is the Cube frame, machined from a single block of 6061-T6 aluminum alloy and reinforced with stainless steel threaded inserts. Many basic frame configurations are available and multiple Cubes can be joined together to create a virtually unlimited variety of long or odd-shaped chamber shapes. The Cube’s light weight aluminum construction makes it easy to transport around the lab or mounted to an optical table.
Cube plates are mounted with screws to each side of the Cube frame and sealed using our patented Taper-SealTM design, which provides protection of vacuum sealing surfaces and O-rings from damage or contamination.
An extensive number of interchangeable Cube plates are available and one or more plates can be swapped easily when chamber reconfiguration is needed. Plates are available with single and multiple port KF, CF, and ISO flanged plates for connections and feedthroughs, viewing windows and doors, and a variety of specialty plates for thermal and optical experiments. Most plates are machined from 6061-T6 aluminum (unless otherwise indicated) and include an optical breadboard with 1/4-20 mounting threads spaced on a 1” x 1” standard grid on the plate’s vacuum side for fastening hardware and test objects. Plates may also have mounting threads on the exterior side for mounting accessories. Plates are typically machined from aluminum and receive a blue powder-coated outside finish which makes them both attractive and durable.
The modular nature of the Ideal Vacuum Cube allows the designer to configure a chamber to their unique requirements and reconfigure it at any time – all without the cost, weight, time, and limitations of an application-specific welded chamber.
Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be
downloaded here:
