Ideal Vacuum Cube 12 x 12 inch Thermally Isolated TVAC Chamber Plate with Resistive Heating and Built-in Type-K Thermocouple
Ideal Vacuum Cube 12 x 12 inch Thermally Isolated TVAC Chamber Plate with Resistive Heating and Built-in Type-K Thermocouple.

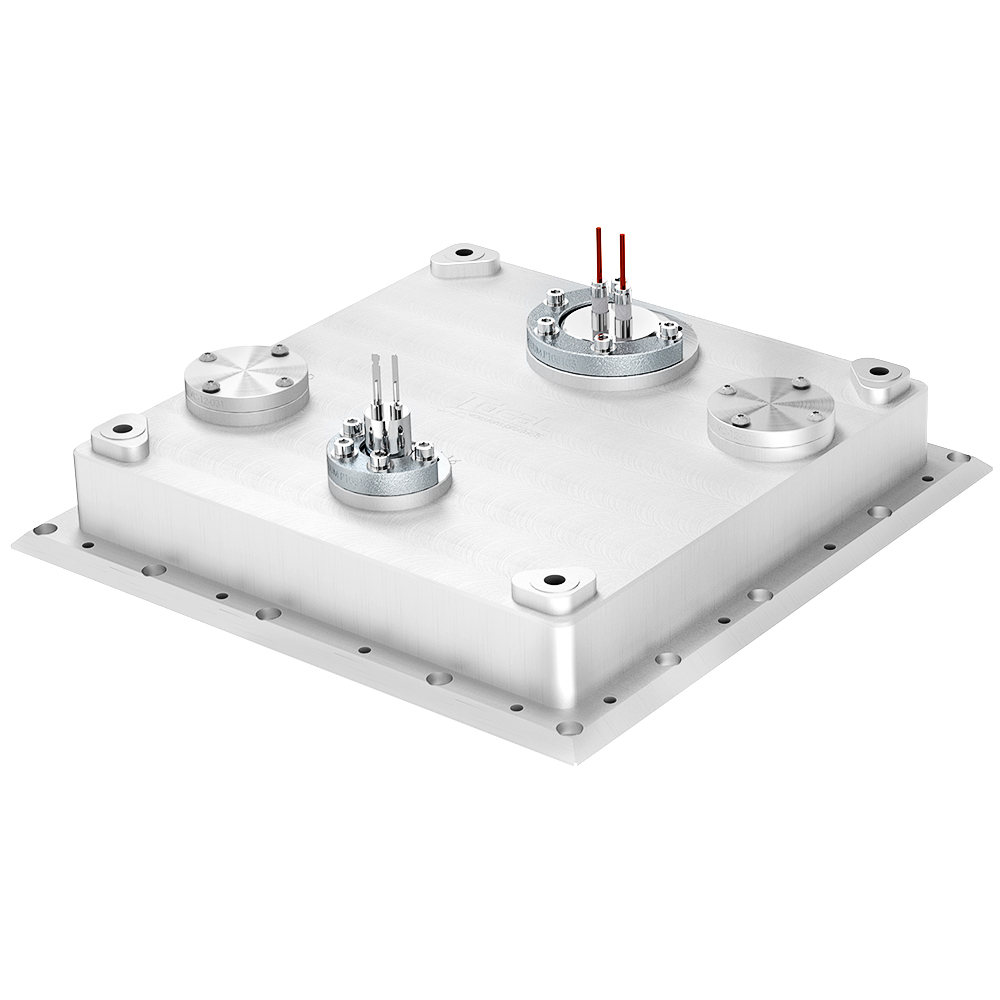

This is a thermally isolated Ideal Vacuum Cube 12 x 12 inch TVAC plate for high temperatures. The plate has embedded resistive heating elements for elevated temperatures. The heaters operate at 100-240 VAC. The operating temperature range of this plate is from ambient to 200°C (392°F). A Type-K thermocouple is mounted through a KF-16 port for logging temperature data or for a user supplied setpoint controller to use. The KF-40 port is used to connect the heating elements to an outboard controller, such as the Ideal Vacuum PID Plug & Play Heater Control System. This plate is uncoated and may be baked out to 150°C (the limit of the Viton O-ring).

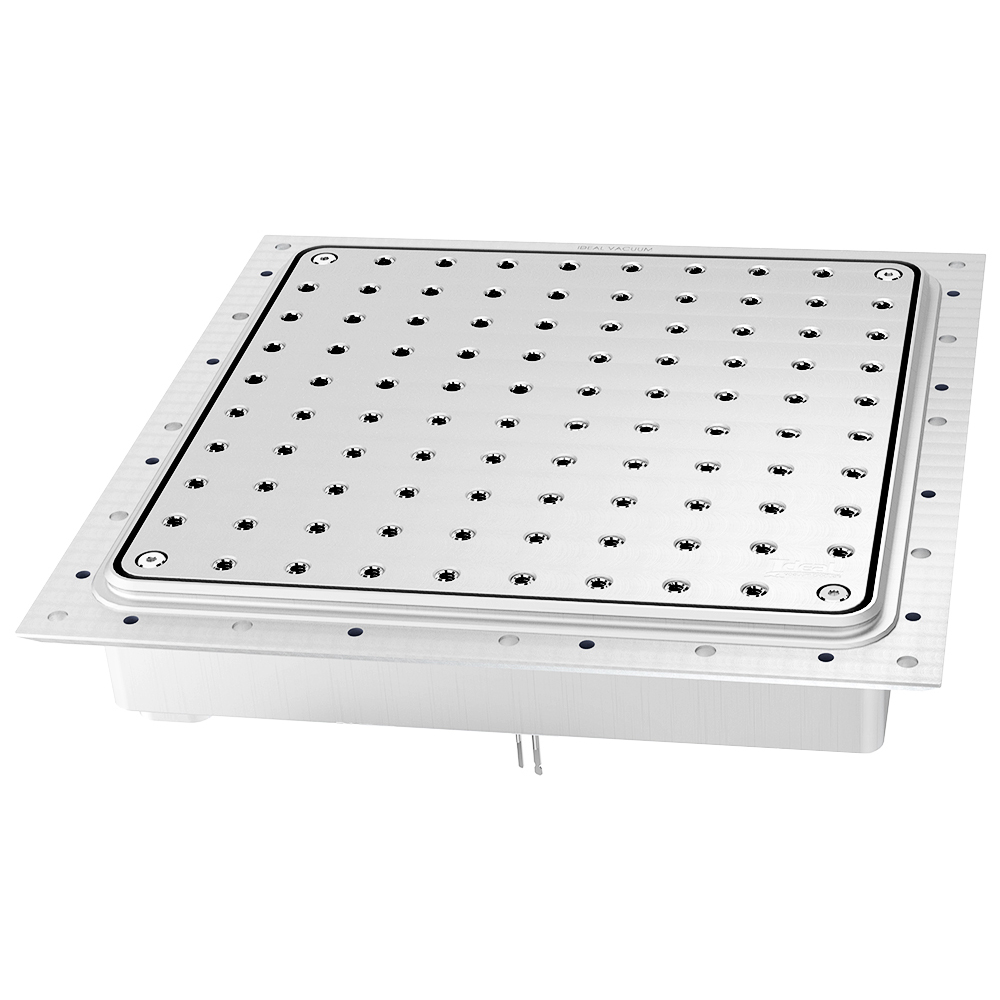

The core of the plate is made of 304L stainless steel and has an optical breadboard on the vacuum side with a 10.275" x 10.275" temperature-controlled area. The plate's thermally isolated core allows it to be operated between ambient and 200°C (392°F) without compromising vacuum seal integrity. The plate is designed to occupy minimal volume within the Cube envelope and may be mounted in any orientation.
Features:
12" x 12" plate size
Uncoated 6061-T6 aluminum plate
Built-in resistive heating elements
Operating temperature range ambient to 200°C (392°F).
Stainless steel vacuum isolated10.275" x 10.275" temperature-controlled core
Built-in Type-K thermocouple
Bakeout to 150°C
Internal optical breadboard
Mounts in any orientation
Directly mounts to frame size:
12 x 12 x 12
6 x 12 x 12 (on 12 x 12 side)
24 x 24 x 24
Swagelok-TM Swagelok Company
Press ESC to Close
The Ideal Vacuum CubeTM is a unique, modular, light weight, chamber system, capable of high vacuum to 1 x 10-7 Torr. The Cube system is conceived to enable creativity and design flexibility in vacuum chamber system construction and limited only by your imagination.
The core of an Ideal Vacuum Cube modular chamber system is the Cube frame, machined from a single block of 6061-T6 aluminum alloy and reinforced with stainless steel threaded inserts. Many basic frame configurations are available and multiple Cubes can be joined together to create a virtually unlimited variety of long or odd-shaped chamber shapes. The Cube’s light weight aluminum construction makes it easy to transport around the lab or mounted to an optical table.
Cube plates are mounted with screws to each side of the Cube frame and sealed using our patented Taper-SealTM design, which provides protection of vacuum sealing surfaces and O-rings from damage or contamination.
An extensive number of interchangeable Cube plates are available and one or more plates can be swapped easily when chamber reconfiguration is needed. Plates are available with single and multiple port KF, CF, and ISO flanged plates for connections and feedthroughs, viewing windows and doors, and a variety of specialty plates for thermal and optical experiments. Most plates are machined from 6061-T6 aluminum (unless otherwise indicated) and include an optical breadboard with 1/4-20 mounting threads spaced on a 1” x 1” standard grid on the plate’s vacuum side for fastening hardware and test objects. Plates may also have mounting threads on the exterior side for mounting accessories. Plates are typically machined from aluminum and receive a blue powder-coated outside finish which makes them both attractive and durable.
The modular nature of the Ideal Vacuum Cube allows the designer to configure a chamber to their unique requirements and reconfigure it at any time – all without the cost, weight, time, and limitations of an application-specific welded chamber.
