Ideal Vacuum Cube 12 x 12 TVAC Thermal Vacuum Chamber Heater Plate for up to 140 Degrees C


\
Ideal Vacuum Cube 12 x 12 TVAC Thermal Vacuum Chamber Heater Plate for up to 140 Degrees C.

This Ideal Vacuum Cube 12 x 12 inch heater plate will safely provide up to 140°C of uniformly distributed heat to the vacuum side of the plate surface, through a 120VAC 810W heating element. This thermal vacuum plate expands the capabilities of the Ideal Vacuum Cube whereby the Cube can be used as a Thermal Vacuum Chamber (TVAC). Applications include thermal stability testing, surface coating and implantation, and damage testing under thermal load. Thermal Vacuum Chambers are often used to replicate or simulate the extreme conditions of outer space and are frequently employed in the testing of spacecraft and aerospace parts or components under a simulated space environment, and control outgassing for a giving process. Please note that the maximum allowable temperature using Viton O-rings is 150°C.

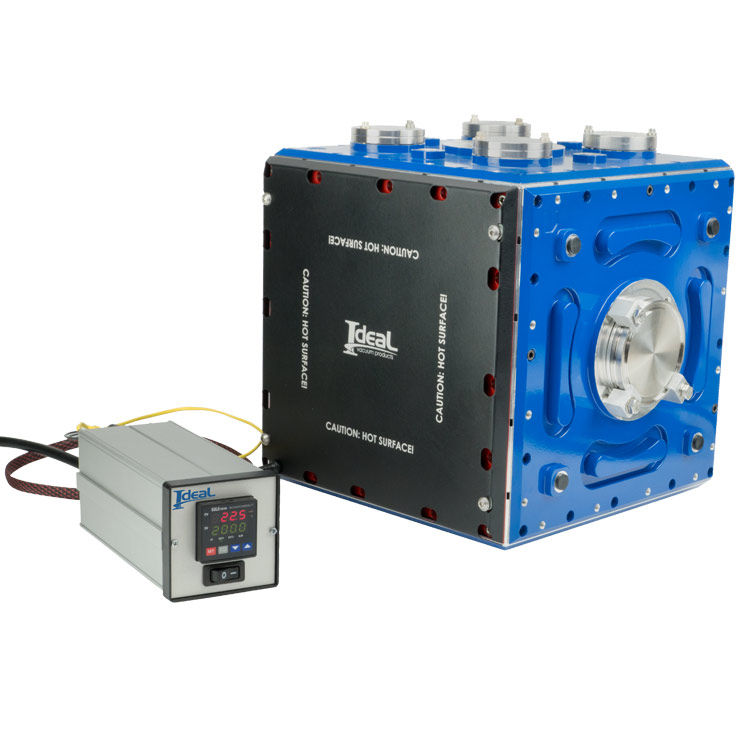

This heater plate has an integrated Type-K thermocouple, and works directly with our single zone PID Plug & Play Heater Control System, which is designed to accurately measure and control the temperature of our Cube heater plates. When a single Cube heater plate is used, and once the system has reached thermal equilibrium, the rest of the chamber will be approximately 10°C less than the heated plate itself. Multiple heater plates may be used (up to the heater control system's maximum power load) to help eliminate this temperature differential.

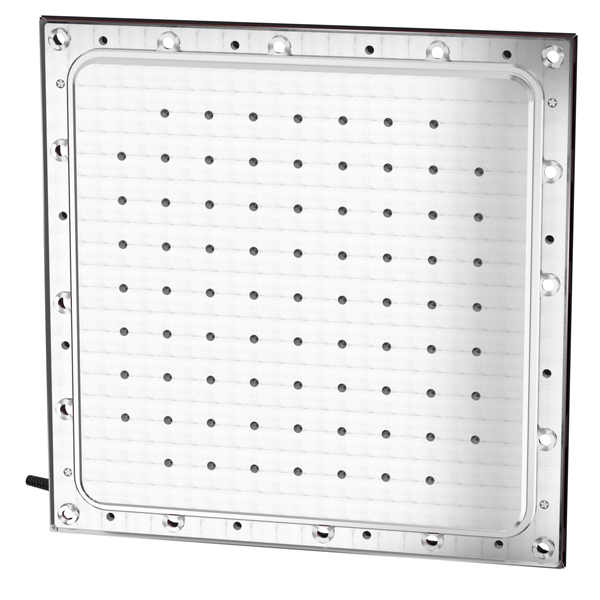

These Vacuum Cube heater plates are machined from 6061-T6 aluminum and powder coated red. The vacuum chamber side (back) of these heater plates have an optical breadboard for fixtures and test components. Temperature gradients due to conductive losses through the heater plate edges are kept to a minimum with integrated, machined stand-offs that minimize the contact surface between the plate and the Vacuum Cube frame. An aluminum anodized shield on the air side of the heater plate helps control convective losses due to ambient conditions (and helps protect users from direct contact with the heated plate).

As the plots below demonstrate, ramp-up time and maximum plate temperature is dependent upon the heater control system, number of heater plates, ambient operating conditions, and whether the vacuum cube is insulated.

Features:
  • 12 x 12 plate
  • 6061-T6 aluminum
  • Red powdercoat
  • Heats to 140°C, 120VAC, 810W
  • Anodized shield helps control convective losses and protect users from direct heater contact
  • Internal optical breadboard
  • Mounts in any orientation
  • Works with PID heater control system P107361
Directly mounts to frame size:
  • 12 x 12 x 12
  • 6x12x12 (on 12 x 12 side)
  • 24 x 24 x 24



Press ESC to Close


The Ideal Vacuum CubeTM is a unique, modular, light weight, chamber system, capable of high vacuum to 1 x 10-7 Torr. The Cube system is conceived to enable creativity and design flexibility in vacuum chamber system construction and limited only by your imagination.

The core of an Ideal Vacuum Cube modular chamber system is the Cube frame, machined from a single block of 6061-T6 aluminum alloy and reinforced with stainless steel threaded inserts. Many basic frame configurations are available and multiple Cubes can be joined together to create a virtually unlimited variety of long or odd-shaped chamber shapes. The Cube’s light weight construction makes it easy to transport around the lab or mounted to an optical table.

Cube plates are mounted with screws to each side of the Cube frame and sealed using our patented Taper-SealTM design, which provides protection of vacuum sealing surfaces and O-rings from damage or contamination.


An extensive number of interchangeable Cube plates are available and single or multiple plates can be swapped easily when chamber reconfiguration is needed. Plates are available with single and multiple port KF, CF, and ISO flanged plates for connections and feedthroughs, viewing windows and doors, and a variety of specialty plates for thermal and optical experiments. Most plates include an optical breadboard with 1/4-20 mounting threads spaced on a 1” x 1” standard grid on the plate’s vacuum side for fastening hardware and test objects. Plates may also have mounting threads on the exterior side for mounting accessories. Plates are typically machined from aluminum and receive a blue powder-coated outside finish which makes them both attractive and durable.

The modular nature of the Ideal Vacuum Cube allows the designer to configure a chamber to their unique requirements and reconfigure it at any time – all without the cost, weight, time, and limitations of an application-specific welded chamber.

PDF Logo IVP Cube Plate Installation Manual.pdf

PDF Logo IVP Cube Brochure 2019 v2 LG.pdf

PDF Logo IVP Cube 6x6x6 User Manual.pdf

PDF Logo PID Heater Controller P107361 User Manual with Easy Start Instructions v1.2.0.0.pdf

PDF Logo Automation Direct Solo 4848 Temperature Controller PID Quick Start Guide.pdf

PDF Logo Automation Direct Solo 4848 Temperature Controller PID User Manual.pdf

PDF Logo IVP Common Vacuum Fittings - Selection and Assembly Guide.pdf

PDF Logo Chamber Bakeout and Degassing Application Notes.pdf

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
