The MKS Granville Phillips 307 Vacuum Gauge Controller (VGC) measures pressures from 5 x 10 Torr (6.6 x 10 mbar or 6.6 x 10 Pa) to atmosphere, depending on (PCB) printed circuit board optional modules and transducers used. The New 307 (VGC) for sale in its simplest form as pictured runs two ionization gauges (IG) Glass Tubulated or Nude (NOT UHV) one ion gauge at a time, in the range of 2 X 10 Torr. It is a left mount, side by side with power supply for 19 inch rack and comes with AC Power Cord and Power Supply/Control Unit Power Cable. With OPTIONAL Modules the 307 Vacuum Gauge Controller can operate two ion gauges (IG) sequentially, along with two Convectron gauges (CG) or two thermocouple gauges (TC) simultaneously. Pressure readout is via 3 front panel displays, analog output, and available computer interface. The 307 (VGC) is a modular instrument which can be easily customized to fit most user's exact needs.

These MKS Granville Phillips 274 Iridium glass ion gauge tubes have a 3/4 inch OD vacuum connection Pyrex Glass port and an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The MKS Granville Phillips thoria coated iridium (IR) filament configuration can be used in any clean application, but is particularly practical in potentially oxygen rich environments. All IR filaments have a thoria coating, which increases electron emission to approximately the same level as tungsten filaments. Iridium filaments, however, can be strongly degraded by metallic or organic contaminants, resulting in poor accuracy (filaments are easily poisoned by oil back-streaming from diffusion or mechanical vacuum pumps). Thoria coated IR is very resistant to oxidation, and can even tolerate brief exposure to atmosphere during operation and will not damage or shorten the filament life.

This MKS Granville Phillips Iridium glass ion gauge tube is a test gauge vacuum simulator, pumped down and pinched off at 1 X 10 or lower. The MKS Granville Phillips thoria coated iridium (IR) filament configuration can be used in any clean application, but is particularly practical in potentially oxygen rich environments. All IR filaments have a thoria coating, which increases electron emission to approximately the same level as tungsten filaments. Iridium filaments, however, can be strongly degraded by metallic or organic contaminants, resulting in poor accuracy (filaments are easily poisoned by oil back-streaming from diffusion or mechanical vacuum pumps). Thoria coated IR is very resistant to oxidation, and can even tolerate brief exposure to atmosphere during operation and will not damage or shorten the filament life.

These MKS Granville Phillips Iridium glass ion gauge tubes have a 3/4 inch Kovar Metal Inlet OD vacuum connection port and an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The MKS Granville Phillips thoria coated iridium (IR) filament configuration can be used in any clean application, but is particularly practical in potentially oxygen rich environments. All IR filaments have a thoria coating, which increases electron emission to approximately the same level as tungsten filaments. Iridium filaments, however, can be strongly degraded by metallic or organic contaminants, resulting in poor accuracy (filaments are easily poisoned by oil back-streaming from diffusion or mechanical vacuum pumps). Thoria coated IR is very resistant to oxidation, and can even tolerate brief exposure to atmosphere during operation and will not damage or shorten the filament life.

These MKS Granville Phillips Iridium glass ion gauge tubes have a 1 inch Kovar Metal Inlet OD vacuum connection port and an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The MKS Granville Phillips thoria coated iridium (IR) filament configuration can be used in any clean application, but is particularly practical in potentially oxygen rich environments. All IR filaments have a thoria coating, which increases electron emission to approximately the same level as tungsten filaments. Iridium filaments, however, can be strongly degraded by metallic or organic contaminants, resulting in poor accuracy (filaments are easily poisoned by oil back-streaming from diffusion or mechanical vacuum pumps). Thoria coated IR is very resistant to oxidation, and can even tolerate brief exposure to atmosphere during operation and will not damage or shorten the filament life.

These MKS Granville Phillips Iridium glass ion gauge tubes have a KF25 ISO NW25 Inlet, and a 3/4 inch vacuum connection port with an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The MKS Granville Phillips thoria coated iridium (IR) filament configuration can be used in any clean application, but is particularly practical in potentially oxygen rich environments. All IR filaments have a thoria coating, which increases electron emission to approximately the same level as tungsten filaments. Iridium filaments, however, can be strongly degraded by metallic or organic contaminants, resulting in poor accuracy (filaments are easily poisoned by oil back-streaming from diffusion or mechanical vacuum pumps). Thoria coated IR is very resistant to oxidation, and can even tolerate brief exposure to atmosphere during operation and will not damage or shorten the filament life.

These MKS Granville Phillips Iridium glass ion gauge tubes have a 15 mm OD inlet, vacuum connection port with an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The MKS Granville Phillips thoria coated iridium (IR) filament configuration can be used in any clean application, but is particularly practical in potentially oxygen rich environments. All IR filaments have a thoria coating, which increases electron emission to approximately the same level as tungsten filaments. Iridium filaments, however, can be strongly degraded by metallic or organic contaminants, resulting in poor accuracy (filaments are easily poisoned by oil back-streaming from diffusion or mechanical vacuum pumps). Thoria coated IR is very resistant to oxidation, and can even tolerate brief exposure to atmosphere during operation and will not damage or shorten the filament life.

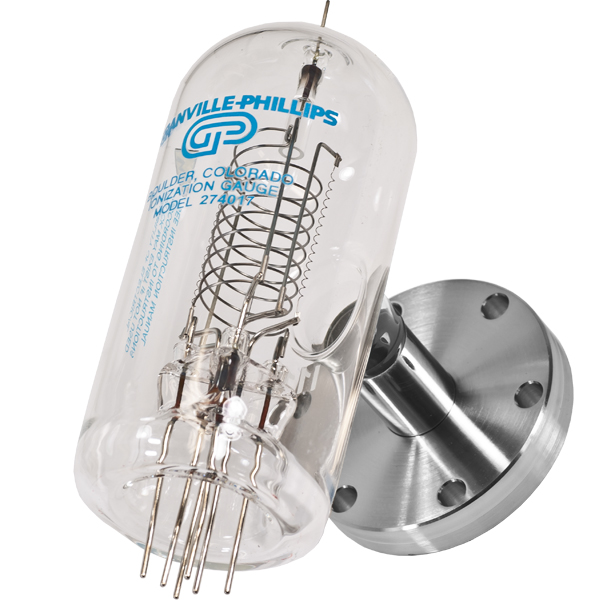

These MKS Granville Phillips Iridium glass ion gauge tubes have a 2.75 inch CF Conflat Inlet, and a 3/4 inch vacuum connection port with an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The MKS Granville Phillips thoria coated iridium (IR) filament configuration can be used in any clean application, but is particularly practical in potentially oxygen rich environments. All IR filaments have a thoria coating, which increases electron emission to approximately the same level as tungsten filaments. Iridium filaments, however, can be strongly degraded by metallic or organic contaminants, resulting in poor accuracy (filaments are easily poisoned by oil back-streaming from diffusion or mechanical vacuum pumps). Thoria coated IR is very resistant to oxidation, and can even tolerate brief exposure to atmosphere during operation and will not damage or shorten the filament life.

These MKS Granville Phillips Iridium glass ion gauge tubes have a 2.75 inch CF Conflat Inlet, and a 1 inch vacuum connection port with an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The MKS Granville Phillips thoria coated iridium (IR) filament configuration can be used in any clean application, but is particularly practical in potentially oxygen rich environments. All IR filaments have a thoria coating, which increases electron emission to approximately the same level as tungsten filaments. Iridium filaments, however, can be strongly degraded by metallic or organic contaminants, resulting in poor accuracy (filaments are easily poisoned by oil back-streaming from diffusion or mechanical vacuum pumps). Thoria coated IR is very resistant to oxidation, and can even tolerate brief exposure to atmosphere during operation and will not damage or shorten the filament life.

These dual tungsten glass ion gauge tubes have a 3/4 inch Pyrex port vacuum connection and an operating range from 1x10 to 2x10Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The hot tungsten filaments react with oxygen to rapidly form tungsten oxide and therefore poor vacuum can rapidly cause catastrophic oxidation of hot tungsten components. They are most practical in environments having little risk of oxygen exposure. However, tungsten filamets are suited for applications where backstreaming of oil from diffusion pumps is heavy.

These dual tungsten glass ion gauge tubes have a 1 inch Pyrex port vacuum connection and an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The hot tungsten filaments react with oxygen to rapidly form tungsten oxide and therefore poor vacuum can rapidly cause catastrophic oxidation of hot tungsten components. They are most practical in environments having little risk of oxygen exposure. However, tungsten filamets are suited for applications where backstreaming of oil from diffusion pumps is heavy.

These dual tungsten glass ion gauge tubes have a 3/4 inch Kovar Metal port vacuum connection and an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The hot tungsten filaments react with oxygen to rapidly form tungsten oxide and therefore poor vacuum can rapidly cause catastrophic oxidation of hot tungsten components. They are most practical in environments having little risk of oxygen exposure. However, tungsten filamets are suited for applications where backstreaming of oil from diffusion pumps is heavy.

These dual tungsten glass ion gauge tubes have a 1 inch Kovar Metal port vacuum connection and an operating range from 1x10 to 2x10. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The hot tungsten filaments react with oxygen to rapidly form tungsten oxide and therefore poor vacuum can rapidly cause catastrophic oxidation of hot tungsten components. They are most practical in environments having little risk of oxygen exposure. However, tungsten filamets are suited for applications where backstreaming of oil from diffusion pumps is heavy.

These dual tungsten glass ion gauge tubes have a 15 mm Pyrex port vacuum connection and an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The hot tungsten filaments react with oxygen to rapidly form tungsten oxide and therefore poor vacuum can rapidly cause catastrophic oxidation of hot tungsten components. They are most practical in environments having little risk of oxygen exposure. However, tungsten filamets are suited for applications where backstreaming of oil from diffusion pumps is heavy.

These dual tungsten glass ion gauge tubes have a 3/4 inch OD, 2.75 CF Conflat port vacuum connection and an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The hot tungsten filaments react with oxygen to rapidly form tungsten oxide and therefore poor vacuum can rapidly cause catastrophic oxidation of hot tungsten components. They are most practical in environments having little risk of oxygen exposure. However, tungsten filamets are suited for applications where backstreaming of oil from diffusion pumps is heavy.

These dual tungsten glass ion gauge tubes have a 1 inch OD, 2.75 CF Conflat port vacuum connection and an operating range from 1x10 to 2x10 Torr. These ion gauge tubes are compatible with most modern hot cathode ion gauge tubes. They have a sensitivity of 10 Torr-1 and standard operating voltages (collector 0 VDC, Grid +180 VDC, filament -30 VDC with 5 VAC). The hot tungsten filaments react with oxygen to rapidly form tungsten oxide and therefore poor vacuum can rapidly cause catastrophic oxidation of hot tungsten components. They are most practical in environments having little risk of oxygen exposure. However, tungsten filamets are suited for applications where backstreaming of oil from diffusion pumps is heavy.

These Granville Phillips 307 ion gauge cables are design for tubulated glass ion gauges. These cables can be used when remote mounting of the 307 power supply. These cables are 10 ft (3 meters) long.

These MKS Granville Phillips 307 & 330 ion gauge controller cables connect the MKS Granville Phillips 307 or 330 controller to a single glass tube ion guage. These cable are 10ft long. Ion gauge controllers, ion gauge tubes, and thermocouple sensors are also available but sold separately.

These MKS Granville Phillips 307 ion gauge cables are 25 ft. long and are design for tubulated glass ion gauges. These cables can be used when remote mounting of the 307 power supply.

The MKS Graville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, Thoria-Coated Iridium Filament, KF40 NW40, 1×10 to 2×10 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C.The Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10Torr, with reduced performance at pressures lower than 5x10

The MKS Granville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, 1×10 to 2×10 Torr Pressure Range, Thoria-Coated Iridium Filament, KF40 NW40 Flange, Maximum Bakeout Temperature: 450 °C.The MKS Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The MKS Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10

The MKS Graville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, Thoria-Coated Iridium Filament, 2.75 in. CF Flange, Pin Guard with Connector Locking Ring, 1×10 to 2×10 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C. The MKS Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The MKS Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10

The MKS Granville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, Thoria-Coated Iridium Filament, 2.75 ConFlat Flange, 1×10 to 2×10 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C.The MKS Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The MKS Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10Torr, with reduced performance at pressures lower than 5x10

The MKS Granville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, single Thoria-Coated Iridium Filament, 2.75 CF Flange, 1×10 to 2×10 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C.The MKS Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The MKS Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10

The MKS Granville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, dual Thoria-Coated Iridium Filament, 2.75 CF Flange, Pin Guard Connector with Locking Ring, 1×10 to 2×10 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C. The MKS Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The MKS Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10

This is a Ion Gauge Replacement Dual Thoria Coated Iridium Filament Kit for the MKS Granville Phillips 274 Nude Dual Thoria Coated Iridium Filament Ion Gauges (electron bombardment degas only). This is a Filament Kit ONLY, allen wrench included. Ion Nude Gauges and Controllers sold separately on this website. Fits the Following MKS Granville Phillips 274 Series Dual Thoria Coated Iridium Filament Nude Ion Gauges: • NW40 KF40 flange, pin guard locking strain relief, PN: 274058 • 2.75 inch CF Conflat (NW35CF) non-rotatable, PN: 274023 • 2.75 inch CF Conflat (NW35CF) non-rotatable, pin guard locking strain relief, PN: 274042

This is a Ion Gauge Replacement Single Thoria Coated Iridium Filament Kit for the MKS Granville Phillips 274 Nude Single Thoria Coated Iridium Filament Ion Gauges (resistive or electron bombardment degas). This is a Filament Kit ONLY, allen wrench included. Ion Nude Gauges and Controllers sold separately on this website. Fits the Following MKS Granville Phillips 274 Series Single Thoria Coated Iridium Filament Nude Ion Gauges: • NW40 KF40 flange, pin guard locking strain relief, PN: 274053 • 2.75 inch CF Conflat (NW35CF) non-rotatable, PN: 274028 • 2.75 inch CF Conflat (NW35CF) non-rotatable, pin guard locking strain relief, PN: 274043

The MKS Granville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, Dual Tungsten Filament, KF40 NW40 Flange, 1×10 to 2×10 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C.The MKS Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The MKS Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10Torr, with reduced performance at pressures lower than 5x10

The MKS Granville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, Dual Tungsten Filament, Electron Bombardment Degas, 2.75 CF Flange, 1×10 to 2×10 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C.The MKS Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The MKS Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10

The MKS Granville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, Dual Tungsten Filament, KF40 NW40 Flange, Pin Guard Connector with Locking Ring, 1×10to 2×10 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C.The MKS Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The MKS Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10

The MKS Granville Phillips 274 Nude Bayard-Alpert Ionization Gauge is a rugged, open gauge with broad-range operating pressure abilities, Dual Tungsten Filament, 2.75 ConFlat Flange with locking ring and pin guard connector, 1×10 to 2×10 Torr Pressure Range, Maximum Bakeout Temperature: 450 °C.The MKS Granville Phillips 274 Ionization Gauge, with an x-ray limit of 2x10 Torr, provides reliable pressure measurement from 1 mTorr down to 2x10 Torr, with reduced performance at pressures lower than 2x10 Torr. The MKS Granville Phillips 274 utilizes an extremely thin collector which lowers its x-ray limit to 5x10 Torr. As a result, it can measure pressure from 1m Torr down to 5x10

This is a Ion Gauge Replacement Tungsten Filament Kit for the MKS Granville Phillips 274 Nude dual tungsten Ion Gauges (electron bombardment degas only). This is a Filament Kit ONLY, allen wrench included. Ion Nude Gauges and Controllers sold separately on this website. Fits the Following MKS Granville Phillips 274 Series Dual Tungsten Filament Nude Ion Gauges: • NW40 KF40 flange, PN: 274050 • NW40 KF40 flange, pin guard locking strain relief, PN: 274057 • 2.75 inch CF Conflat (NW35CF) non-rotatable, PN: 274022 • 2.75 inch CF Conflat (NW35CF) non-rotatable, pin guard locking strain relief, PN: 274041

This is a MKS Granville Phillips 307 Vacuum Gauge Controller Cable for Nude Ion Gauges with Pin Guard/Locking Strain Relief for Electron Bombardment Degas - Cable For Remote Mounting Of Power Supply, 10 Ft (3 meters).

This is a MKS Granville Phillips 307, 330, 340 Ion Gauge Controller to Nude Gauge Cable wtih pin guard & locking strain relief, for side by side mounting, 10 ft. Long.

These MKS Granville Phillips 307 ion gauge controller cable is designed for nude ion gauges. These cables have push-on pins for electron bombardment degas. These cables allow for remote mounting of the 307 power supply, are 10 feet long (3 meters).

These MKS Granville Phillips 307, 330, 340 ion gauge controller cables connect the MKS Granville Phillips 307, 330, 340 controllers to a single nude ion guage. These cables are 10ft long. Ion gauge controllers, ion gauge tubes, and thermocouple sensors are also available but sold separately.

These MKS Granville Phillips 307, 330, 340 ion gauge controller cables connect the MKS Granville Phillips 307, 330, 340 controllers to a single nude ion guage. These cables are 25 ft long. Ion gauge controllers, ion gauge tubes, and thermocouple sensors are also available but sold separately.

This is a MKS Granville Phillips Dual Convectron Gauge PCB Printed Circuit Board Card (module) for MKS Granville Phillips 307 Vacuum Gauge Controller. Permits pressure measurements from 1 x 10 to 990 Torr (N2 equivalent) from two MKS Granville-Phillips Series 275 Convectron Gauges simultaneously. Two channel (A/B) modules allow for automatic turn-on and shut-off of ion gauges based on Convectron pressure. Also provides analog output of each indicated pressure. For Dual Convectron Card (module) installation procedures see page 17-26 of instruction manual. For specs, procedures for use and set up of the module, see Chapter 3 of the instruction manual. This is the Dual Convectron Card Module ONLY, MKS Granville Phillips 307 Controller, Cables and Accessories sold separately on this website.

The 275 MKS Granville Phillips convectron pressure measurement gauge tube sensor is the industry standard convection-enhanced Pirani gauge. The MKS Granville Phillips 275 measures vacuum pressure from atmosphere to 1x10 Torr and are ideal for roughing and foreline pressure measurement. It provides reliable fast response measurement, in milliseconds rather than seconds as in the case with thermocouple-type gauges. The high accuracy of the MKS Granville Phillips 275 Convectron vacuum gauge sensor and repeatablilty help insure that processes start at the desired pressure time-after-time. However, they are sensitive to the chemical composition of the gases being measured and are termed a relative pressure measurement method, that is, they determine the pressure indirectly from the thermal conductivity property of the gas medium. (MKS Granville Phillips 375 Convectron Controller shown in photographs is avaliable but not included at list price).

The 275 MKS Granville Phillips convectron pressure measurement gauge tube sensor is the industry standard convection-enhanced Pirani gauge. The MKS Granville Phillips 275 measures vacuum pressure from atmosphere to 1x10 Torr and are ideal for roughing and foreline pressure measurement. It provides reliable fast response measurement, in milliseconds rather than seconds as in the case with thermocouple-type gauges. The high accuracy of the MKS Granville Phillips 275 Convectron vacuum gauge sensor and repeatablilty help insure that processes start at the desired pressure time-after-time. However, they are sensitive to the chemical composition of the gases being measured and are termed a relative pressure measurement method, that is, they determine the pressure indirectly from the thermal conductivity property of the gas medium. (MKS Granville Phillips 375 Convectron Controller is replaced by the MKS Granville Phillips 475, not included).

The 275 MKS Granville Phillips convectron pressure measurement gauge tube sensor is the industry standard convection-enhanced Pirani gauge. The MKS Granville Phillips 275 measures vacuum pressure from atmosphere to 1x10 Torr and are ideal for roughing and foreline pressure measurement. It provides reliable fast response measurement, in milliseconds rather than seconds as in the case with thermocouple-type gauges. The high accuracy of the MKS Granville Phillips 275 Convectron vacuum gauge sensor and repeatablilty help insure that processes start at the desired pressure time-after-time. However, they are sensitive to the chemical composition of the gases being measured and are termed a relative pressure measurement method, that is, they determine the pressure indirectly from the thermal conductivity property of the gas medium. (MKS Granville Phillips 375 Convectron Controller shown in photographs is avaliable but not included at list price).

The 275 MKS Granville Phillips convectron pressure measurement gauge tube sensor is the industry standard convection-enhanced Pirani gauge. The MKS Granville Phillips 275 measures vacuum pressure from atmosphere to 1x10 Torr and are ideal for roughing and foreline pressure measurement. It provides reliable fast response measurement, in milliseconds rather than seconds as in the case with thermocouple-type gauges. The high accuracy of the MKS Granville Phillips 275 Convectron vacuum gauge sensor and repeatablilty help insure that processes start at the desired pressure time-after-time. However, they are sensitive to the chemical composition of the gases being measured and are termed a relative pressure measurement method, that is, they determine the pressure indirectly from the thermal conductivity property of the gas medium. (MKS Granville Phillips 375 Convectron Controller shown in photographs is not avaliable and is replaced with the MKS Granville Phillips 475).

The 275 MKS Granville Phillips convectron pressure measurement gauge tube sensor is the industry standard convection-enhanced Pirani gauge. The MKS Granville Phillips 275 measures vacuum pressure from atmosphere to 1x10 Torr and are ideal for roughing and foreline pressure measurement. It provides reliable fast response measurement, in milliseconds rather than seconds as in the case with thermocouple-type gauges. The high accuracy of the MKS Granville Phillips 275 Convectron vacuum gauge sensor and repeatablilty help insure that processes start at the desired pressure time-after-time. However, they are sensitive to the chemical composition of the gases being measured and are termed a relative pressure measurement method, that is, they determine the pressure indirectly from the thermal conductivity property of the gas medium. (MKS Granville Phillips 375 Convectron Controller shown in photographs is avaliable but not included at list price).

The 275 MKS Granville Phillips convectron pressure measurement gauge tube sensor is the industry standard convection-enhanced Pirani gauge. The MKS Granville Phillips 275 measures vacuum pressure from atmosphere to 1x10 Torr and are ideal for roughing and foreline pressure measurement. It provides reliable fast response measurement, in milliseconds rather than seconds as in the case with thermocouple-type gauges. The high accuracy of the MKS Granville Phillips 275 Convectron vacuum gauge sensor and repeatablilty help insure that processes start at the desired pressure time-after-time. However, they are sensitive to the chemical composition of the gases being measured and are termed a relative pressure measurement method, that is, they determine the pressure indirectly from the thermal conductivity property of the gas medium. (MKS Granville Phillips 375 Convectron Controller shown in photographs is avaliable but not included at list price).

The 275 MKS Granville Phillips convectron pressure measurement gauge tube sensor is the industry standard convection-enhanced Pirani gauge. The MKS Granville Phillips 275 measures vacuum pressure from atmosphere to 1x10 Torr and are ideal for roughing and foreline pressure measurement. It provides reliable fast response measurement, in milliseconds rather than seconds as in the case with thermocouple-type gauges. The high accuracy of the MKS Granville Phillips 275 Convectron vacuum gauge sensor and repeatablilty help insure that processes start at the desired pressure time-after-time. However, they are sensitive to the chemical composition of the gases being measured and are termed a relative pressure measurement method, that is, they determine the pressure indirectly from the thermal conductivity property of the gas medium. (MKS Granville Phillips 375 Convectron Controller shown in photographs is avaliable but not included at list price).

The 275 MKS Granville Phillips convectron pressure measurement gauge tube sensor is the industry standard convection-enhanced Pirani gauge. The MKS Granville Phillips 275 measures vacuum pressure from atmosphere to 1x10 Torr and are ideal for roughing and foreline pressure measurement. It provides reliable fast response measurement, in milliseconds rather than seconds as in the case with thermocouple-type gauges. The high accuracy of the MKS Granville Phillips 275 Convectron vacuum gauge sensor and repeatablilty help insure that processes start at the desired pressure time-after-time. However, they are sensitive to the chemical composition of the gases being measured and are termed a relative pressure measurement method, that is, they determine the pressure indirectly from the thermal conductivity property of the gas medium. (MKS Granville Phillips 375 Convectron Controller shown in photographs is avaliable but not included at list price).

These ion gauge cables connect the MKS Granville Phillips 303, 307, 316, 333, 340, 350, 358 & 360 ion gauge controllers to two MKS Granville Phillips 275 convectron gauge tubes. These cable are 10ft long and are replacements for the MKS Granville Phillips part number 303040-10. Ion gauge controllers, ion gauge tubes, and convectron sensors are also available but sold separately.

These MKS Granville Phillips Convectron & capacitance diaphragm gauge cables work with the MKS Granville Phillips 307 vacuum gauge controller. These are a dual gauge cable, connecting the MKS Granville Phillips 307 controller to one 275 Convectron gauge and one capacitance diaphragm gauge. The MKS Granville Phillips 307 controller needs to have the correct Convectron & capacitance diaphragm card installed (cards also sold on this web site).

This is a RS-232 Computer Interface Card Module. The RS-232 Interface Module for the 307 Vacuum Gauge Controller allows data output to, and ion gauge control by, a host computer. Output is either by a command-response mechanism or by a talk-only mode which is invoked via a switch on the RS-232 board. A variety of baud rates and byte framing options are available, as well as switches to force the handshake lines to an “always true” condition. See Chapter 6 of .pdf manual for instructions on use. This is the RS-232 Computer Interface Card Module ONLY, MKS Granville Phillips 307 Controller, Cables and Accessories sold separately on this website. The MKS Granville Phillips 307 Vacuum Gauge Controller Instruction Manual can be downloaded below at DOWNLOADS:

This is a MKS Granville Phillips Process Control Module provides the 307 Vacuum Gauge Controller with single-pole, double-throw relays that may be controlled either by (6 digital setpoints) or by the built-in manual override switches. This Process Control Module has 6 user selectable channels. The first 2 channels are assigned to the ion gauges. If present, channels 3 and 4 are assigned to CGA or TCA; and 5 and 6 to CGB, TCB, or CMB. Switches are provided to assign channel 1 to IG1, IG2, or both; and likewise for channel 2. All six channels have selectable polarity for activation above or below the setpoint. For Process Control Card (module) installation procedures see pages 16-27 of instruction manual.pdf. For specs and procedures for use, see Chapter 5 of the instruction manual.

This is a MKS Granville Phillips Process Control Module and provides the 307 Vacuum Gauge Controller with single-pole, double-throw relays that may be controlled either by (2 digital setpoints) or by the built-in manual override switches. This Process Control Module has 2 user selectable channels. These 2 channels are assigned to the ion gauges. Switches are provided to assign channel 1 to IG1, IG2, or both; and likewise for channel 2. All two channels have selectable polarity for activation above or below the setpoint. For Process Control Card (module) installation procedures see pages 16-27 of instruction manual.pdf. For specs and procedures for use, see Chapter 5 of the instruction manual.

This is a MKS Granville Phillips Linear Analog Output Module and provides three, zero to +10 Vdc, linearized voltages that correspond to the displayed pressure readings of the 307 Vacuum Gauge Controller. The source for these outputs is the digital data on the controller's internal bus to the Display Module. The analog output resolution is therefore dependent upon this data. The module is intended to be used in a 307 vacuum gauge controller configured with an ion gauge and two thermocouples. The pressure range for the IG linear output is selected by a front panel switch. Four separate ranges are available. For installation, specs and procedures for use, see Chapter 10 of the instruction manual.pdf.

This is a Remote Input Output Modue and provides Ion Gauge (IG) status outputs, remote filament on/off, degas on/off, front panel lockout capability, and fault or degas status indication relay. For installation of this user installed module see page 19 and for user instructions see page 27-29 of the 307 Vacuum Controller Instruction Manual.pdf below. This is the Remote Input Output Module ONLY, MKS Granville Phillips 307 Controller, Cables and Accessories sold separately on this website. The MKS Granville Phillips 307 Vacuum Gauge Controller Instruction Manual.pdf can be downloaded below at DOWNLOADS:

This is a Interconnect Cable to Feed Power to MKS Granville Phillips 307 Vacuum Gauge Controller Rack Mount. This is the Interconnect Cable/Power Cable ONLY, Cables and Accessories sold separately on this website. The MKS Granville Phillips 307 Vacuum Gauge Controller Instruction Manual.pdf can be downloaded at DOWNLOADS. Other OPTIONAL HardwareUser Installed Rack Mount Hardware for the MKS Granville Phillips 307 (VGC) available on this website are:Power Supply Cable & Control Unit Side by Side for 19 in. Rack - PN: 307009 Control Unit on the Left or Right Side for 19 in. Rack - PN: 307010 Control Unit in the Center of 19 in. Rack - PN: 307011 2 Control Units Side by Side for 19 in. Rack - PN: 307021

This is a MKS Granville Phillips 307 Vacuum Gauge Controller, Hardware, for Mounting Power Supply in half rack panel. This is the panel plate and hardware, for mounting the Power Supply ONLY, MKS Granville Phillips 307 Controller, Cables and Accessories sold separately on this website. The MKS Granville Phillips 307 Vacuum Gauge Controller Instruction Manual.pdf can be downloaded below at DOWNLOADS: Other OPTIONAL Hardware: - User Installed Rack Mount Hardware for the MKS Granville Phillips 307 (VGC) available on this website are:Power Supply Cable & Control Unit Side by Side for 19 in. Rack - PN: 307009 Control Unit on the Left or Right Side for 19 in. Rack - PN: 307010

This is a MKS Granville Phillips 307 or 350 Controller, Hardware, for Mounting Control Unit on Left or Right, 19 in. Rack. This is the Left or Right Plate, for mounting Control Unit ONLY, MKS Granville Phillips 307 or 350 Controller, Cables and Accessories sold separately on this website. The MKS Granville Phillips 307 Vacuum Gauge Controller Instruction Manual.pdf can be downloaded below at DOWNLOADS: Other OPTIONAL Hardware: - User Installed Rack Mount Hardware for the MKS Granville Phillips 307 (VGC) available on this website are:Power Supply Cable & Control Unit Side by Side for 19 in. Rack - PN: 307009 Control Unit on the Left or Right Side for 19 in. Rack - PN: 307010

This is a MKS Granville Phillips 307 Vacuum Gauge Controller Rack Mounting plate kit that includes the interconnect cable (cable feeds power to MKS and Graville Phillips 307 vacuum gauge controllers) ,side by side plate panel and hardware for mounting the power supply and controller unit side by side for 19 inch rack. This is the Power Cable, side by side plate and hardware ONLY for mounting the Power Supply and Control Unit Side by Side, MKS Granville Phillips 307 Controller, Cables and Accessories sold separately on this website. The MKS Granville Phillips 307 Vacuum Gauge Controller Instruction Manual.pdf can be downloaded at DOWNLOADS: Other OPTIONAL Hardware:

MKS Granville Phillips Part Number: 307008 This is a MKS Granville Phillips 307 Vacuum Gauge Controller - Rack Mount Hardware - for 1 or 2 power supplies for 19 inch rack. This is the Hardware to mount 1 or 2 power supplies ONLY, MKS Granville Phillips 307 Controller, Cables and Accessories sold separately on this website. The MKS Granville Phillips 307 Vacuum Gauge Controller Instruction Manual.pdf can be downloaded below at DOWNLOADS: Other OPTIONAL Hardware: - User Installed Rack Mount Hardware for the MKS Granville Phillips 307 (VGC) available on this website are:Power Supply Cable & Control Unit Side by Side for 19 in. Rack - PN: 307009 Control Unit on the Left or Right Side for 19 in. Rack - PN: 307010

This is a MKS Granville Phillips 307 or 350 Controller, Hardware, for Mounting Control Unit on Left or Right, 19 in. Rack. This is the Left or Right Plate, for mounting Control Unit ONLY, MKS Granville Phillips 307 or 350 Controller, Cables and Accessories sold separately on this website. The MKS Granville Phillips 307 Vacuum Gauge Controller Instruction Manual.pdf can be downloaded below at DOWNLOADS: Other OPTIONAL Hardware: - User Installed Rack Mount Hardware for the MKS Granville Phillips 307 (VGC) available on this website are:Power Supply Cable & Control Unit Side by Side for 19 in. Rack - PN: 307009 Control Unit on the Left or Right Side for 19 in. Rack - PN: 307010

This is a MKS Granville Phillips 307 or 350 Controller Hardware, for Mounting 2 Control Units Side-by-Side for 19 in. Rack. This is the panel plate and hardware, for mounting 2 Control Units ONLY, MKS Granville Phillips 307 or 350 Controller, Cables and Accessories sold separately on this website.The MKS Granville Phillips 307 Vacuum Gauge Controller Instruction Manual.pdf can be downloaded below at DOWNLOADS: Other OPTIONAL Hardware: - User Installed Rack Mount Hardware for the MKS Granville Phillips 307 (VGC) available on this website are:Power Supply Cable & Control Unit Side by Side for 19 in. Rack - PN: 307009 Control Unit on the Left or Right Side for 19 in. Rack - PN: 307010
