This is an 11000 series HVA gate valve repair kit with copper bonnet and Viton o-ring seal. Rated for UHV. This kit fits both the manual and pneumatic HVA 2.75 inch CF Conflat gate valves, models 11120-0150 and 11222-0150R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with copper bonnet and Viton o-ring seal. Rated for UHV. This kit fits both the manual and pneumatic HVA 2.75 inch CF Conflat gate valves, models 11120-200 and 11222-200R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with copper bonnet and Viton o-ring seal. Rated for UHV. This kit fits both the manual and pneumatic HVA 4.50 inch CF Conflat gate valves, models 11120-0250 and 11222-0250R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with copper bonnet and Viton o-ring seal. Rated for UHV. This kit fits both the manual and pneumatic HVA 6.00 inch CF Conflat gate valves, models 11120-0400 and 11222-0400R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with copper bonnet and Viton o-ring seal. Rated for UHV. This kit fits both the manual and pneumatic HVA 8.00 inch CF Conflat gate valves, models 11120-0600 and 11222-0600R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with copper bonnet and AFLAS o-ring seal. Rated for UHV. AFLAS (TFE/P) can withstand higher temperatures than Viton (up to 220 °C / 450 °F ) and has superior amine resistance. This kit fits both the manual and pneumatic HVA 8.00 inch CF Conflat gate valves, models 11120-0600 and 11222-0600R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with copper bonnet and KALREZ o-ring seal. Rated for UHV. KALREZ (FFKM) can withstand the highest temperature of any vacuum seal elastomer (up to 315 °C / 600 °F). This kit fits both the manual and pneumatic HVA 8.00 inch CF Conflat gate valves, models 11120-0600 and 11222-0600R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with copper bonnet and Viton o-ring seal. Rated for UHV. This kit fits both the manual and pneumatic HVA 10.00 inch CF Conflat gate valves, models 11120-0800 and 11222-0800R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with copper bonnet and Viton o-ring seal. Rated for UHV. This kit fits both the manual and pneumatic HVA 12.00 inch CF Conflat gate valves, models 11120-1000 and 11222-1000R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with copper bonnet and Viton o-ring seal. Rated for UHV. This kit fits both the manual and pneumatic HVA 14.00 inch CF Conflat gate valves, models 11120-1200 and 11222-1200R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with Viton bonnet o-ring and gate o-ring. Rated for HV. This kit fits both the manual and pneumatic HVA KF50 (KF/ISO-K 50) gate valves, models 11110-0203 and 11212-0203R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with Viton bonnet o-ring and gate o-ring. Rated for HV. This kit fits both the manual and pneumatic HVA KF40 (KF/ISO-K 40) gate valves, models 11110-0153 and 11212-0153R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with Viton bonnet o-ring and gate o-ring. Rated for HV. This kit fits both the manual and pneumatic HVA ISO-F 63 gate valves, models 11110-0253 and 11212-0253R. Please download the installation instructions.

This is an 11000 series HVA gate valve repair kit with Viton bonnet o-ring and gate o-ring. Rated for HV. This kit fits both the manual and pneumatic HVA ISO-F 200 gate valves, models 11110-0803 and 11212-0803R. Please download the installation instructions.

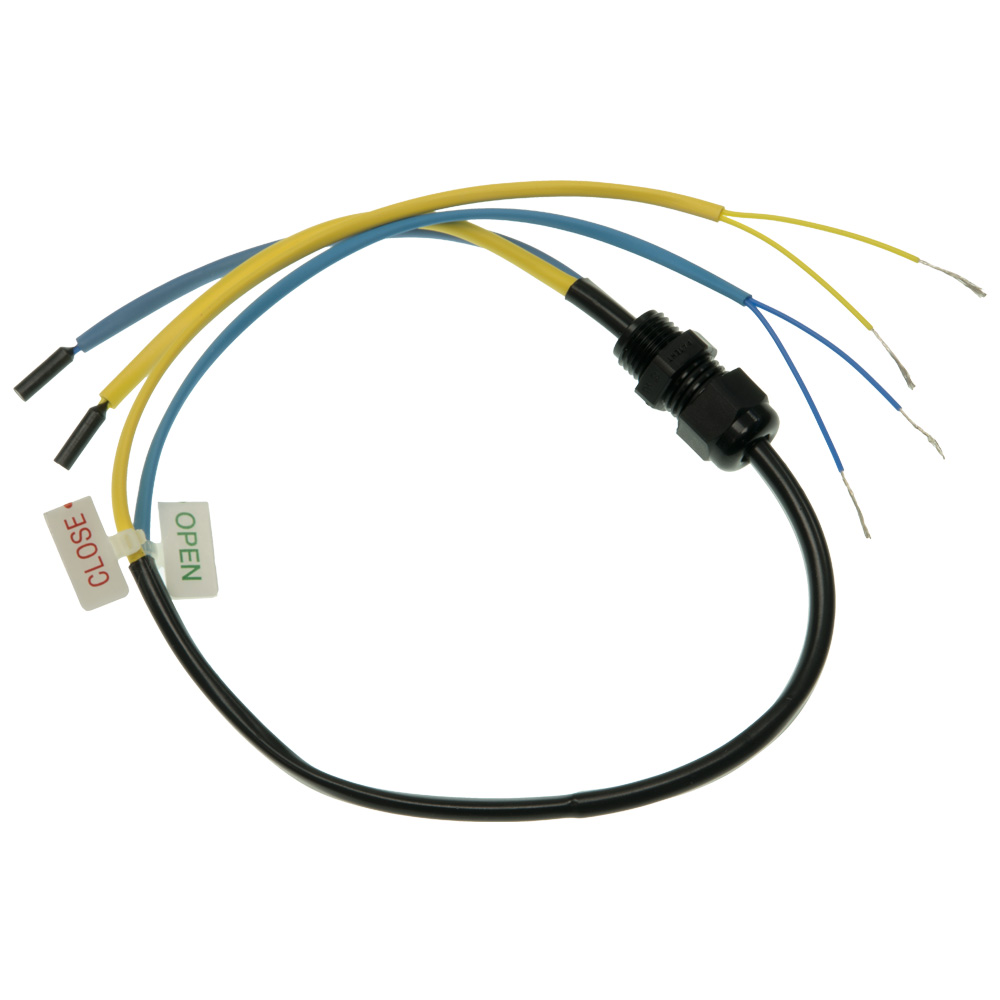

This is a replacement reed switch harness for HVA pneumatic valves. This single harness has both the OPEN and CLOSE reed switches, clearly marked. HVA part number 07744. HVA pneumatic gate valves are often found connected to turbo pumps in high or ultra high vacuum systems. If you are performing bakeout or other high temperature applications, we suggest using the HIGH TEMPERATURE reed switch harness replacement (part number P1012124

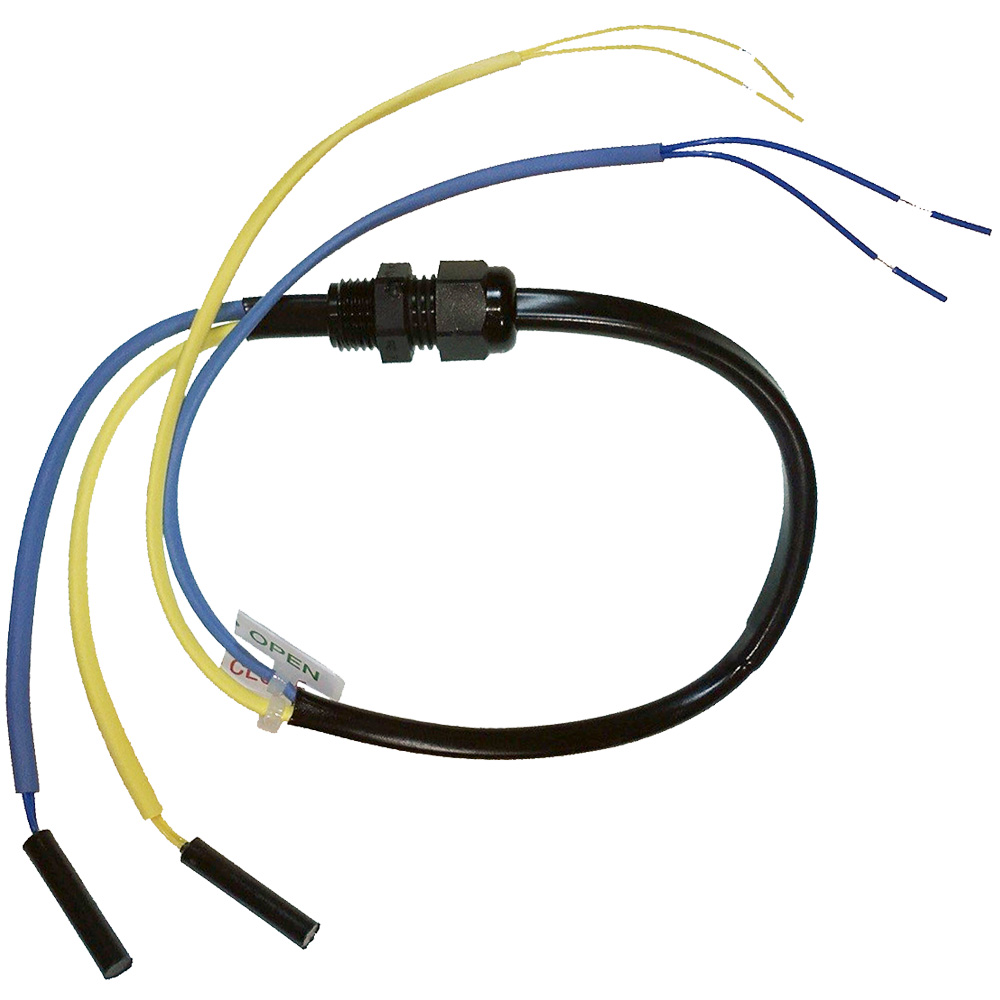

This is a replacement HIGH TEMPERATURE reed switch for HVA pneumatic valves built after 2004 which are rated for high temperatures (i.e., bakeout). Typically these high temperature rated valves and components are typically found in UHV systems, have Conflat fittings, and use copper sealing rings. This single harness has both the OPEN and CLOSE reed switches. Part number 07744HT.

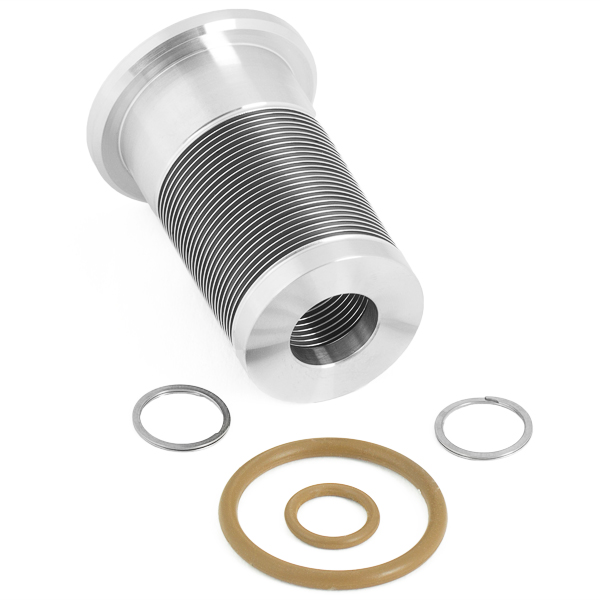

This is a Bellows Kit for Elastomer Viton Sealed Bonnets (not metal sealed bonnets) for 4, 6, 8 inch HVA Gate Valves. Contains Bellows, O-Rings and Retaining Rings. For installation and maintenance instructions see .pdf below and start on page 14. This Kit Fits the Following Elastomer Viton Sealed Bonnet Gate Valves PART NUMBERS: HVA ISO100 4 inch manual Gate Valve PN: 11110-0403 / Ideal Vacuum PN: P104202 HVA ISO160 6 inch manual Gate Valve PN: 11110-0603 / Ideal Vacuum PN: P104241 HVA ISO200 8 inch manual Gate Valve PN: 11110-0803 / Ideal Vacuum PN: P104204

This is a Bellows Kit for Elastomer Viton Sealed Bonnets (not metal sealed bonnets) for 1.5 inch to 3 inch HVA Gate Valves. Contains Bellows, O-Rings and Retaining Rings. For installation and maintenance instructions see .pdf below and start on page 14. This Kit Fits the Following HVA Elastomer Viton Sealed Bonnet Gate Valves PART NUMBERS: HVA KF40 Gate Valve PN: 11110-0153 / Ideal Vacuum PN: P104205 HVA KF50 Gate Valve PN: 11110-0203 / Ideal Vacuum PN: P104240 HVA ISO63 Gate Valve PN: 11110-0253 / Ideal Vacuum PN: P104203

This is a Bellows Kit for DN 2" Stainless Steel Gate Valves with Copper Bonnet. Fits manual CF 3.375 in. Gate Valves (HVA PN 11120-0200.)For installation and maintenance instructions see .pdf to the side and start on page 14. This Kit Fits the Following HVA CF Elastomer Copper Bonnet Gate Valves. PART NUMBERS: HVA CF 3.375 in. Gate Valve PN: 11120-0200 / Ideal Vacuum PN: P104238

This is a Bellows Kit for DN 2.5" Stainless Steel Gate Valves with Copper Bonnet. Fits manual CF 4.5 in. Gate Valves (HVA PN 11120-0250.) For installation and maintenance instructions see .pdf to the side and start on page 14. This Kit Fits the Following HVA CF Elastomer Copper Bonnet Gate Valves. PART NUMBERS: HVA CF 4.5 in. Gate Valve PN: 11120-0250 / Ideal Vacuum PN: P104198

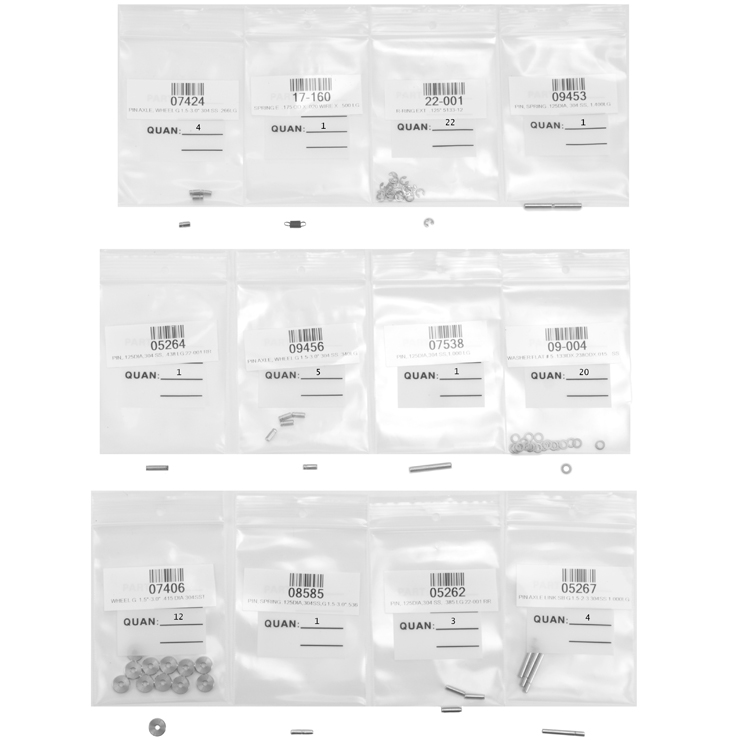

This is a Pin and Bearing Kit for HVA Gate Valves KF16 and CF 1.33 in. For installation and maintenance instructions see .pdf to the side of this ad. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA KF16 Gate Valve PN: 11110-0063 / Ideal Vacuum PN: P104239 HVA CF 1.33 in. Gate Valve PN: 11120-0060 / Ideal Vacuum PN: P104197

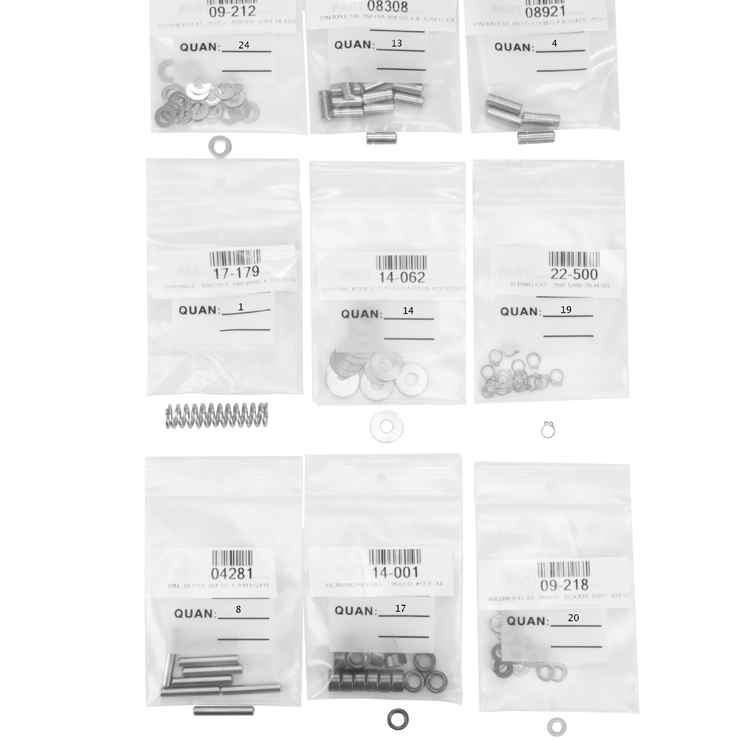

This is a Pin and Bearing Kit for HVA Gate Valves KF40 and CF 2 3/4 in. For installation and maintenance instructions see .pdf to the side of this ad. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA KF40 Gate Valve PN: 11110-0153 / Ideal Vacuum PN: P104205 HVA 2 3/4 in. CF Gate Valve PN: 11120-0150 / Ideal Vacuum PN: P104200

This is a Pin and Bearing Kit for HVA Gate Valves KF50 and CF 3 /3/8 in. For installation and maintenance instructions see .pdf to the side at Downloads. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA 3 3/8 in CF Gate Valve PN: 11120-0200 / Ideal Vacuum PN: P104238 HVA KF50 Gate Valve PN: 11110-0203 / Ideal Vacuum PN: P104240

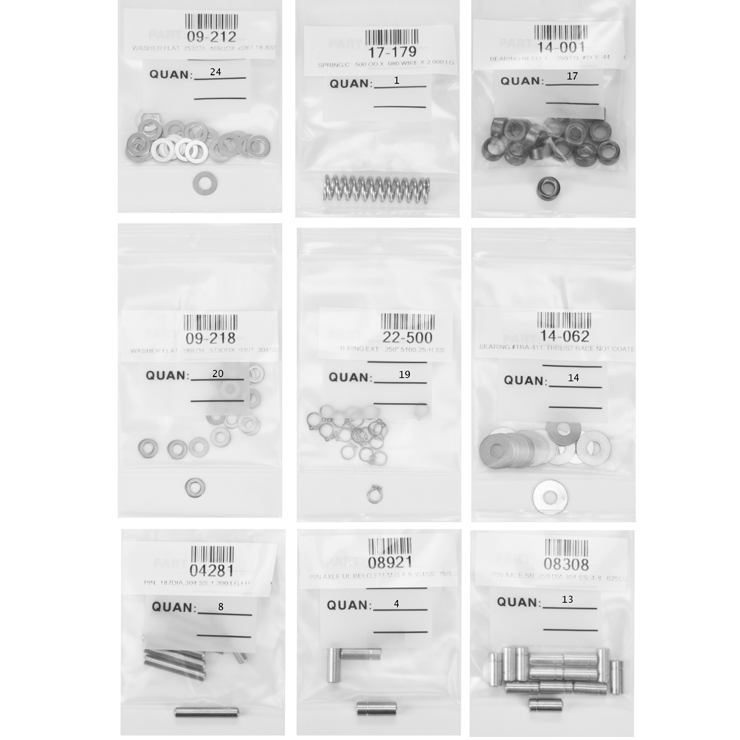

This is a Pin and Bearing Kit for HVA Gate Valves CF 6 in. For installation and maintenance instructions see .pdf to the side at Downloads. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA CF 6 in - 4 in ID Gate Valve PN: 11120-0400 / Ideal Vacuum PN: P104237

This is a Pin and Bearing Kit for HVA Gate Valves CF 8 in. For installation and maintenance instructions see .pdf to the side at Downloads. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA CF 8 in. - 6 in. ID Gate Valve PN: 11120-0600 / Ideal Vacuum PN: P104236

This is a Pin and Bearing Kit for HVA Gate Valves CF 10 in. For installation and maintenance instructions see .pdf to the side at Downloads. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA CF 10 in - 8 in ID Gate Valve PN: 11120-0800 / Ideal Vacuum PN: P104199

This is a Pin and Bearing Kit for HVA Gate Valves LF ISO63 and CF 4.5 in. For installation and maintenance instructions see .pdf to the side at Downloads. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA 4.5 in CF - 2.5 in ID Gate Valve PN: 11120-0250 / Ideal Vacuum PN: P104198 HVA LF ISO63 - 2.5 in ID Gate Valve PN: 11110-0253 / Ideal Vacuum PN: P104203

This is a Pin and Bearing Kit for HVA Gate Valves ISO 100. For installation and maintenance instructions see .pdf to the side at Downloads. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA ISO 100 4 in. ID Gate Valve PN: 11110-0403 / Ideal Vacuum PN: P104202

This is a Pin and Bearing Kit for HVA Gate Valves ISO 160. For installation and maintenance instructions see .pdf to the side at Downloads. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA ISO 160 - 6 in. ID Gate Valve PN: 11110-0603 / Ideal Vacuum PN: P104241

This is a Pin and Bearing Kit for HVA Gate Valves ISO 200. For installation and maintenance instructions see .pdf to the side at Downloads. This Kit Fits the Following HVA Elastomer Viton Sealed Manual Bonnet Gate Valves PART NUMBERS: HVA ISO 200 - 8 in. ID Gate Valve PN: 11110-0803 / Ideal Vacuum PN: P104204

Used to mate HVA 4 inch gate valve to 4 inch ASA flanges or 4 inch ASA Diffusion Pumps. This is a SPECIAL sleeve and bolt kit for the HVA 4 inch ASA ANSI Gate valves. Without it you can not connect/mate ASA flanges to the ASA 4 inch HVA gate valve. The reason for this kit is that the ASA 4 inch HVA gate valve has smaller bolt holes than a normal ASA 4 inch flange bolt hole and therefore requires a sleeve bushing to line up the bolts. The HVA ASA ANSI 4 inch Gate Valve has 3/8 inch threaded holes and the sleeve and ASA flange has smooth holes. This SPECIAL sleeve and bolt kit for the HVA 4" gate valve contains: 16 bolts 3/8-16 1 inch Hex

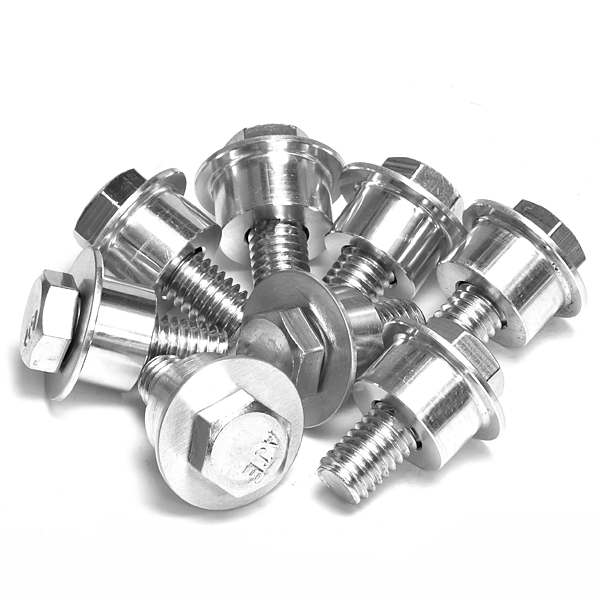

Used to mate HVA 2 inch gate valve to 2 inch ASA flanges or 2 inch ASA Diffusion Pumps. This is a SPECIAL sleeve and bolt kit for the HVA 2 inch ASA ANSI Gate valves. Without it you can not connect/mate ASA flanges to the ASA 2 inch HVA gate valve. The reason for this kit is that the ASA 2 inch HVA gate valve has smaller bolt holes than a normal ASA 2 inch flange bolt hole and therefore requires a sleeve bushing to line up the bolts. The HVA ASA ANSI 2 inch Gate Valve has 3/8 inch threaded holes and the sleeve and ASA flange has smooth holes. This SPECIAL sleeve and bolt kit for the HVA ASA ANSI 2" gate valve contains: 8 bolts 3/8-16 1 inch Hex

These are bolts to attach ASA Gate Valves to ASA Diffusion pumps, ASA sizes 6, 8 and 10 inch. One each, size 3/4-10 1-1/4" Length Hex Bolt - Course Thread.
