Sleeve Bushing and Bolt Kit for HVA ASA 4 inch Gate Valves, PN 11210-0401R, 11210-0401

This is a SPECIAL sleeve and bolt kit for the HVA 4 inch Gate Valves PN 11210-0401R (pneumatic) or PN 11110-0401 (Manual).
Used to mate HVA 4 inch gate valve to 4 inch ASA flanges or 4 inch ASA Diffusion Pumps.

This is a SPECIAL sleeve and bolt kit for the HVA 4 inch ASA ANSI Gate valves. Without it you can not connect/mate ASA flanges to the ASA 4 inch HVA gate valve. The reason for this kit is that the ASA 4 inch HVA gate valve has smaller bolt holes than a normal ASA 4 inch flange bolt hole and therefore requires a sleeve bushing to line up the bolts. The HVA ASA ANSI 4 inch Gate Valve has 3/8 inch threaded holes and the sleeve and ASA flange has smooth holes.

This SPECIAL sleeve and bolt kit for the HVA 4" gate valve contains:

16 bolts 3/8-16 1 inch Hex
16 sleeves

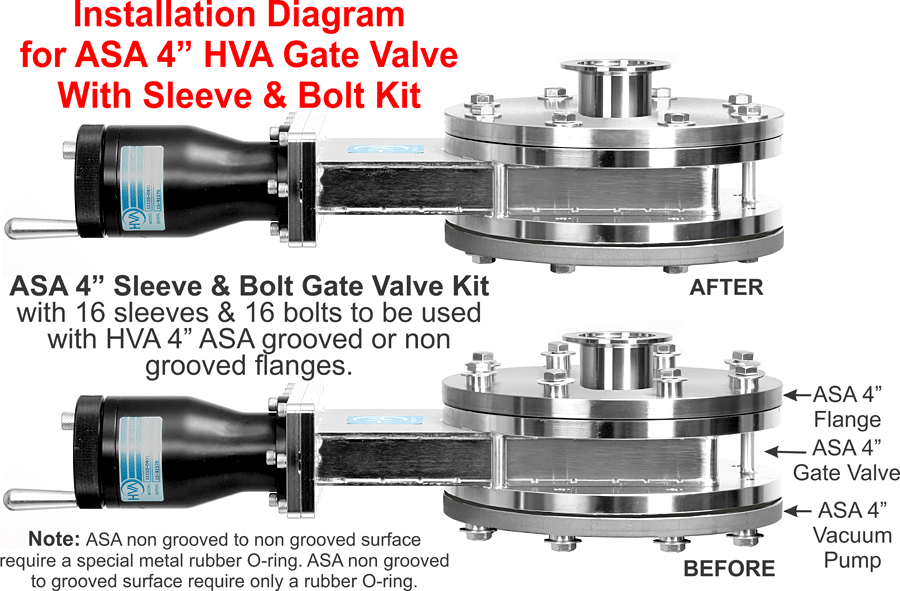

See illustration below for installation of the gate valve.

Press ESC to Close

Availability Of Kit Components Kit: P107354 - Sleeve Bushing and Bolt Kit for HVA ASA 4 inch Gate Valves, PN 11210-0401R, 11210-0401
Component	Desc.	Req'd	Avail
Non-Standard	No Component Description Available On Website	16	58
P1011552	Agilent Varian Hex Head Bolt, Attach ASA Gate Valves to ASA HS-2 Diffusion Pumps 3/8-16 1 inch length - 1 each	16	44
