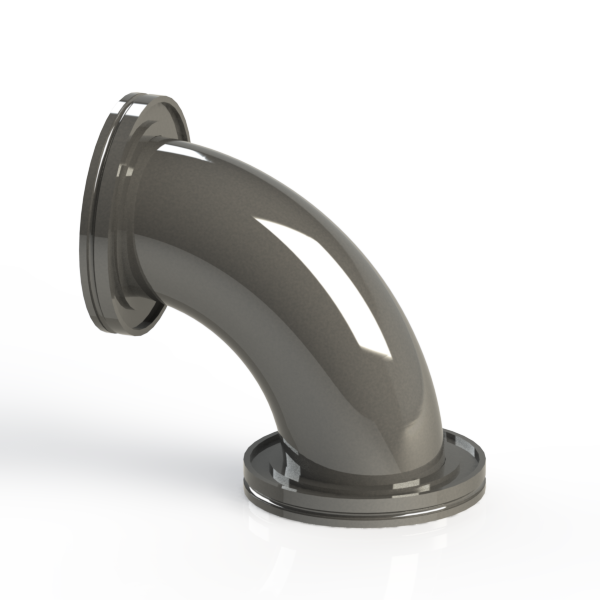

Elbow 90 Degrees, NW-63 Vacuum Fittings, ISO-LF Large Flange Size NW-63, Stainless Steel

Elbow 90 Degrees, NW-63 Vacuum Fittings, ISO-LF Large Flange Size NW-63, Stainless Steel
PN: A2506200E0000631

ISO (International Standards Organization) flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant 304 stainless steel.

Specifications & Dimensions:
Flange Size: ISO LF NW-63
A: 4.00" (102 mm)

Press ESC to Close

RoHS Compliance Download

P101700.sldprt

P101700.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
