Edwards Vacuum Intake Adapter, NW25 to 1 inch MBSP, Vacuum Pumps E2M18, E1M18, E2M28, E2M30, PN C10501203


Vacuum Intake Adapter, NW25 to 1 inch MBSP, Edwards Vacuum Pumps E2M18, E1M18, E2M28, E2M30, PN C10501203

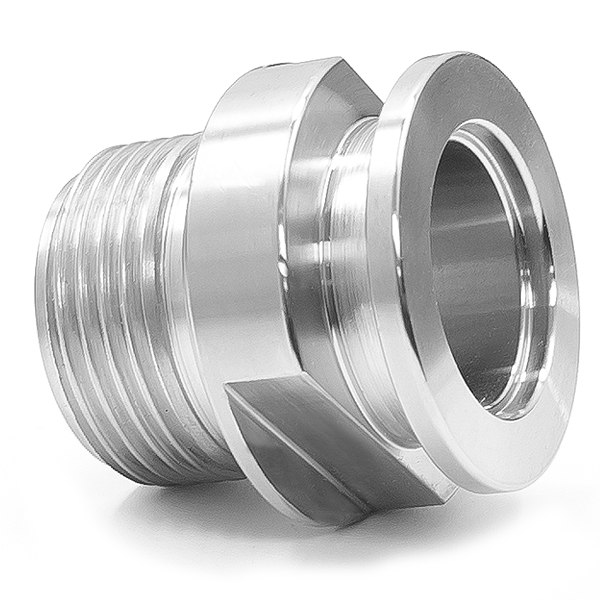

This is a KF25 NW25 to BSP male 1 inch stainless steel, vacuum inlet for the following Edwards Vacuum Pumps See Below. To ensure correct BSP sizing, refer to the table below as well (OD and BSP size are different).

Fit Edwards Vacuum Pumps Models:

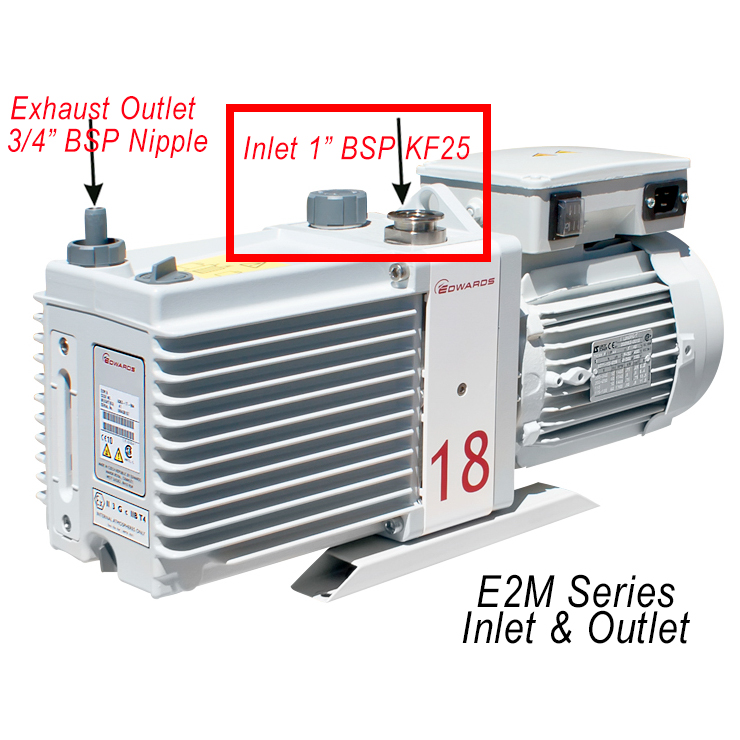

  • Vacuum Intake: E2M18, E1M18, E2M28, E2M30
  • Dimensions: Height 1.5", Weight 12 oz.
  • Adapter: NW25 to 1 inch BSP male
  • Material: Stainless Steel
  • Edwards PN: C10501203



Press ESC to Close


BSP Conversion Table
Metric Value BSP Value Actual OD (mm) Actual OD (inches)
6mm 1/8" 9.728 0.383
8mm 1/4" 13.157 0.518
10mm 3/8" 16.662 0.656
15mm 1/2" 20.995 0.825
20mm 3/4" 26.441 1.041
25mm 1" 33.249 1.039
32mm 1 1/4" 41.91 1.65
40mm 1 1/2" 47.803 1.882
50mm 2" 59.614 2.347
65mm 2 1/2" 75.184 2.96
75mm or 80mm 3" 87.884 3.46
100mm 4" 113.03 4.45
125mm 5" 138.43 5.45
150mm 6" 163.83 6.45
