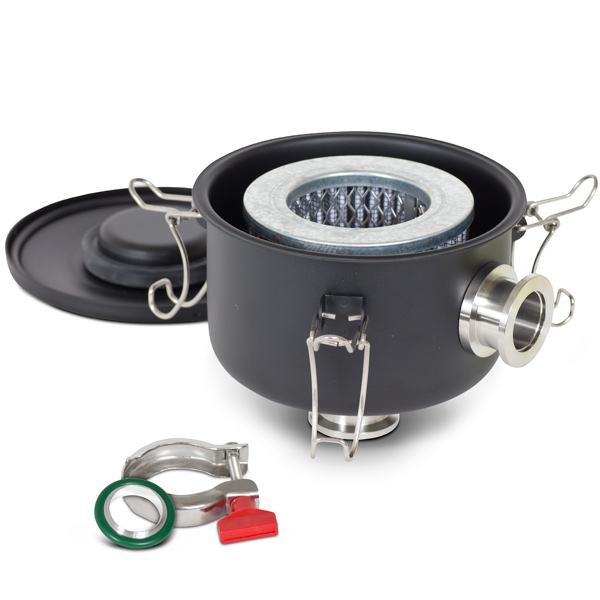

Edwards nXDS Series Dry Scroll Vacuum Pump Micron Filter Trap, Can Be Used On The Inlet or Pump Exhaust, KF-25 Vacuum Flanges, PN: A505-97-805

These Edwards nXDS micron filter traps can either be used on the pump's inlet to protect from debris that might be sucked in from the vacuum chamber or they can be used between the vacuum pump and the exhaust line to trap out tip-seal dust. These Edwards nXDS filter traps are supplied ready with a 5 micron element, have KF-25 vacuum flanges, and Edwards part number A505-97-805.

Replacement Filter Media 1 micron, A505-97-803. P108771
Replacement Filter Media 5 micron, A505-97-802. P108772

Works With All Edwards nXDs Series Dry Scroll Vacuum Pumps:

• Edwards nXDS6i
• Edwards nXDS10i
• Edwards nXDS15i
• Edwards nXDS20i
• Edwards nXDS6ic
• Edwards nXDS10ic
• Edwards nXDS15ic
• Edwards nXDS20ic
• Edwards nXDS6ir
• Edwards nXDS10ir
• Edwards nXDS15ir
• Edwards nXDS20ir
