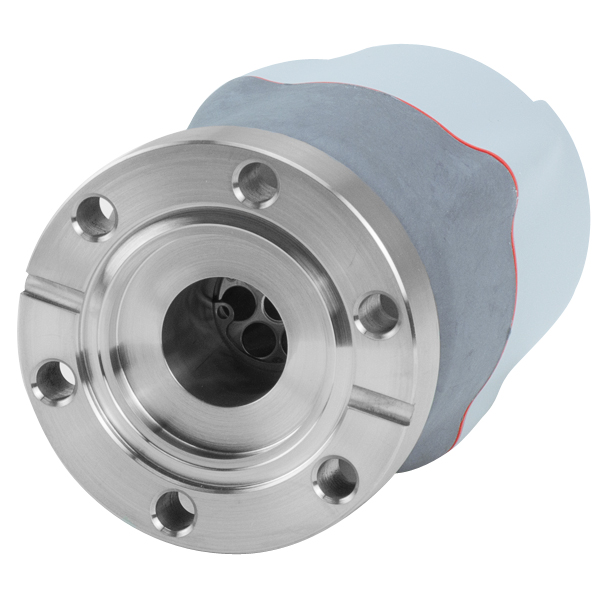

Ewards WRG-S-DN40CF Active Wide Range Gauge DN40CF, CF Conflat 2.75 in. ATM (atmosphere) to 10-9 Torr
Edwards Part Number D14703000 (WRG-S-DN40CF)
The Ewards WRG-S Active Wide Range Gauge DN40CF, CF Conflat 2.75 in., offers the capability of single port pressure
measurement in the range ATM (atmosphere) to 10
-9 Torr with a linear output. Its a compact
solution, halving the space and connectivity hardware requirement, which can be all
important in many applications. The WRG has many novel features, including a new
patented striker, pushbutton calibration and set point controls and comprehensive
diagnostics. The WRG is a cost-effective vacuum management solution when used either
with a Edwards controller or directly integrated into the system controls and has a
user replaceable
sensor tube. The WRG is suitable for a wide range of HV and UHV
applications, however if your process will spend a significant
amount of time between 5x10
-4 Torr and 5x10
-3 Torr then Edwards
recommend using independent APG100 Pirani and AIM Penning
gauges, as this will improve gauge reliability for your application. Signal cable and controller not supplied.
For instruction manual .pdf on Edwards WRG Active Wide Range Gauges see below AVAILABLE DOWNLOADS:
Features Include:
- Microprocessor signal processing
- Low magnetic field version for mass spectrometry and electron microscopy
- Programmable set point
- Magnetron highly reliable striking even at high vacuum
or in relatively contaminated conditions
- CSA, C/US approved
- Pressure range from ATM atmosphere to 10-9 Torr.
