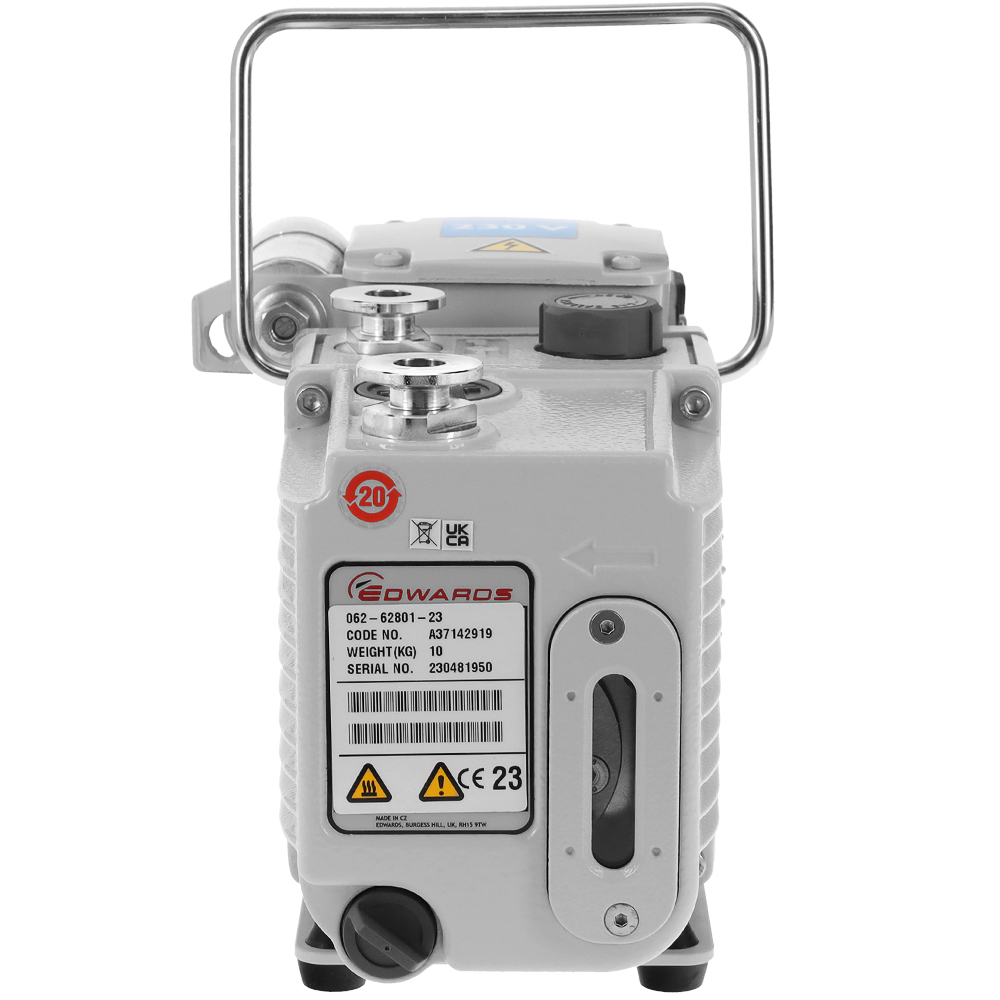

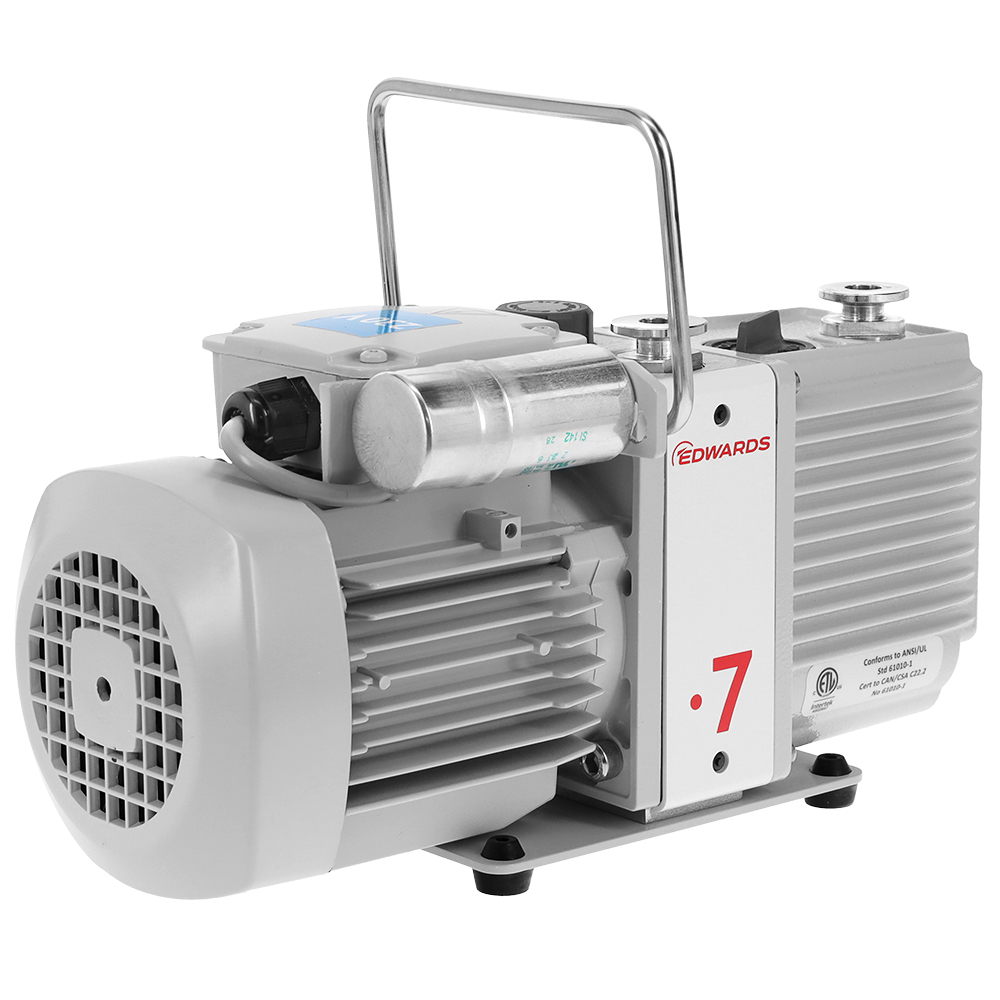

Edwards Micromeritics 0.7 E2M0.7 Rotary Vane Dual Stage Mechanical Vacuum Pump, 230 VAC.
Edwards Part Number A371-42-919.
The Edwards Micromeritics vacuum pumps are used to degas and analyze samples, and to prepare samples for surface area and pore volume analysis. Micromeritics systems use rotary-vane oil forepumps (wet pumps) for degassing and analysis. The Micromeritics E2M0.7 pumps differ from the standard E2M0.7 pumps as follows: The Micromeritics E2M0.7 pumps are supplied with a sealed exhaust assembly fitted to the outlet port of the pump. You must remove the sealed exhaust assembly from the outlet port before commissioning the pump. Comes with oil and all the parts for conversion. You must use the Edwards Ultragrade 15 oil (supplied) as recommended in Section 2.5 of the corresponding pump instruction manual.
The amendment PDF on Downloads describes the installation, operation and maintenance for the E2M0.7 rotary vane pumps for
Micromeritics.

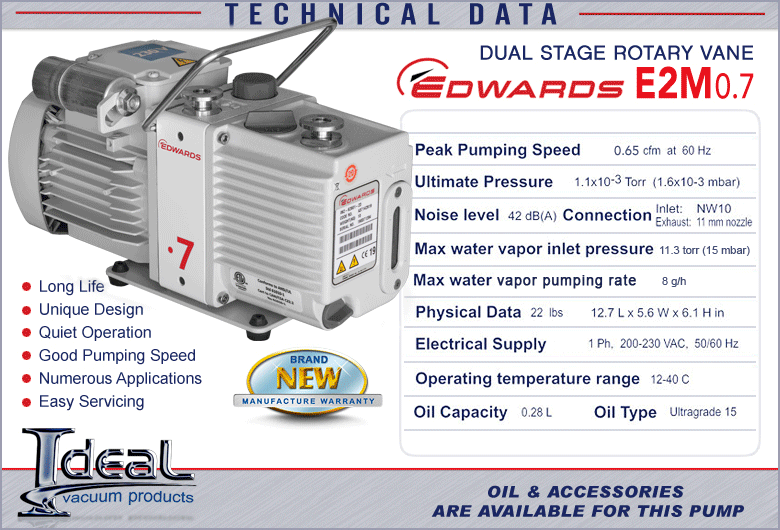

The Edwards 0.7 E2M0.7 dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pumping speed. The Edwards 0.7 E2M0.7 has superior vapor handling capabilities, while operating quietly. They are very reliable and have accessories to match any application. Applications Include use with Refrigeration dehydration, Brake line evacuation, Epoxy degassing, Sterilization, Mass spectrometry, Vacuum ovens, Lasers, Backing combinations, Thin film coating, Vacuum distillation, Freeze drying, Space research and other vacuum processes. The Edwards 0.7 E2M0.7 vacuum pumps have a pumping speed displacement at 60Hz of 0.5 CFM and an ultimate pressure of 1.1 X 10-3 Torr. These Edwards 0.7 E2M0.7 Rotary Vane Mechanical Vacuum Pumps have a product number A37142919.
