Angle Water Cooled Trap, Inlet and Outlet NW40 KF40, Body size 4.50 inch OD
Angle water cooled traps protect mechanical pumps and other downstream components from
condensable process gasses and their by-products. They can extend or eliminate preventative
maintenance intervals and pump overhauls. These unique water cooled traps have
up to three coils of corrosion resistant 316L stainless steel tubing to provide a large cold
surface area. Internal baffles combined with the coils create a perilous path for the gas flow,
maximizing resident time and increasing contact between the gas and the coils. Depending
on the application, house water or refrigerated water can be used to achieve the required
temperature to cause by-products to pass from gas to solid phase.
A 30 to 50 psi water supply is required. Anticipate a 1 gpm flow rate at 30 psi.
The two-piece trap body and 304 stainless steel construction allow these traps
to be easily cleaned. Standard finish is beadblast. For proper sealing, apply a light
coating of Krytox lube when cleaning or replacing the O-ring. Quick Disconnect (OPTIONAL)
Fittings immediately shut off water flow from both directions for single handed,
no-spill removal of the trap for preventative maintenance or O-ring replacement.
Quick Disconnect water options are available just state while purchasing.
Features:
Two piece clamped body design
Water in and out tubes
Traps all condensable vapors
Stainless Steel type 304 construction, Viton O-Ring

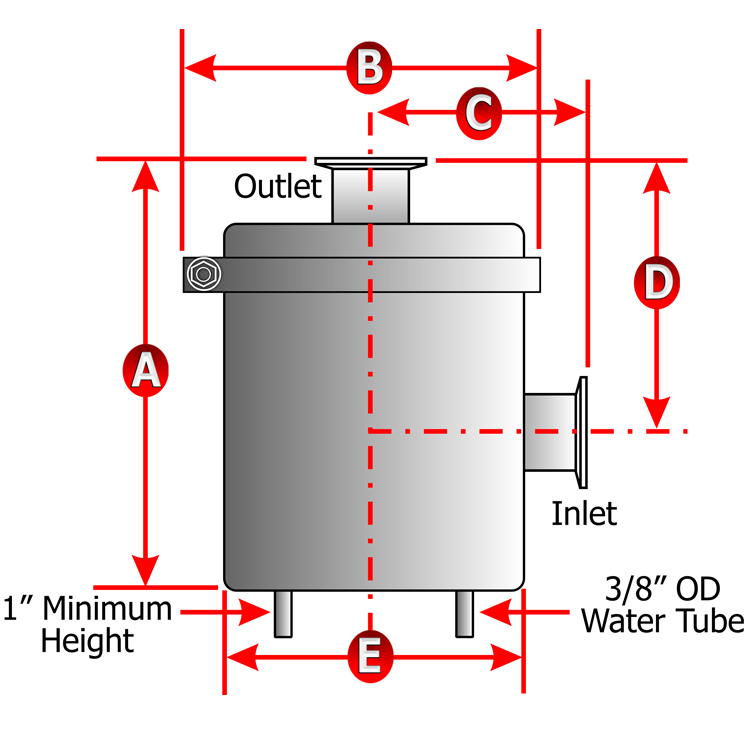

Common Dimensions & Specs:
A: 7.55"
B: 5.28"
C: 3.90"
D: 6.05"
E: 4.50"
Port OD: 1.50"
Quick Disconnect Water Option: Ask when purchasing
Inlet & Outlet Flange Size: KF40
