Condition:
  New
Part Number:
  P107181
Warranty:
  Full Manufacturer's Warranty

Available Now:
1  



$933.31


Print Version

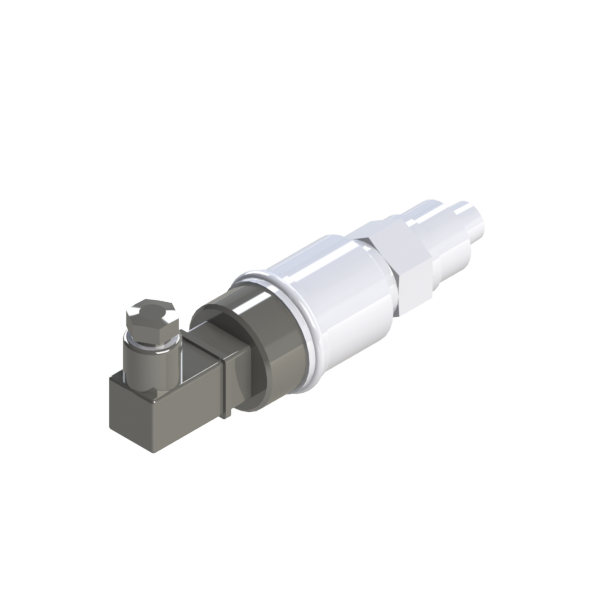

Edwards Active Strain Gauge (ASG2) Gauge 1/8 in. NPT, 1000 mbar (750 Torr) to 1 mbar (.75 Torr).


Edwards Active Strain Gauge (ASG2) Gauge 1/8 in. NPT,1000 mbar (750 Torr) to 1 mbar (.75 Torr).
Edwards Part Number D35735000

The Edwards Active Strain Gauge (ASG2) is a rugged, corrosion resistant diaphragm gauge which provides accurate, gas independent measurement from 1000 mbar (750 Torr) to 1 mbar (.75 Torr). It can be used as a stand-alone transducer allowing OEMs and system builders to develop low cost, flexible solutions to their vacuum instrumentation needs. Alternatively, it can be connected to the TIC Instrument Controller where it can be combined with many other sensor types to provide a complete vacuum instrument solution.

Active strain gauges are an excellent choice where accurate, gas independent, measurement of pressures around atmosphere are required, making them ideal for applications such as load locks. Note: AGC (active gauge cable) to ASG (active strain gauge) adaptor cable required for hook up to TIC, AGC, ADC & ADD controllers. Edwards Adapter Cable AGC to ASG, P/N D40003160. For instruction manual .pdf on Edwards Active Strain Gauges see below AVAILABLE DOWNLOADS:

Features Include:
  • Drive Electronics combined in the gauge head
  • Wide range, runs on standard dc power supplies +12 to +32 V
  • Standard analog output of 0 to 10 VDC
  • Very accurate and stable
  • Calibration data held in tube
  • Corrosion resistant
  • Pressure range 1000 mbar (750 Torr) to 1 mbar (.75 Torr)



Press ESC to Close


PDF Logo Edwards Pressure Gauge Product Catalog.pdf

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
