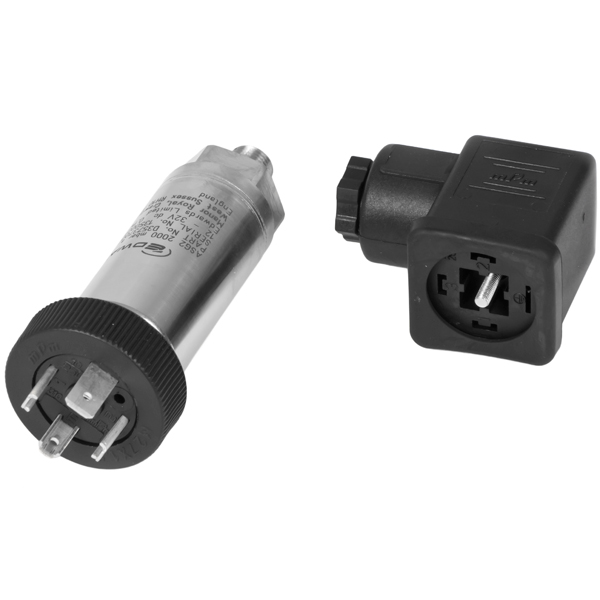

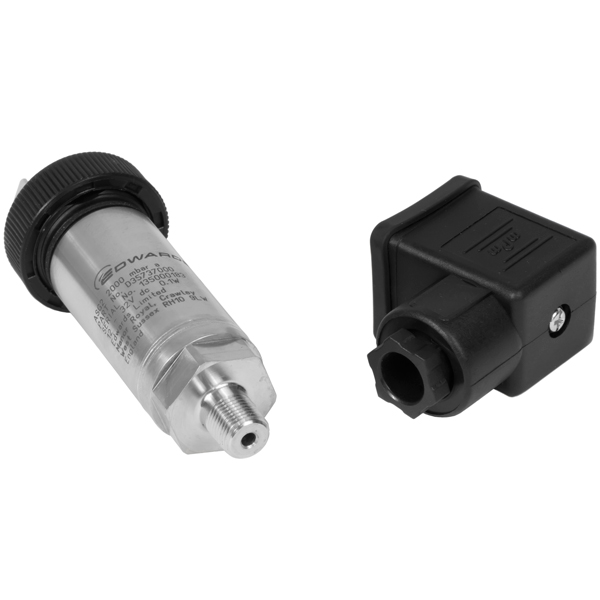

Edwards Active Strain Gauge (ASG2) Gauge 1/8 in. NPT, 2,000 mbar (1,500 Torr) to 1 mbar (.75 Torr). Edwards Part Number D35737000
The Edwards Active Strain Gauge (ASG2) is a rugged, corrosion resistant diaphragm
gauge which provides accurate, gas independent measurement from 2,000 mbar (1,500 Torr) to 1 mbar (.75 Torr). It can be used as a stand-alone transducer allowing OEMs and
system builders to develop low cost, flexible solutions to their vacuum instrumentation
needs. Alternatively, it can be connected to the TIC Instrument Controller where it can be
combined with many other sensor types to provide a complete vacuum instrument solution.
Active strain gauges are an excellent choice where accurate, gas independent, measurement of pressures around
atmosphere are required, making them ideal for applications such as load locks.
Note: AGC (active gauge cable) to ASG (active strain gauge) adaptor cable required for hook up to TIC, AGC, ADC & ADD controllers. Edwards Adapter Cable AGC to ASG, P/N D35737000. For instruction manual .pdf on Edwards Active Strain Gauges see below AVAILABLE DOWNLOADS:
Features Include:
- Drive Electronics combined in the gauge head
- Wide range, runs on standard dc power supplies +12 to +32 V
- Standard analog output of 0 to 10 VDC
- Very accurate and stable
- Calibration data held in tube
- Corrosion resistant
- Pressure range 1000 mbar (750 Torr) to 1 mbar (.75 Torr)
