Torr, Analog output 0-10V. The Edwards APG200-XLC Active Pirani Vacuum Gauge (Corrosion Resistant Platinum/Iridium Filament) contains a NW16, KF16 flange, is compact for easy installation, has a linear output, and a user replaceable sensor tube. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. They measure pressure from atmosphere down to 7.5x10 Torr. Signal cable and controller not supplied. The signal cable and vacuum gauge controller are sold separately. These Edwards APG200-XLC Active Pirani vacuum gauges with corrosive resistance Platinum/Iridium filament and NW16 vacuum flange are new with Edwards part number D1G2011100.

Torr, Analog output 0-10V. The Edwards APG 200-XLC Active Pirani Vacuum Gauge(Corrosion Resistant Platinum/Iridium Filament) contains a NW25, KF25 vacuum flange, is compact for easy installation, has a linear output, and a user replaceable tube sensor. The Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. They measure from atmosphere down to 7.5x10. The signal cables and TIC vacuum gauge controllers are sold separately. These Edwards APG200-XLC Active Pirani vacuum gauges with corrosive resistance Platinum/Iridium filament and NW25 vacuum flange are new with Edwards part number D1G2021100.

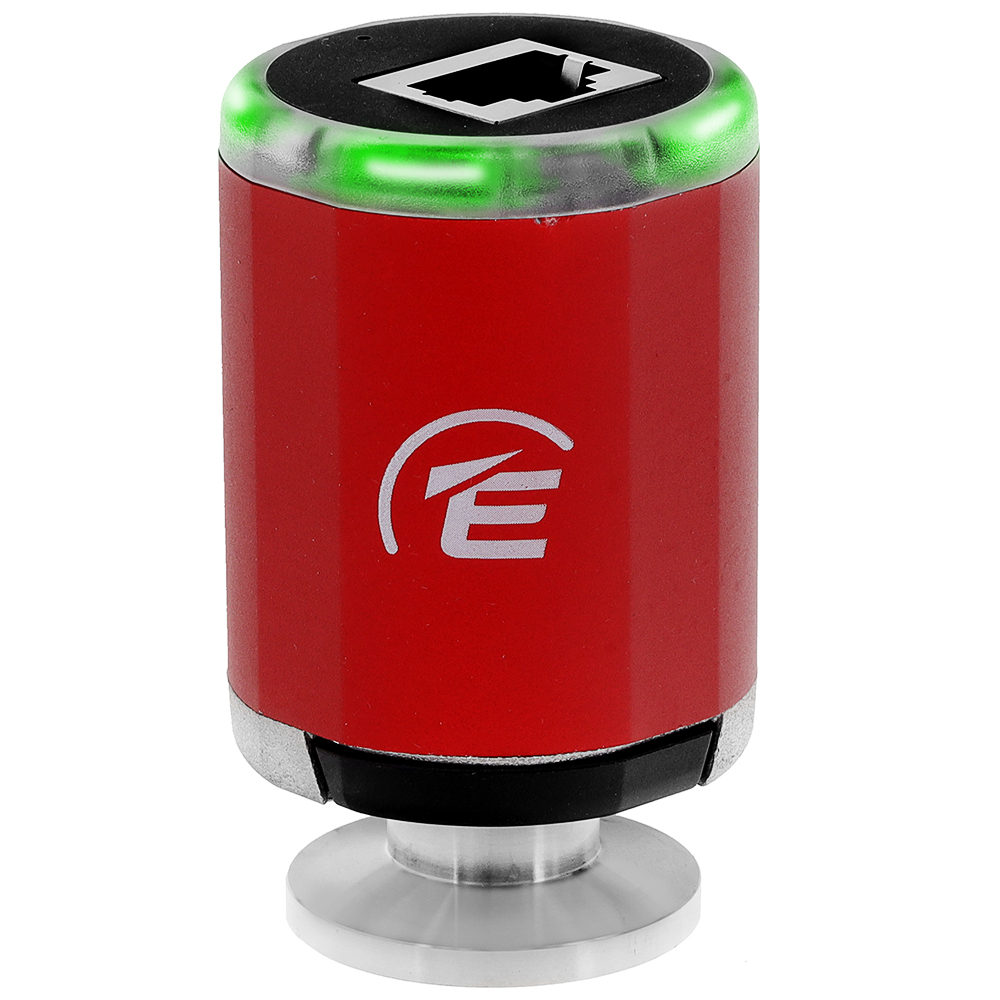

Torr, Analog output 0-10V. Edwards APG200-MP Active Pirani Vacuum Gauge with a NW16, KF16 vacuum flange, is compact for easy installation, has a linear output. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. They measure pressure from atmosphere down to 3.75x10 Torr. The signal cables and TIC vacuum gauge controllers are sold separately. The instruction manual for these Edwards APG200-MP series gauges is available in PDF format below. These gauges contain a Platinum / Rhodium (90/10) filament, stainless steel 316L and 304L, glass, Ni and NiFe. These Edwards APG200-MP Active Pirani vacuum gauges have a KF16, NW16 vacuum flange are new with Edwards part number D1G3011150.

Edwards Part Number D02182000 Edwards Active Pirani Vacuum Gauge APG-MP Active Pirani Vacuum Gauge contains a NW25, KF25 vacuum flange, is compact for easy installation, has a linear output. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. They measure pressure from 1000 down to 10 Torr. The signal cables and TIC vacuum gauge controllers are sold separately. The instruction manual for these Edwards APG-MP series gauges is available in PDF format below. This gague contains a Platinum / rhodium (90/10) filament and can measure pressure down to 10-3 Torr and is stainless steel. These Edwards APG-MP Active Pirani vacuum gauges has a KF25 NW25 vacuum flange are new with Edwards part number D02182000.

Torr, Analog output 0-10V. The Edwards APG200-XM Active Linear Pirani Vacuum Gauge contains a NW16, KF16 vacuum flange, is compact for easy installation, has a linear output, and a user replaceable tube sensor. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. They measure pressure from atmosphere down to 3.75x10 Torr. The signal cables and TIC vacuum gauge controllers are sold separately. These Edwards APG200-XM Active Pirani vacuum gauges with standard Tungsten/Rhenium filaments and NW16 vacuum flange with Edwards part number D1G1011100.

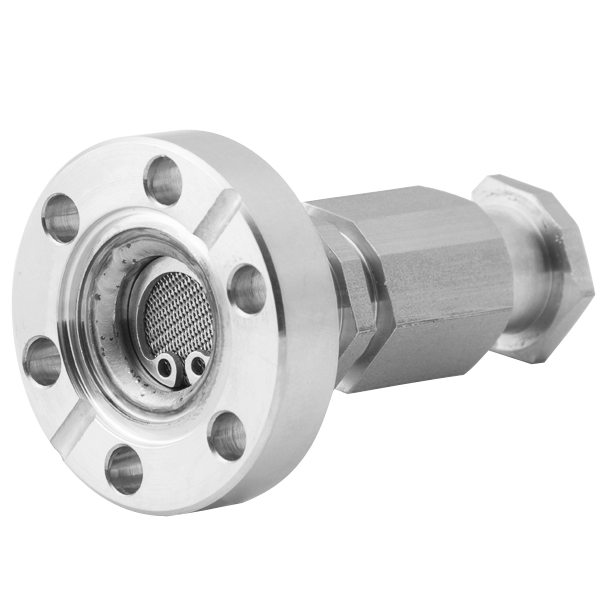

Edwards Part Number NRD711000 The Edwards APG100-XM replacement gauge tube sensors (standard Tungsten/Rhenium filaments) have a DN16CF (Conflat CF 1.33 inch) vacuum flange and are designed to fit the APG100-XLC Active Pirani Electronics housing. They are a cost effective repair solution. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. The APG100 is available in two versions: the 'M' version (contains standard Tungsten/Rhenium filaments) can measure pressure down to 10-3 Tor and is suitable for general applications; the 'LC' version (contains corrosive resistance Platinum/Iridium filaments) can measure pressure down to 10-4 Torr and is also suitable for use in corrosive applications.

Edwards Part Number D02603801 The Edwards APG100-XLC replacement gauge tube sensors (Corrosion Resistant Platinum/Iridium Filaments) have a NW25 (KF25) vacuum flange and are designed to fit the APG100-XM Active Pirani Electronics housing. They are a cost effective repair solution. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. The APG100 is available in two versions: the 'M' version (contains standard Tungsten/Rhenium filaments) can measure pressure down to 10-3 Tor and is suitable for general applications; the 'LC' version (contains corrosive resistance Platinum/Iridium filaments) can measure pressure down to 10-4 Torr and is also suitable for use in corrosive applications.

Edwards Part Number D02604801 The Edwards APG100-XLC replacement gauge tube sensors (Corrosion Resistant Platinum/Iridium Filaments) have a NW25 (KF25) vacuum flange and are designed to fit the APG100-XM Active Pirani Electronics housing. They are a cost effective repair solution. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. The APG100 is available in two versions: the 'M' version (contains standard Tungsten/Rhenium filaments) can measure pressure down to 10-3 Tor and is suitable for general applications; the 'LC' version (contains corrosive resistance Platinum/Iridium filaments) can measure pressure down to 10-4 Torr and is also suitable for use in corrosive applications.

Edwards Part Number NRD713000 The Edwards APG100-XLC replacement gauge tube sensors (Corrosion Resistant Platinum/Iridium Filaments) have a DN16CF (Conflat CF 1.33 inch) vacuum flange and are designed to fit the APG100-XLC Active Pirani Electronics housing. They are a cost effective repair solution. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. The APG100 is available in two versions: the 'M' version (contains standard Tungsten/Rhenium filaments) can measure pressure down to 10-3 Tor and is suitable for general applications; the 'LC' version (contains corrosive resistance Platinum/Iridium filaments) can measure pressure down to 10-4 Torr and is also suitable for use in corrosive applications.

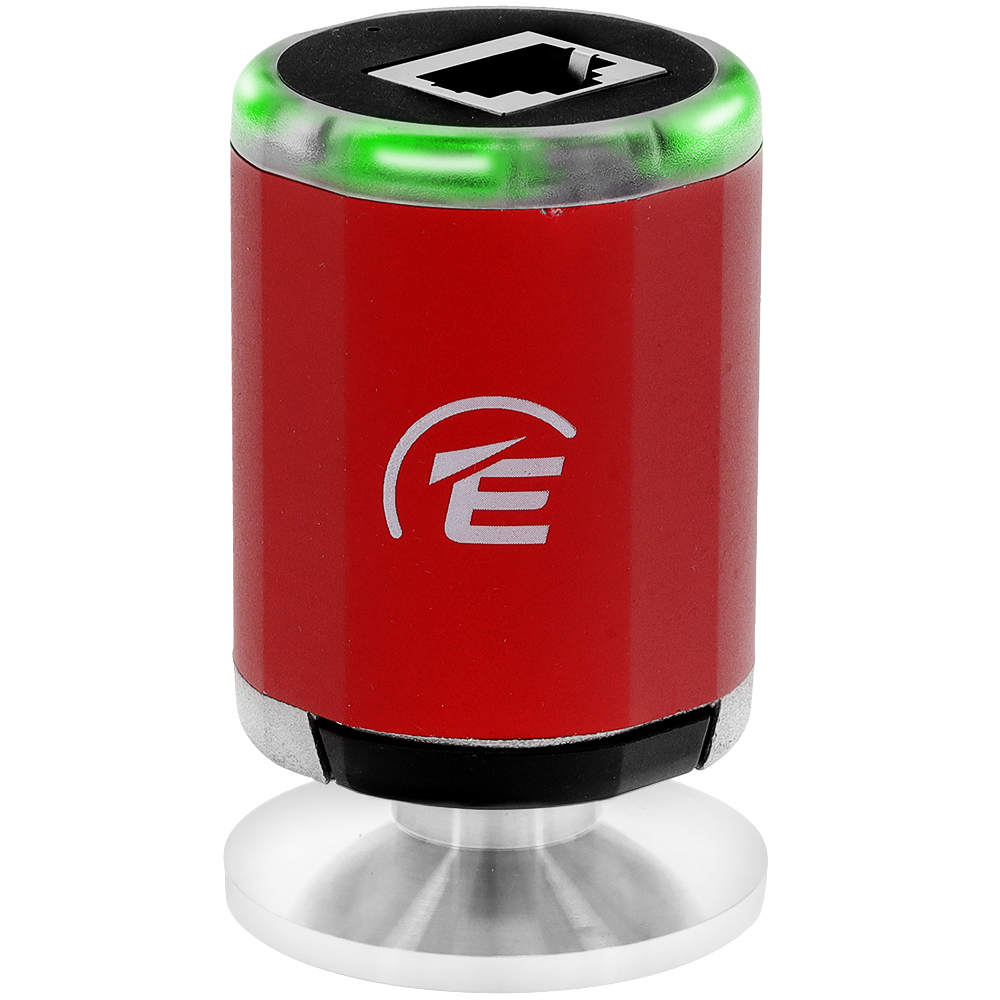

The Edwards APG200-XM Active Pirani Vacuum Gauge contains a NW25, KF25 vacuum flange, is compact for easy installation, has a linear output, and a user replaceable tube sensor. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. They measure pressure from 1000 down to 10 Torr. The signal cables and TIC vacuum gauge controllers are sold separately. The instruction manual for these Edwards APG200 series gauges is available in PDF format below. The APG200 is available in two versions: the 'M' version (contains standard Tungsten/Rhenium filaments) can measure pressure down to 10-3 Tor and is suitable for general applications; the 'LC' version (contains corrosive resistance Platinum/Iridium filaments) can measure pressure down to 10-4 Torr and is also suitable for use in corrosive applications. These Edwards APG200-XM Active Pirani vacuum gauges with standard Tungsten/Rhenium filaments and NW16 vacuum flange.

The Edwards APG200-M Active Pirani Vacuum Gauge contains a NW25, KF25 vacuum flange, is compact for easy installation, has a NON-LINEAR OUTPUT, and a user replaceable tube sensor. The new Edwards gauges are compatible with all Edwards TIC, ADC, TAG instrument controllers and other active gauge controllers and displays. They are also CSA, C/US approved as well as fully RoHS compliant due to their lead-free construction. They measure pressure from atmosphere down to 3.75x10. The signal cables and TIC vacuum gauge controllers are sold separately. These Edwards APG200-M Active Pirani vacuum gauges with standard Tungsten/Rhenium filaments and NW25 vacuum flange with Edwards Part Number D1G1021150.
