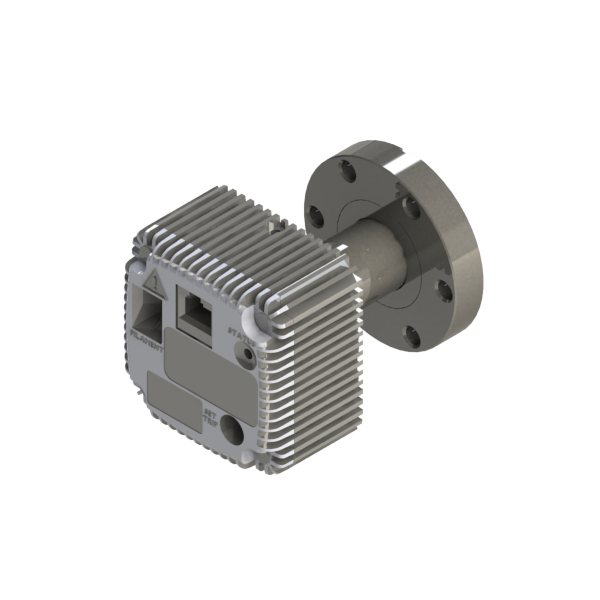

Edwards AIGX-S Active ION Gauge DN40CF Conflat CF 2.75 in., 10-2 to 10-10 Torr

The Edwards compact Active ion gauge with dual yttria coated iridium filaments, a wide measuring range from 5 x 10^-2 Torr to 5 x 10^-10 Torr and a 1 Volt/decade linear output. The new AIGX-S gauge from Edwards incorporates all the benefits of the industry standard Active gauging concept, with integral electronics and a user replaceable sensor tube. The gauge has a degas facility and includes features to protect and extend the life of the filaments. The AIGX-S benefits from extremely low emissions of charged particles, which makes it an excellent choice for processes where background noise is undesirable. Active Gauge Cable FCC68/RJ45 and controller not supplied. For more specs and functions of this AIGX-S Active ION gauge, download the instruction manual .pdf below at AVAILABLE DOWNLOADS:

Features Include:

• Full 8 decade pressure measurement from 5 x 10^-2 to 5 x 10^-10 Torr
• Up to thirty fold reduction in charged particle process
  contamination compared to leading competitors
• User interchangeable ion sensor tube
• CSA, C/US approved
• Automatic filament protection against switching on at
  ATM and running or degassing at high pressure
