Condition:
  New
Part Number:
  P1011067
Warranty:
  Against Product Defect

Available Now:
1  



$1,793.19


Print Version

Leybold SV65B Replacement Motor for Sogevac Pumps, 3HP 60HZ 230/460V, 3 PHASE, PN: 71419970


New Leybold SV65B Replacement Motor for Sogevac Pumps, 3HP 60HZ 230/460V
PN: 71419970

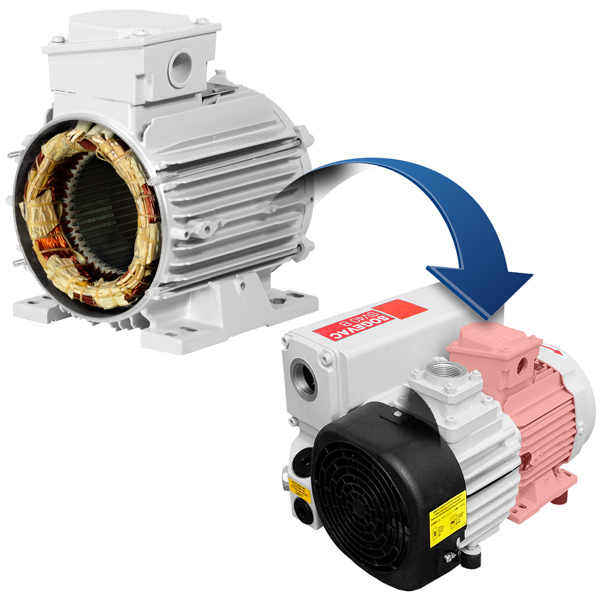

These new replacement 3 horsepower motors are for the Leybold Sogevac SV65B single stage, 3 phase, 230/460V rotary vane vacuum pumps.

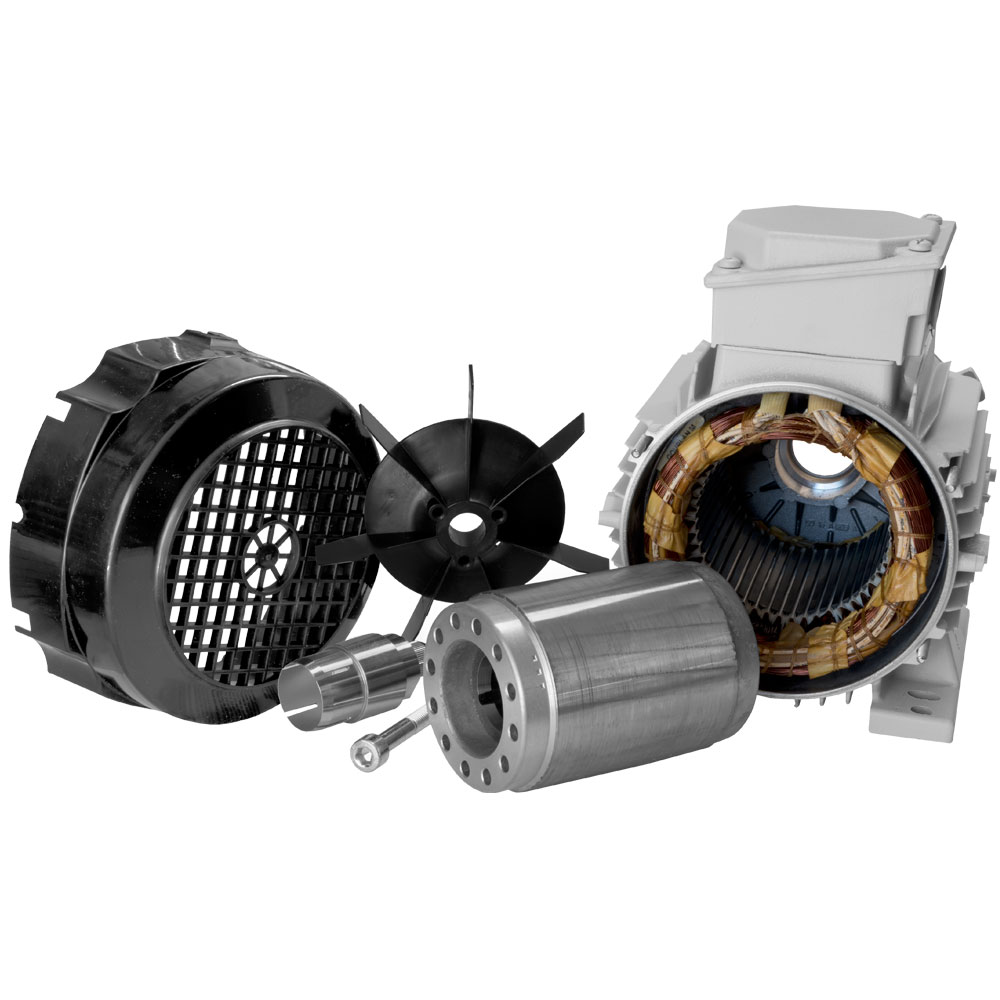

The replacement motor is supplied as parts (3rd image) which are assembled on the pump. Parts included and referenced to the exploded views in the Leybold SV65B downloadable manual are:

POS.
DESCRIP.
Part #
24
Motor, 3ph, 3Hp, 230/460V
Includes Parts 24a, 24b, 24c
71419970
24a
Electrical Rotor
71416910
24b
Motor Ring
71416770
24c
Terminal Box
971422900
25
Screw
V3811633
26
Tie Rod (Set of 4)
71416800
27
Fan
71416840
28
Fan Cover
71416830
