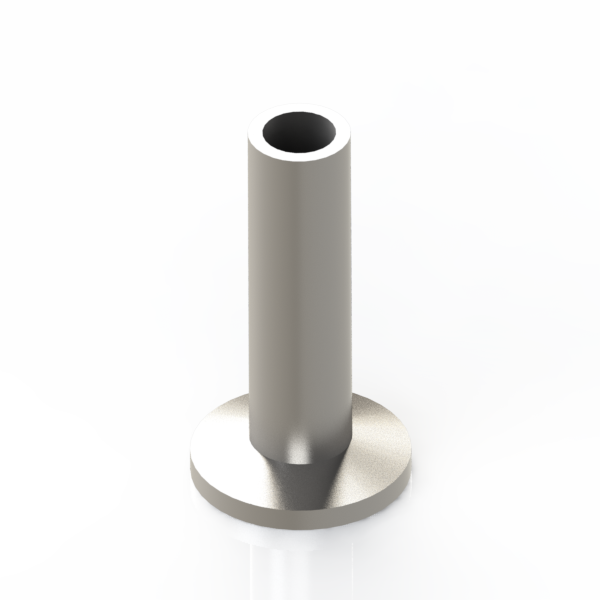

DN Half Nipple Long Weld Stub DN-10 Vacuum Fitting, 14mm OD Tube, 55mm Length, Stainless Steel


DN Half Nipple, Long Weld Stub DN-10 Vacuum Fittings, ISO-DN Flange, Stainless Steel, 55 mm Long, 14 mm OD Tube. (Sold as ONE EACH)

DN Half Nipple, Long Weld Stub DN-10 Vacuum Fittings, ISO-DN Flange, Stainless Steel, 55 mm Long, 14 mm OD Tube. They are commonly used to build foreline vacuum plumbing and process systems. The standard sizes for fittings are DN-10, DN-16, DN-25, DN-40, and DN-50. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard KF O-rings and clamps can be used for DN fittings, only the OD tube size is different than a standard Quick Flange (KF) fitting. They are made of corrosive resistant stainless steel.

DN Half Nipple Long Weld Stub
ISO-KF Flange Size: DN-10
Common Dimensions: A= 30.00 mm, B= 12.20 mm, C= 10.00 mm, D= 14.00 mm, E= 55.00 mm
For Tubing OD 14 mm
