Reducer Conical KF-40 to KF-50 Vacuum Fittings, ISO-KF Flange Size NW-40 to NW-50, Stainless Steel

Reducer Conical KF-40 to KF-50 Vacuum Fittings, ISO-KF Flange Size NW-40 to NW-50, Stainless Steel, Sold as ONE EACH.

These KF-40 to KF-50 conical reducer vacuum fittings follow ISO-KF standards and have a flange size of NW-40 to NW-50. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.

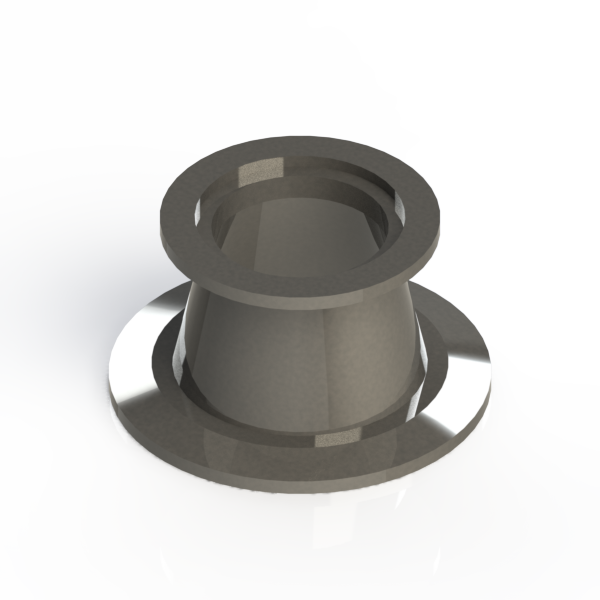

KF-40 to KF-50 Reducer
ISO-KF Flange Size: NW-40 to NW-50
Common Dimensions: A = 1.34" (34mm), B =1.57" (40mm)

Press ESC to Close

RoHS Compliance Download

P101232.sldprt

P101232.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
