Compact Oil Mist Eliminator Exhaust Filter, KF16 Inlet & Exhaust Ports, up to 10 CFM
These compact oil mist eliminator exhaust filters come with the internal filter media installed and are used to capture oil fog, mist, or smoke from the exhaust of oil vacuum pumps. These exhaust filters are air tight to prevent the vacuum pump exhaust vapors from leaking into your laboratory. They have KF16 (NW16) ports for easy connection between your vacuum pump and exhaust line. These filters also have an internal back pressure valve designed to release the element at 7.35 PSI differential pressure for pump safety. They come with a 1/8" NPT oil drain port and are made of steel construction with a white painted finish. These compact oil mist eliminator exhaust filters are designed with seamless drawn housings and no welds to rust or vibrate apart. Each comes with an installed filter media that's easy to replace with a thumbscrew.
Fits:
Alcatel
2002A Pumps With KF-16 or NW-16 Exhaust Flange.
Edwards E2M0.7, E2M1, E2M1.5 Pump with KF-16 NW-16 Exhaust Flanges.
Leybold D2A, D4A, D1.6B, D4B, and D8B With KF-16 or NW16 Exhaust Flanges.

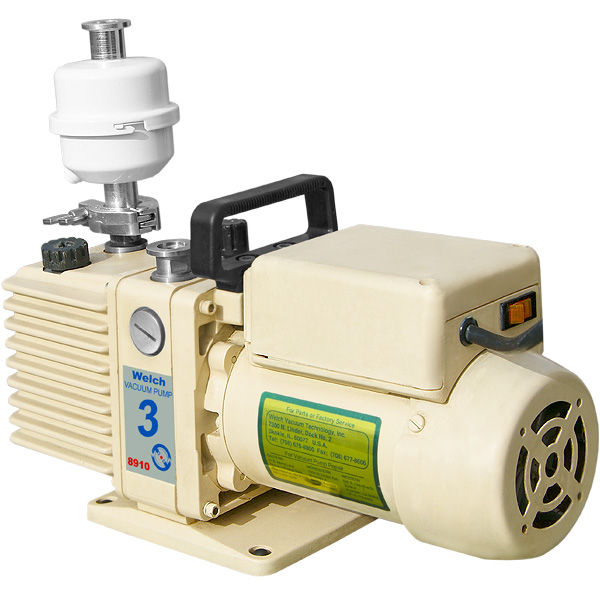

Welch1400, 1399, & 1405 With KF-16 or NW16 Exhaust Fittings.
Or any rotary vane vacuum pump with KF16 or NW16 outlet up to 10 CFM.
Common Dimensions & Specifications:
Capacity: Up to 10 CFM
Weight: ~ 1 lbs
Inlet: KF16 or NW16
Exhaust: KF16 or NW 16
Dimensions: A= 4-5/16", B= 7/8", C= 3-1/4", D= 7/8"
