Condition:
  New
Part Number:
  P108759
Warranty:
  Against Product Defect

Available Now:
33  

RoHS Compliance Sticker


$105.36


Print Version

Centering Ring Nozzle, ISO-KF Flange Size NW-50, 0.5" Cone, Stainless Steel, VITON O-Ring


Centering Ring Nozzle, ISO-KF Flange Size NW-50, KF50, 0.5" Cone, Stainless Steel, VITON O-Ring

These Centering ring Nozzle vacuum fittings are compatible with flange size ISO-KF NW-50. These nozzles are designed to reduce and direct flow in your vacuum system, allowing for better process control and analysis. When coupled with a standard O-ring, this component can be placed at any location in your system where a standard centering ring would normally be seated, facilitating simple system upgrades. Fittings are manufactured from corrosion-resistant stainless steel.

KF-50 Centering Ring Nozzle, with a Viton O-Ring
ISO-KF Flange Size: NW-50

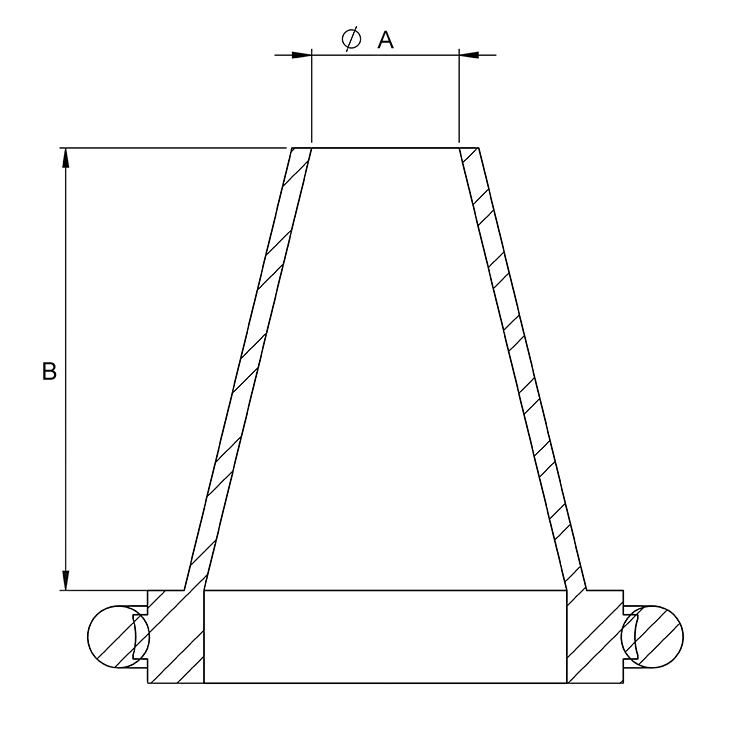

Common Dimensions: A=0.5 inch (12.7 mm); B= 0.5 inch (12.7 mm)


Press ESC to Close




Availability Of Kit Components

Kit: P108759 - Centering Ring Nozzle, ISO-KF Flange Size NW-50, 0.5" Cone, Stainless Steel, VITON O-Ring
Component
Desc.
Req'd
Avail
Centering Ring Nozzle, ISO-KF Flange Size NW-50, 0.5" Cone, Stainless Steel, NO O-RING
1
33
Centering Ring O-Ring Viton Replacement, KF-50 Vacuum Fittings, ISO-KF Flange Size NW-50
1
331
PDF Logo RoHS Compliance Download

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
