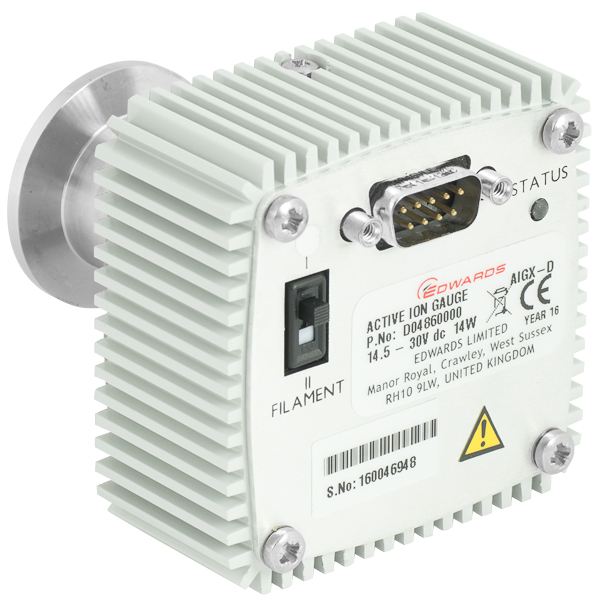

Edwards AIGX-D Active ION Gauge dual yttria coated iridium filaments NW25, KF25, Flange. 10-2 Torr to 10-10 Torr
Edwards Part Number D04860000
The Edwards compact Active ion gauge with dual yttria coated iridium filaments, a wide measuring
range from 5 x 10
-2 Torr to 5 x 10
-10 Torr and a 1 Volt/decade linear
output.
The new AIGX-D gauge from Edwards incorporates all the benefits of the industry standard
Active gauging concept, with integral electronics and
a user replaceable sensor tube. The gauge has a
degas facility and includes features to protect and extend the life of the filaments.
The AIGX-D benefits from extremely low emissions of charged particles, which makes it an
excellent choice for processes where background noise is undesirable. Signal electrical cable (9-way "D" type male) and controller or power supply not supplied.
For more specs and functions of this AIGX-D Active ION gauge, download the instruction manual .pdf below at AVAILABLE DOWNLOADS:
Features Include:
- Full 8 decade pressure measurement from 5 x 10-2 to 5 x 10-10 Torr
- Up to thirty fold reduction in charged particle process
contamination compared to leading competitors
- User interchangeable ion sensor tube
- CSA, C/US approved
- Automatic filament protection against switching on at
ATM and running or degassing at high pressure
