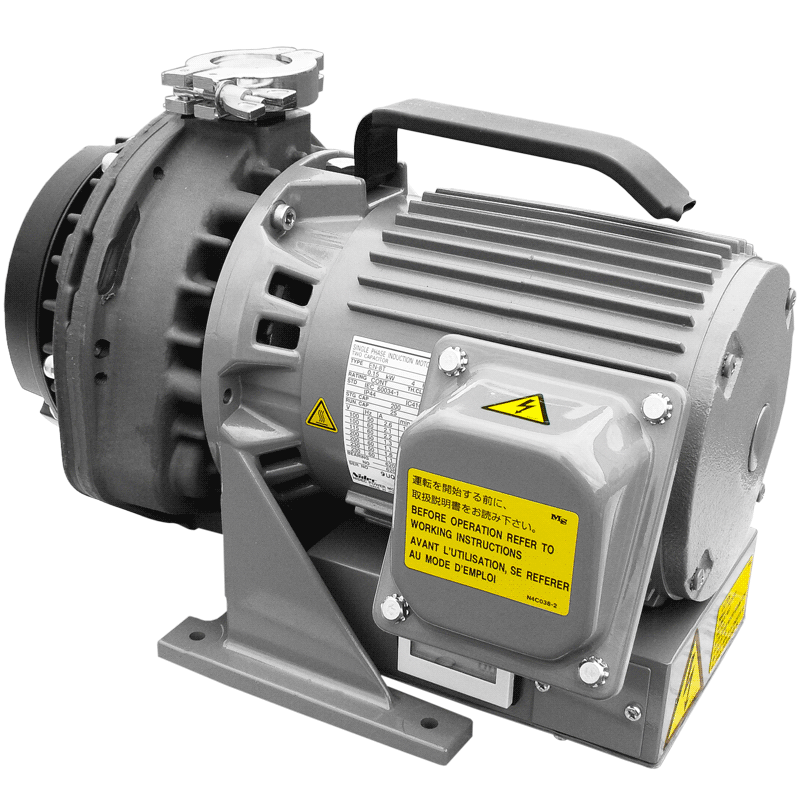

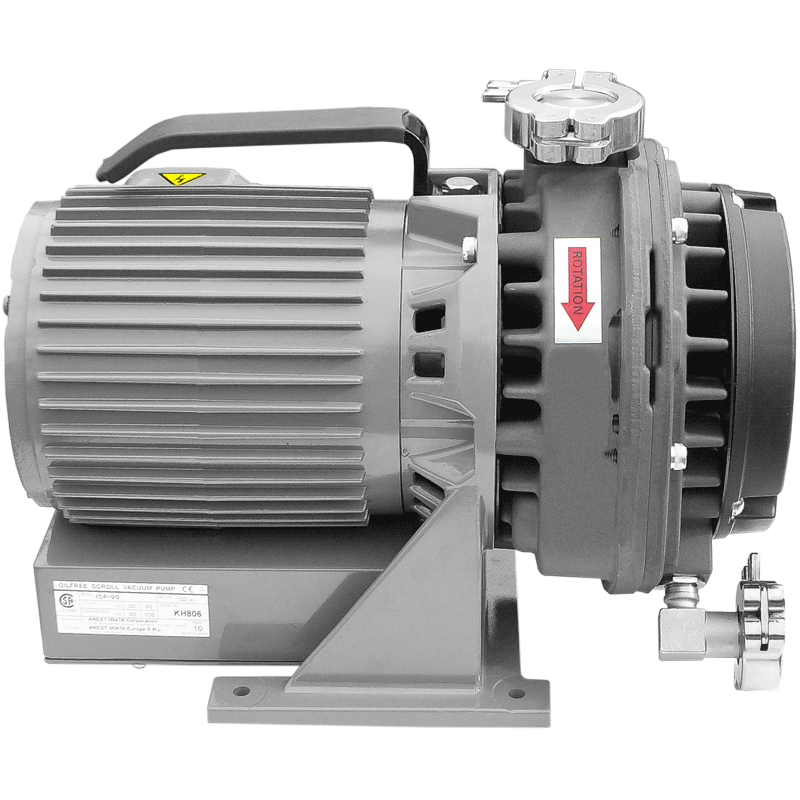

Anest Iwata ISP-90 ISP90 Oil-Free Dry Scroll Vacuum Pump, KF-25 Inlet, Single Phase, 115/230 VAC, set to 115 VAC.
Anest Iwata Part Number: ISP-90.
The Anest Iwata ISP-90 dry scroll vacuum pump is economical and inexpensive to operate. Offers high performance, compact design and very light. Little routine maintenance, no oil changes, filters or foreline traps to replace. These Anest Iwata ISP-90 oil-free dry scroll vacuum pumps are an excellent alternative to oil sealed rotary vane pumps. These Anest Iwata ISP-90 oil-free dry scroll pumps operate on 1-phase, 100-115 or 200-230 VAC, 50/60 Hz, set to 115 VAC. Displacement for this ISP-90 is 3.8 CFM at 60 Hz. The operating Instructions manual is available for download in PDF format below.
APPLICATIONS
- Sputtering equipment, Vacuum deposition equipment, Ion plating equipment
- Accelerator, Synchrotron Radiation
- Surface modification, Electron beam process
- Gas recovery devices
- Vacuum equipment
- Leak detectors
- Device handling system
- Vacuum furnace, Heat treatment furnace
- Laboratory use
- Vacuum packaging machine
The Anest Iwata ISP series of vacuum pumps offer a clean vacuum environment and eliminate the nuisance of cumbersome lubricant maintenance or sealing water administration. The ISP series is free from installation restrictions because of its air-cooled system. ISP vacuum pumps maintain low power consumption from atmosphere to maximum pressure.
