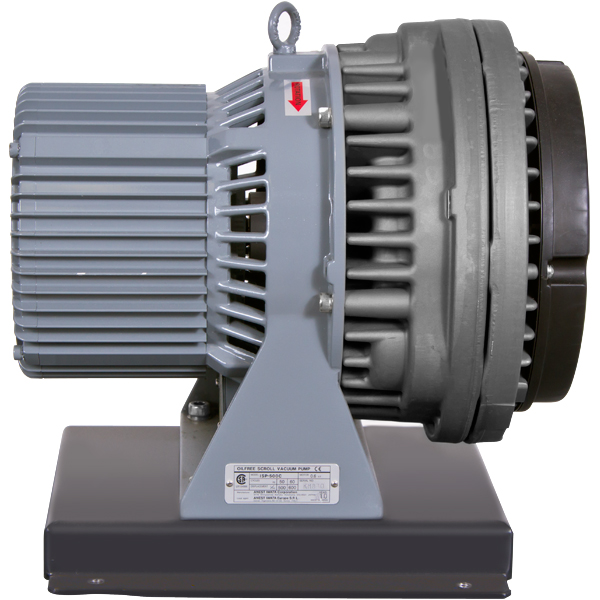

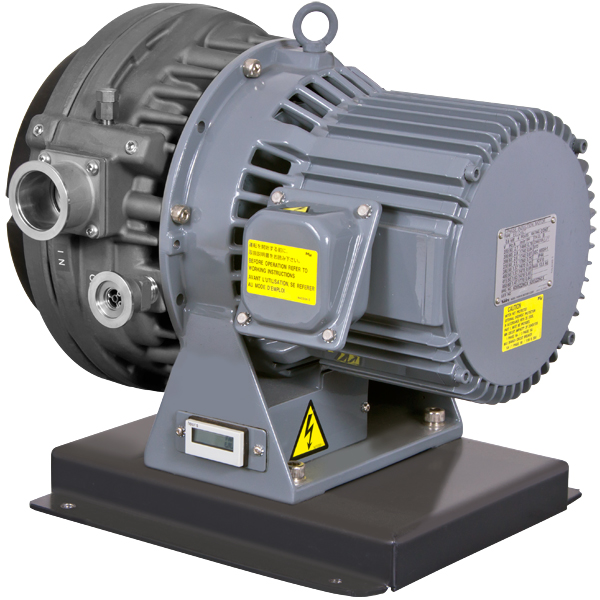

Anest Iwata ISP-500C Oil-Free Dry Scroll Pumps, KF-40 Inlet, Single Phase 115/230 VAC, set to 200-230 VAC.
Anest Iwata Part Number: ISP-500C-SV.
The Anest Iwata ISP-500C is economical and inexpensive to operate. Offers high performance, compact design and very light. Little routine maintenance, no oil changes, filters or foreline traps to replace. Excellent alternative to oil sealed rotary vane pumps. These Anest Iwata ISP-500C oil-free dry scroll pumps operate on a single phase, 100-115 or 200-230 VAC, 50/60 Hz, set to 200-230 VAC. Displacement for this Anest Iwata ISP-500C is 21.2 CFM at 60hz. This pump has a 1-Phase motor. The part number ISP-500C-SV specifies Single-Phase (S) with vertical oriented intake flange (V). The operating instructions manual is available for down in PDF format below.
APPLICATIONS
- Sputtering equipment, Vacuum deposition equipment, Ion plating equipment
- Accelerator, Synchrotron Radiation
- Surface modification, Electron beam process
- Gas recovery devices
- Vacuum equipment
- Leak detectors
- Device handling system
- Vacuum furnace, Heat treatment furnace
- Laboratory use
- Vacuum packaging machine
The Anest Iwata ISP series of vacuum pumps offer a clean vacuum environment and eliminate the nuisance of cumbersome lubricant maintenance or sealing water administration. The ISP series is free from installation restrictions because of its air-cooled system. ISP vacuum pumps maintain low power consumption from atmosphere to maximum pressure.
