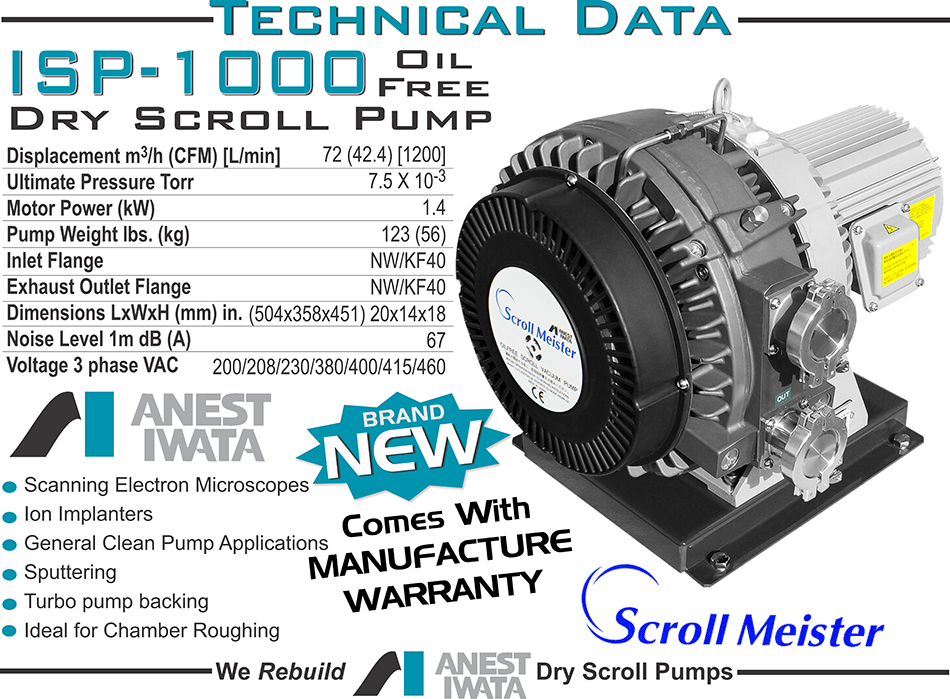

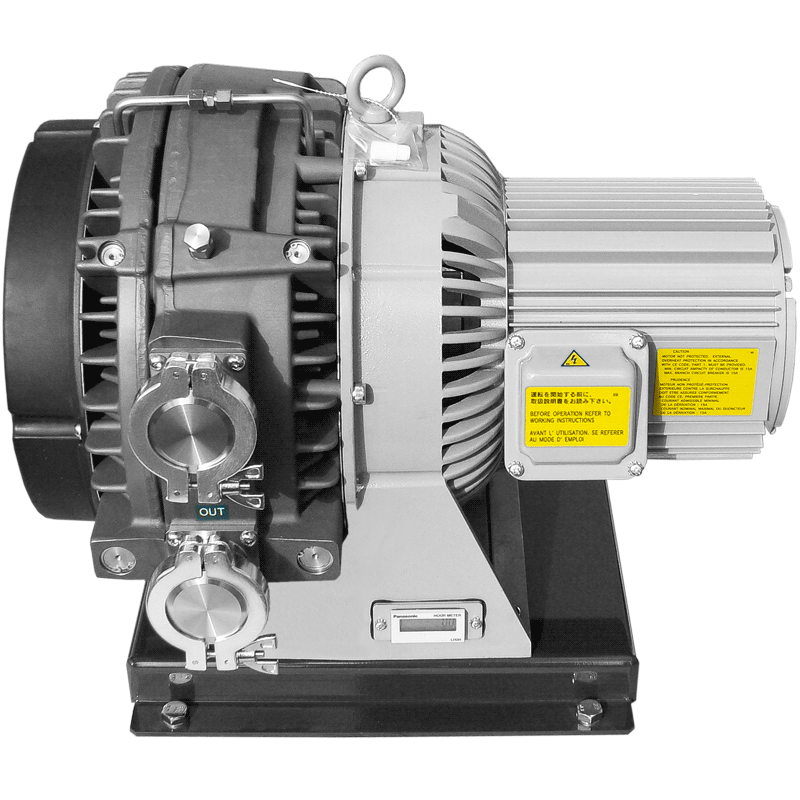

Anest Iwata ISP-1000 Oil-Free Dry Scroll Vacuum Pump, KF-40 Inlet, 3-phase, 200-230 VAC, & 50/60 Hz.
Anest Iwata Part Number: ISP-1000E-TH.
The Anest Iwata ISP-1000 is economical and inexpensive to operate. Offers high performance, compact design and very light. Little routine maintenance, no oil changes, filters or foreline traps to replace. Excellent alternative to oil sealed rotary vane pumps. These Anest Iwata ISP-1000-TH oil-free dry scroll pumps operate on 3-phase, 208-230 or 380-480 VAC, & 50/60 Hz. Displacement for this Anest Iwata ISP-1000-TH is 42.4 CFM at 60 Hz. This pump has a 3-Phase motor. The part number ISP-1000E-TH specifiies Three-Phase (T) with Horizontal oriented intake flange (H). The operating instructions manual is available for down in PDF format below.
Anest Iwata ISP-1000-TH oil-free dry scroll pumps have a pumping speed of 42.4 CFM at 60hz and reach an ultimate vacuum of 7.5x10-3 Torr. The Anest Iwata ISP-1000-TH is economical and inexpensive to operate, offers high performance, compact design and very light. Little routine maintenance, no oil changes, filters or foreline traps to replace make the Anest Iwata an excellent alternative to oil sealed rotary vane pumps.
