Agilent Varian VHS10 VHS400 Diffusion Pump Heater 240VAC, 2200W, 9.2A, 26 Ohms, 1 ea., 647310150


Agilent Varian VHS10 VHS400 Diffusion Pump Tubular Heater 240VAC, 2200W, 9.2A, 26 Ohms, Per Heater,
PN 647310150 (sold as one each)

These Agilent Varian VHS-10 and VHS-400 diffusion vacuum pump Tubular-Style replacement heaters are for use with 240 VAC input power. These heaters pull 2200 Watts, 9.2 Amps and have a room temperature resistance of 26 Ohms. These heaters are designed to be operated by 240 VAC, two heaters are required for (4400 Watts of heating power). For heater assembly replacement instructions see page 43 in the instruction manual .pdf below. The Agilent Varian part number for this heater is 647310150. Other diffusion pump accessories are available on this web site.



Press ESC to Close


ITEM DESCRIPTION PART NO.

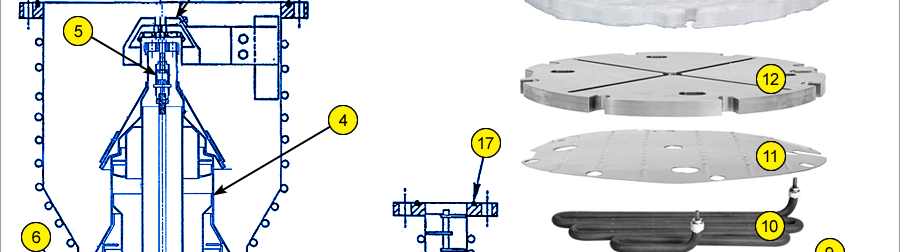

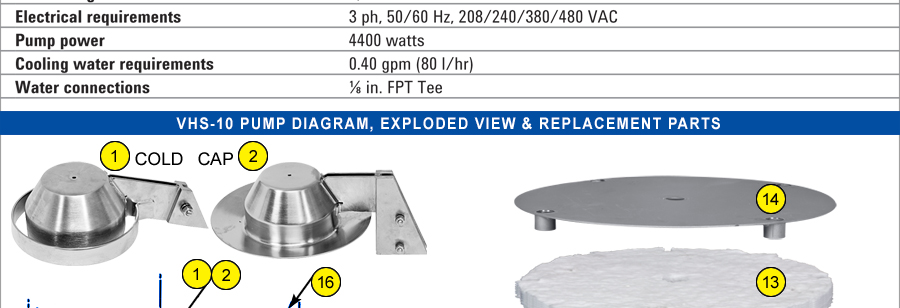

1 Standard Cold Cap Assembly F0429301
2 Extended Cold Cap Assembly L8917301
3 Sight Glass Repair Kit consisting of:
Sight GlassL8816001
Gasket, TeflonL9694001
O-ring, Viton, Parker No. 2-113ComI
O-ring, Viton, Parker No. 2-226ComI
L8908301
4 Jet Assembly F0428401
5 Jet Coupling L6367301
6 Splash Baffle F0431301
7 Foreline Baffle Assembly F0435301

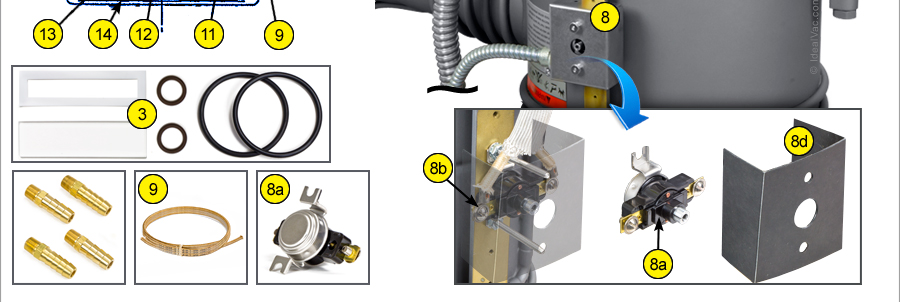

8 Thermal Switch Includes:
8a - Switch (set at 300°F – 147°C)642906025
8b - Lug648056680
8c - Wire656179100
8d - Box Insulator89867001
L8912301
9 Heater wire, 10 AWG, 42 inches (3 per pump required) X3901-68003
Heater Wiring Kit, Includes:
15 ft. wire
Nickel lug648056680
Terminal Strip Molex 39100-1512648091065
L8913301
10 Heaters (two heaters required per pump)
208 V / 2200 watt Heater Element647310140
240 V / 2200 watt Heater Element, 1Ph647310150
380 V / 2200 watt Heater Element647310160
480 V / 2200 watt Heater Element, wired open Delta, unbalanced load647310170
208 V / 2550 watt Heater Element647310145
240 V / 2550 watt Heater Element, 1Ph647310155
380 V / 2550 watt Heater Element, wired open Delta, unbalanced load647310165
480 V / 2550 watt Heater Element, wired open Delta, unbalanced load647310175
11 Heater Crush Plate (replace when either heater is replaced) K7667001
12 Heater Clamping Plate A36 Steel K4928001
12 Heater Clamping Plate Retrofit, Slotted R2667301
13 Heater Insulating Blanket L8914001
14 Heater Cover L8903301
15 O-Ring Kit includes:
  • 1 inlet flange O-ring, Butyl No. 2-385
  • F0430001
  • 1 foreline flange O-ring, Butyl No. 2-338
  • 660893338
  • 10 Viton fill and drain O-rings (old style), Viton No. 2-112
  • 10 Viton fill and drain O-rings (new style, Viton No. 2-113
  • 1 Sight glass O-ring, Parker No. 2-226
  • 1 PTFE gasket
  • K0377169
    16 Viton Centering ring for ISO inlet flange, 320K
    17 Centering ring for ISO foreline flange ISO-63K IC063SV
    Included with the pump
    1 inlet flange O-ring, Butyl No. 2-385F0430001
    1 Butyl foreline flange O-ring, Butyl No. 2-338660893338
    3/8 Hose 1/8 Pipe Barbed Connectors264301102
    Installation and Operation Manual-download from www.agilent.com/chem/vacuum699901023
    DC-702 diffusion pump fluid, 500 cc (2 required) 695472005
    DC-704 diffusion pump fluid, 500 cc (2 required) 695474005
    DC-705 diffusion pump fluid, 500 cc (2 required) 695475005
    PDF Logo Agilent Varian VHS-10, VHS-400 High Vacuum Diffusion Pump Manual.pdf
