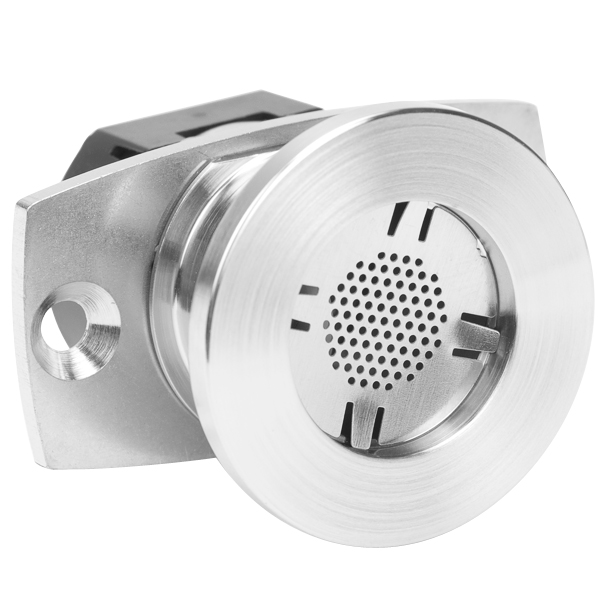

Agilent Varian PCG-752 Pirani Capacitance Diaphragm Gauge Replacement Sensor with Nickle Filament.
Pressure Range Atm to 3.8 X 10-5 Torr, KF16, Agilent Varian PN PCG752KF16RS.
This Agilent Varian Nickle Replacement Sensor is for the PCG-752 Pirani CDG Gauge with KF16 Flange. This filament sensor is replaceable by the user. The gauge can measure pressure from 3.8 X 10-5 Torr to atmosphere. This PCG gauge is a combination gauge consisting of a Pirani sensor and a diaphragm capacitive sensor. Both sensors are constantly active. At low pressures, only the signal of the Pirani sensor is used for pressure measurement; at high pressures, only the signal of the diaphragm capacitive sensor is used. To determine the output signal in the intermediate range, both signals are used proportionally to the pressure.
This is the replaceable Nickle sensor with the KF16 flange. This replacement sensor is for the PCG-752 Pirani CDG combination gauges only. Signal cables and pressure controllers sold separately on this website. Agilent Varian Part Number PCG752KF16RS. A complete Operating Instruction Manual and Spec Sheet is available for download in .pdf format below under AVAILABLE DOWNLOADS.
Compatible with PCG-752 Pirani CDG gauges (with Nickle filament) Part Numbers:
- PCG752KF16
- PCG752KF16SD1
- PCG752KF16SD2
- PCG752KF16SD3
- PCG752KF16SP
