| ITEM |
DESCRIPTION |
PART NO. |
| 1 |
Standard Cold Cap Assembly |
77252801 |
|
Water-cooled Halo Baffle |
K1856332 |
|
|
Cold Cap Connectors & Gaskets
| Gasket/Grommet (Kit of 4) | L8839301 |
| Nut & Follower (Brass) | L8840301 |
| Brass Female Coupling | 622445026 |
|
|
| 3 |
Jet Assembly |
76511301 |
| 4 |
1 Buna O-ring for ASA inlet flange |
78536002 |
| 5 |
Foreline Baffle Assembly |
|
| 6 |
Centering ring for ISO foreline flange, 200K |
IC200SV |
| 7 |
Sight Glass Service Kit for Pumps Built Before Oct. 1995:
| 3 Glass Tubes | F1755008 |
| 2 Brass Union 1/4 OD x 1/4 MPT | 622568108 |
| 2 Brass Elbow 69FL 6x4, 169VL6-4 | 623451012 |
| 8 O-ring, Viton, Parker No. 2-011 | 660892011 |
| 8 O-ring, Viton, Parker No. 2-111 | 660892111 |
| 3 O-ring, Viton, Parker No. 2-221 | 660892221 |
| 3 O-ring, Viton, Parker No. 2-213 | 660892213 |
|
F6097301 |
| 7 |
Sight Glass Service Kit for Pumps Built After 1995 |
L9223001 |
| 8 |
Threaded Plugs, fill and drain |
77261001 |
|
Hose Barb 1/2in Hose to 3/8in Pipe |
624301111 |
| 9 |
Upper (water) Thermal Switch (Set at 220°F/104°C) |
K9050003 |
| 9 |
Lower (boiler) Thermal Switch (Set at 550°F/288°C) |
K9050004 |
| 10 |
Thermal Switch Brass Block |
F6253001 |
| 11 |
Heater wire, 10 AWG, 196 inches (2 per heater required) |
X3900-68003 |
| 11b |
Heater Wiring Connection Box |
|
| 12 |

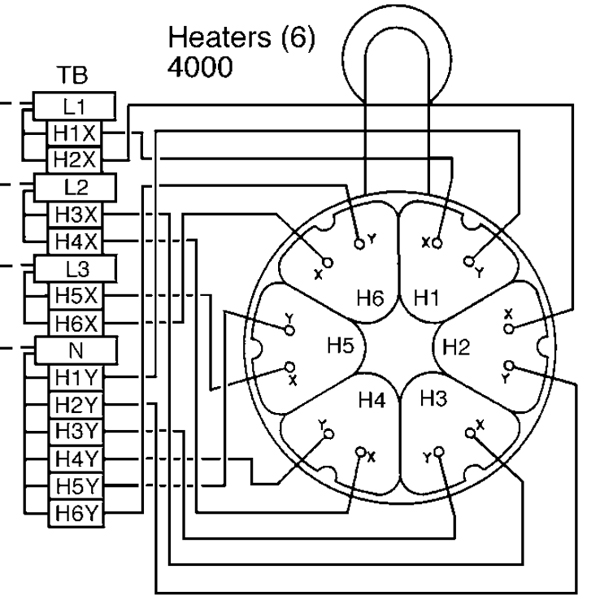

Heaters (six heaters required per pump, same voltage)
| 240V/415V/480V, 4000 watt Heater Element w/ leads | 647332010 |
| 200V, 4000 watt Heater Element | 647332020 |
| |
| Heater Retrofit for pumps built bef. May 1990 |
| 240V/451V/480V, 4000W Heater no leads (1 consists of 2-120V heater) | 647332075 |
| |
| Heater Kits (clamping plates not included) |
| 240V Heater Retrofit Kit HS-32 Pump | L6517308 |
| 415V Retrofit Kit HS-32 Pump | L6517326 |
| 480V Retrofit Kit HS-32 Pump | L6517309 |
|
|
| 13 |
Heater Crush Plate (Six required per pump) |
K7246001 |
| 14 |
Heater Clampling Plate (Six required per pump) |
K7247001 |
| 15 |
Heater Insulator (One required per pump) |
75792001 |
| 16 |
Cover Plate |
75791001 |
|
Heat Shield (Reusable) |
L6370001 |
|
O-Ring Kit for ASA Pumps includes:
| 1 Butyl O-ring for ASA inlet flange | 45390001 |
| 1 Butly O-ring foreline flange (2-2443) | 660893267 | |
| 8 Viton O-rings fill and drain (2-213) | 660892213 |
| 4 Viton O-rings fill and drain (2-221) | 660892221 |
| 1 Sight glass O-ring (2-240) | 660892240 |
| 1 Graphite sight glass gasket | L9228001 |
|
K0377167 |
|
DC-702 diffusion pump fluid, one-gallon |
695472008 |
|
DC-704 diffusion pump fluid, one-gallon |
695474008 |
|
DC-705 diffusion pump fluid, one-gallon |
695475008 |
|
Installation and Operation Manual-download from www.agilent.com/chem/vacuum |
699901140 |
