Condition:
  New
Part Number:
  P107238
Warranty:
  Varian Warranty

Available Now:
1  



$1,516.54


Print Version

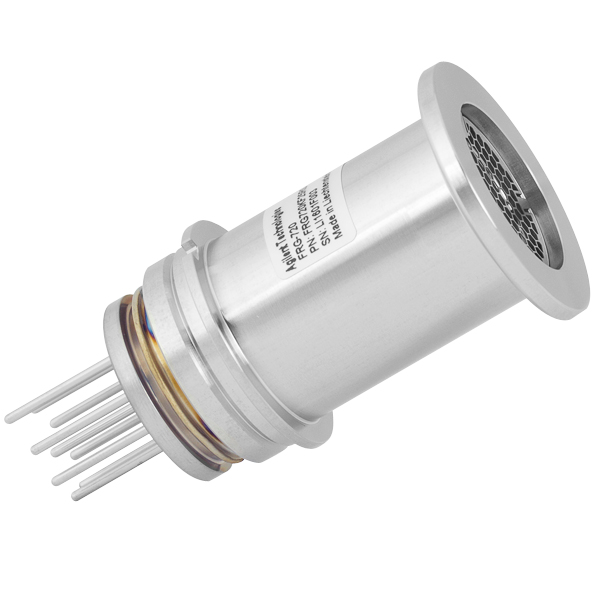

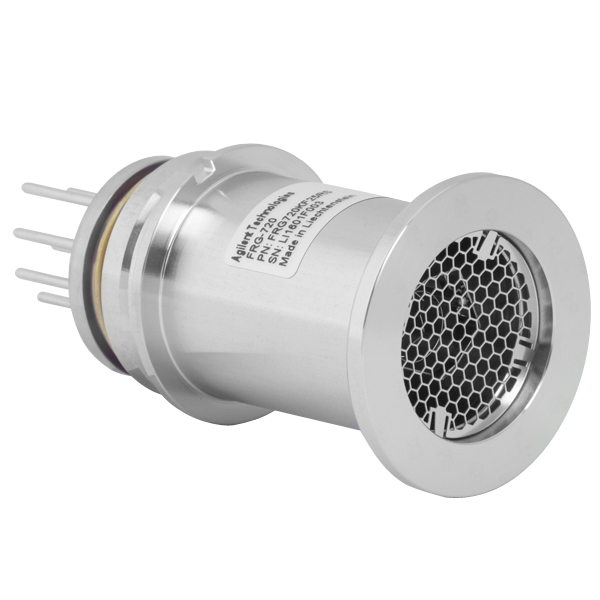

Agilent Varian FRG-720 KF25 Bayard Alpert, Pirani, Single Filament Replacement Sensor FRG720KF25RS


Agilent Varian FRG-720 Pirani and Bayard Alpert SINGLE Filament Replacement Sensor. Hot Cathode Ion, 760 to 3.8 X 10-10 Torr,
NW25 KF25 Flange.
Agilent Varian PN FRG720KF25RS.

This Agilent Varian Single Filament Replacement Sensor is for the FRG720 Bayard Alpert and Pirani Combination Gauge with a NW25 KF25 Flange. This filament sensor is replaceable by the user. The gauge can measure pressure from 3.8 X 10-10 Torr to atmosphere. Over the whole measuring range, the gauge has a continuous characteristic curve and its measuring signal is output as logarithm of the pressure. The gauge functions with a Bayard-Alpert hot cathode ionization measurement system (for < 2.0×10-2 Torr) and a Pirani measurement system (for >5.5×10-3 Torr). In the overlapping pressure range of 2.0×10-2 to 5.5×10-3 Torr, a mixed signal of the two measurement systems is output. The hot cathode is switched on by the Pirani measurement system only below the switching threshold of 2.4×10-2 Torr (to prevent filament burnout). It is switched off when the pressure exceeds 3.2×10-2 Torr.

This is the replaceable single filament sensor with the NW25 KF25 flange. This replacement sensor is for the FRG720 combination gauges only. Signal cables and pressure controllers sold separately on this website. Agilent Varian Part Number FRG720KF25RS. A complete Operating Instruction Manual and Spec Sheet is available for download in .pdf format below under AVAILABLE DOWNLOADS.

Compatible with FRG720 Single Filament Combination Gauge Part Numbers:
  • FRG720KF25
  • FRG720KF25D
  • FRG720KF25SP



Press ESC to Close


PDF Logo Varian FRG-720, FRG-730 Bayard-Alpert Pirani Gauge Data Sheet.pdf

PDF Logo Agilent Varian FRG-720 Bayard-Alpert Pirani Gauge.pdf

PDF Logo Agilent XGS-600 Gauge Controller Brochure.pdf
