Agilent Varian AGC-100 Active Vacuum Pressure Gauge Controller Unit, Single Channel, One Vacuum Sensor
Compatible with FRG 700/702/720/730, PCG750, PCG752, PVG500, PVG502, PVG550, PVG552, and CDG500
Agilent Varian Part Number AGC100

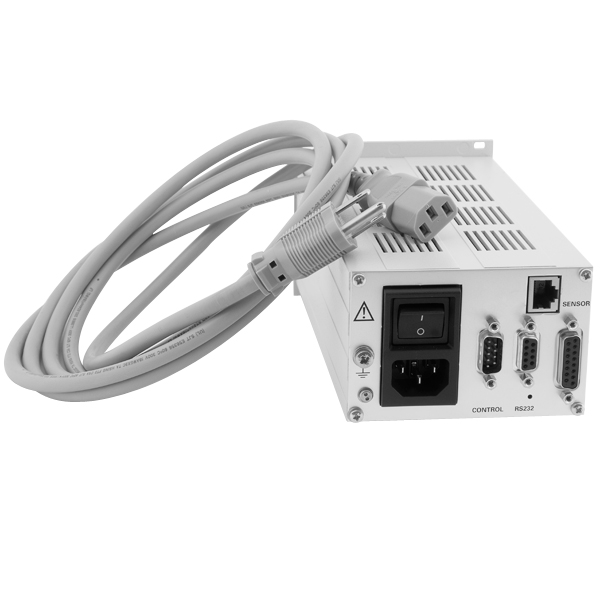

The Agilent Varian AGC-100 active gauge digital control unit is used together with Agilent Varian vacuum gauges for total pressure measurement system. This single channel controller unit will measure pressure from either FRG, PCG, PVG and CDG Agilent Varian active vacuum gauges sensors and has adjustable set point control. The AGC-100 is suited for incorporation into a 19" rack or a control panel or for use as desk-top unit.

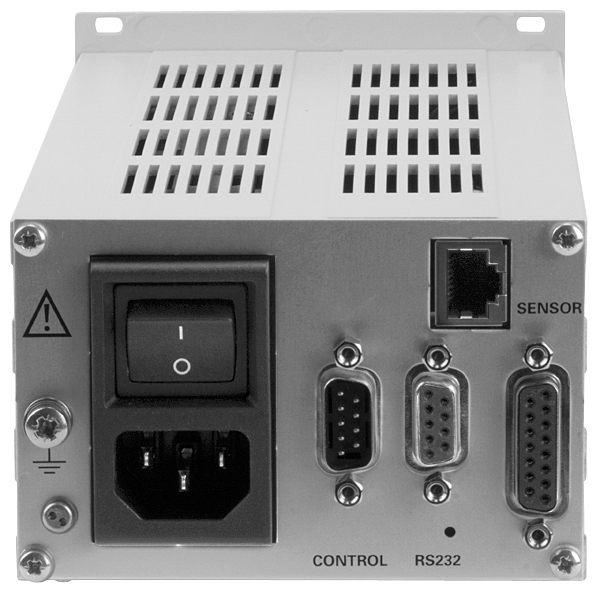

The Agilent Varian AGC-100 has provisions for 2 different type gauge sensor connections. The first is the 15 pin D-Sub female connector. The Second is the RJ45 8 pin female connector. CAUTION: Only one gauge sensor should be connected at any time, connecting two gauge sensors may cause gauge damage. Pressure range is from 10
3 Torr to 10
-10 Torr depending on sensor gauge. Pressure Units are measured in mbar, Pa, Torr, or Micron. Input voltage is 90-250 VAC 50/60 hz. For a complete .pdf instruction manual on the AGC-100 scroll down to (AVAILABLE DOWNLOADS)
The following Agilent Varian gauge sensors are compatible with the AGC-100:
- Pirani PVG (PVG-500, PVG-502, PVG-550, PVG-552)
- Pirani/Capacitive PCG (PCG-750, PCG-752)
- Capacitive CDG (CDG-500)
- Cold cathode/Pirani FRG (FRG-700, FRG-702)
- Hot cathode/Pirani FRG (FRG-720, FRG-730)
