Swagelok SS-400-2-6 Tube Fitting, 90° NPT Elbow, 3/8 in. Male NPT to 1/4 in. OD Tubing, Stainless Steel, Gaugeable
Swagelok PN: SS-400-2-6

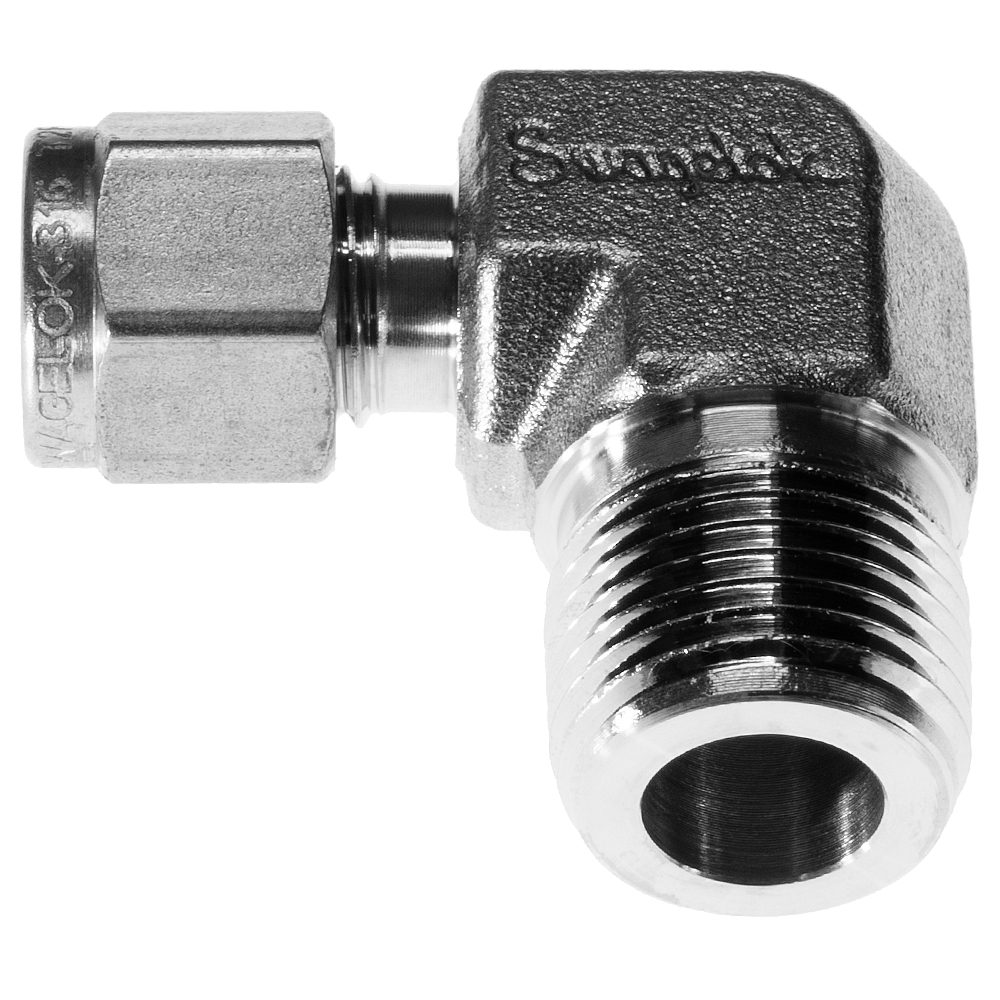

This Swagelok® 90° NPT Elbow connects a 1/4 in. OD Tube to a 3/8 in. male NPT fitting and is made of 316 stainless steel. Includes nuts and ferrule. Nut threads are silver plated to prevent galling and seizing of the fitting when tightened.
These industry standard Swagelok compression-type fittings and components are precision manufactured and offer a gas-tight, metal-on-metal seal. They are available in standard fractional tubing sizes for making up stainless steel tubing. Polished surface finishes and high purity materials virtually eliminate these fittings as a source of system contamination.
They can be used for any fluid flow application and provide leak-tight service from vacuum to positive pressure. These fittings offer consistent gaugeability upon initial installation and are easy to disconnect and retighten reliably.
The ferrule design of these fittings are easy to install and no torque is transmitted to the tubing during installation. The ferrules separate sealing and tube gripping functions; ferrules are optimized for its function. Available Swagelok gap inspection gauges assure sufficient pull-up upon initial installation.
Swagelok tube fitting ends are rated to the working pressure of tubing as listed in the Swagelok Tubing Data PDF, available here for download.
Fitting specifications are shown in the second image.
