Condition:
  New
Part Number:
  P1011776
Warranty:
  Against Product Defect

Available Now:
1  

RoHS Compliance Sticker


$201.46


Print Version

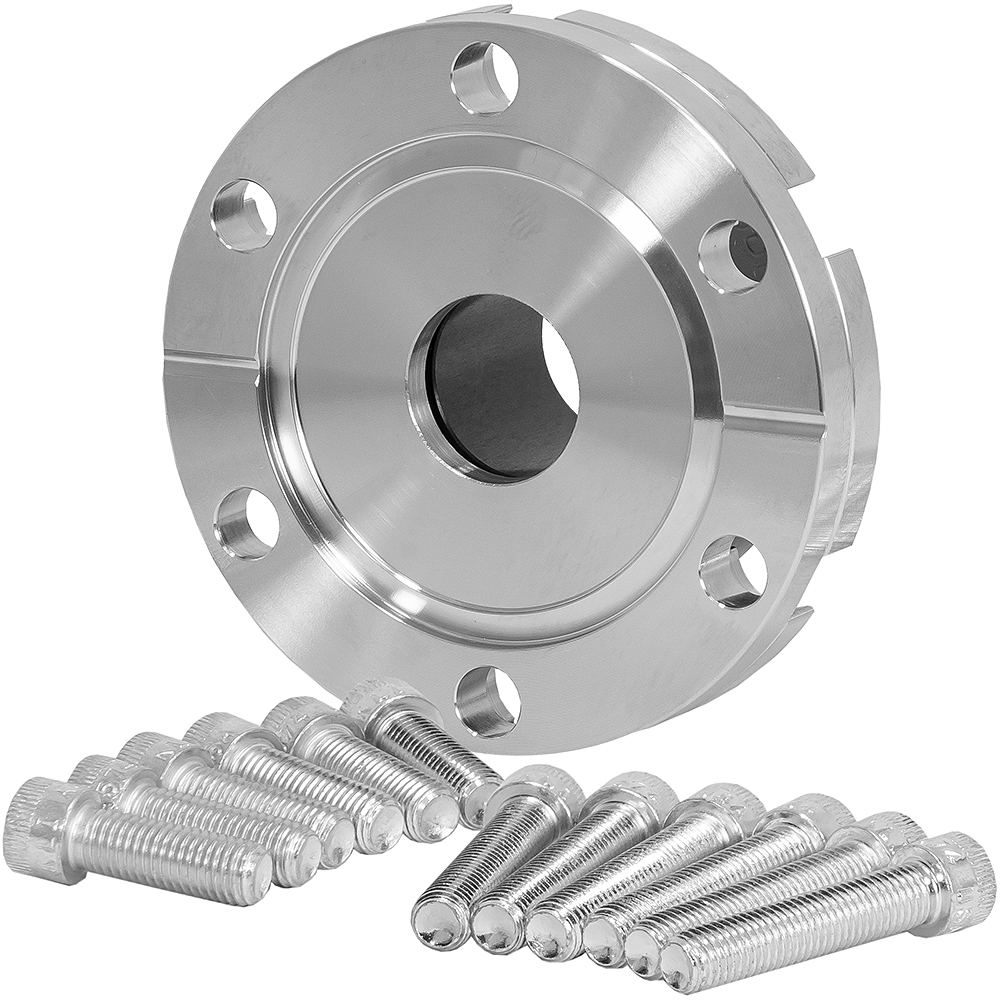

CF 2.75, 1 in. Optic Mount, Fits Variable Thickness and Wedged Optics, Viton Seal, Mounting Screws Included


CF 2.75, 1" Optic Mount, Fits Variable Thickness and Wedged Optics, Viton Seal, Mounting Screws Included

These mirror mounts are designed for use in vacuum systems with a conflat CF 2.75 flange and can accept 1.0" OD optics of with a variety of thicknesses (0.07" - 0.50") with or without a small wedge (< 2°). The optic is held in place with a non-marring Viton seal on a knurled aluminum knob for easy optic removal and replacement. These mounts may be heated and baked out up to 150 °C. Mounting screws are included for connections to both tapped and through-hole conflat flanges.


Press ESC to Close


PDF Logo RoHS Compliance Download

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
