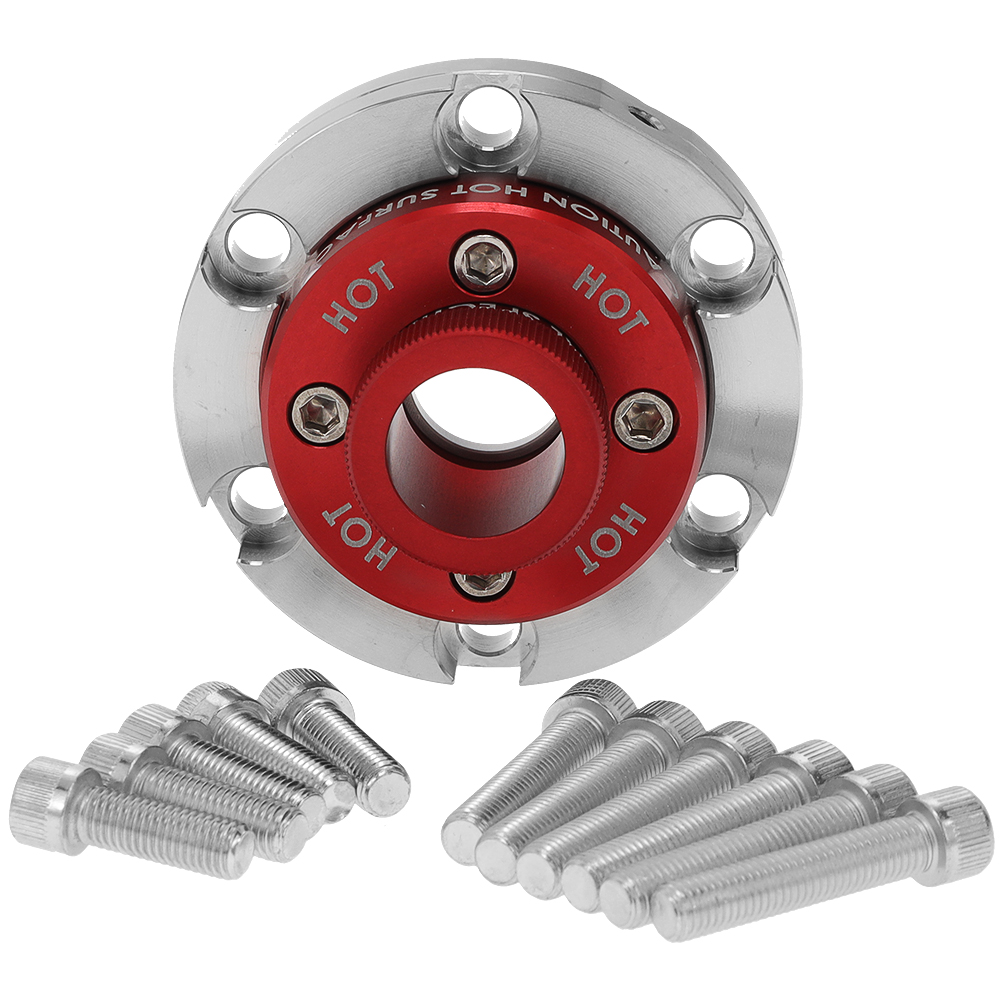

These mirror mounts are designed for use in vacuum systems with a conflat CF 2.75 flange and can accept 1.0" OD optics of with a variety of thicknesses (0.07" - 0.50") with or without a small wedge (

These mirror mounts are designed for use in vacuum systems with a conflat CF 2.75 flange and can accept 1.0" OD optics of with a variety of thicknesses (0.07" - 0.50") with or without a small wedge (

These mirror mounts are designed for use in vacuum systems with a conflat CF 2.75 flange and can accept 1.0" OD optics with a variety of thicknesses (0.07" - 0.50") with or without a small wedge (

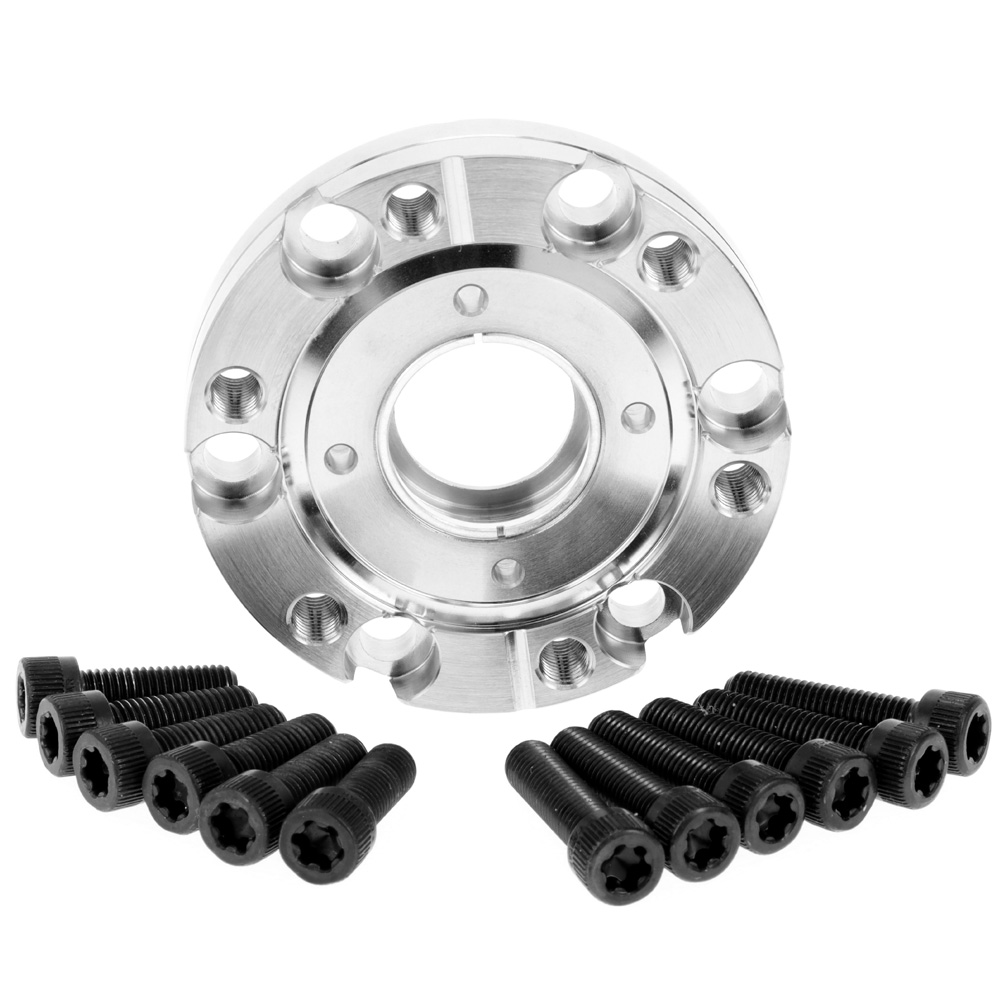

These 1.0” optic mounts are machined into a stainless steel double sided conflat 2.75” flange designed for inline use in Ultra High Vacuum (UHV) systems. The optic may be up to 1.0” OD and up to 0.35” thick. It is held in place with a non-anodized aluminum SM1 retaining ring for easy removal and replacement. The kit includes ¼”-28 socket head screws that accept an IP30 Torx bit, with lengths suitable for mounting to tapped or through-hole flanges. Pair these optic mounts with any of our zero-length UHV compatible viewports to make an UHV optical system.

These adjustable mirror mounts are designed for use in vacuum systems with a conflat 2.75 flange and can accept a 1.0" OD optic. The optic is held in place between a large diameter o-ring and a brass backing. The 3 adjusment knobs work against the brass backing, allowing for easy variation in the optic's angle without the need to break vacuum. The purgable version comes with a tube welded into the flange, allowing gas to be admitted directly to the optic situated in the mount. Optional mirror precision actuators are available, which allow absolute and precise control over the angle of your mounted optics. This is the Mount ONLY.
