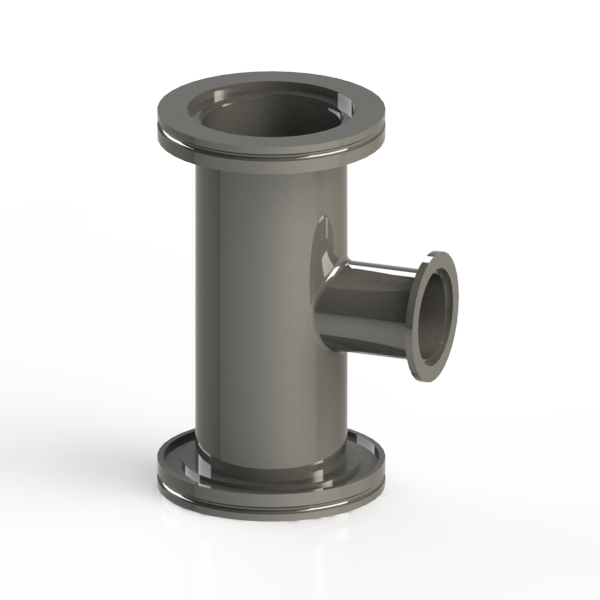

Adaptive Reducing Tee ISO-63 to KF40, ISO MF Interface, LF63 to KF40, Stainless Steel

Adaptive Reducing Tee ISO-63 to KF-40, ISO MF Interface, LF63 to KF40, Stainless Steel

These ISO 63 to KF-40 Adaptive Reducer Tee vacuum fittings follow ISO-KF and LF standards and have a flange size of LF63 to NW-40. They are commonly used to build vacuum plumbing and process systems. They are often called quick flange fittings on the small side and large flange fittings on the large size. (please see top far right figure for connection instructions - click to enlarge). They are made of corrosive resistant 304 stainless steel.

Reducer Tee ISO 63 to KF-40
ISO-KF Flange Cross Size: LF-63 to NW-40
Common Dimensions: A= 3.25"(82mm), B= 2.90"(73mm)

Press ESC to Close

RoHS Compliance Download

P103734.sldprt

P103734.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
