Home > > > Adaptive Reducing Tee ISO-100 to KF40, ISO MF Interface, LF100 to KF40, Stainless Steel

Condition:

New

Part Number:

P103733

Warranty:

Against Product Defect

Available Now: 2
Expecting: 2
Anticipated Arrival: 2 on 2024-03-22

RoHS Compliance Sticker

$456.72

Print Version

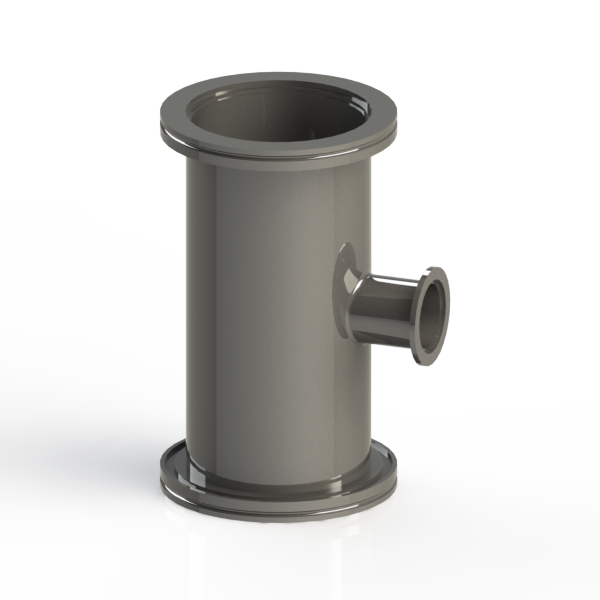

Adaptive Reducing Tee ISO-100 to KF40, ISO MF Interface, LF100 to KF40, Stainless Steel

Adaptive Reducing Tee ISO-100 to KF-40, ISO MF Interface, LF100 to KF40, Stainless Steel

These ISO 100 to KF-40 Adaptive Reducer Tee vacuum fittings follow ISO-KF and LF standards and have a flange size of LF100 to NW-40. They are commonly used to build vacuum plumbing and process systems. They are often called quick flange fittings on the small side and large flange fittings on the large size. (please see top far right figure for connection instructions - click to enlarge). They are made of corrosive resistant 304 stainless steel.

Reducer Tee ISO 100 to KF-40
ISO-KF Flange Cross Size: LF-100 to NW-40
Common Dimensions: A= 4.13"(105mm), B= 3.65"(90mm)

Press ESC to Close

RoHS Compliance Download

P103733.sldprt

P103733.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
