Condition:

New

Part Number:

P104026

Warranty:

Against Product Defect

Available Now: 1

RoHS Compliance Sticker

$706.05

Print Version

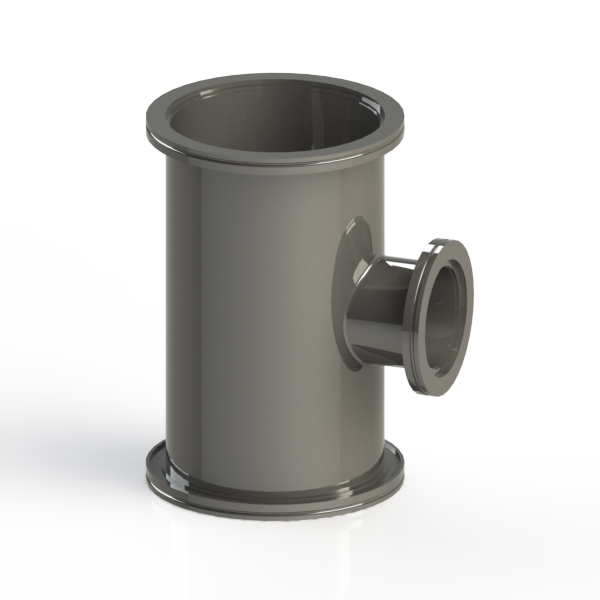

Adaptive Reducing TEE ISO-160 to NW-80, ISO MF Interface, LF160 to LF80, Stainless Steel

Adaptive Reducing TEE ISO-160 to NW-80, ISO MF Interface, LF160 to LF80, Stainless Steel

These ISO 160 to ISO 80 Adaptive Reducer TEE vacuum fittings follow ISO-LF and NW standards and have a flange size of LF160 to LF80. They are commonly used to build vacuum plumbing and process systems. All flange sizes are LF ISO NW on this TEE. (please see top far right figure for connection instructions - click to enlarge). They are made of corrosive resistant 304 stainless steel.

Reducer TEE ISO 160 to ISO 80
ISO-NW Flange Cross Size: LF-160 to LF-80
Common Dimensions: A= 10.50"(267mm), B= 5.00"(127mm)

Press ESC to Close

RoHS Compliance Download

P104026.sldprt

P104026.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
