Home > > > Adaptive Reducing Cross ISO-63 to KF-16, ISO MF Interface, LF63 to KF16, Stainless Steel

Condition:

New

Part Number:

P107206

Warranty:

Against Product Defect

Available Now: 3
Expecting: 1
Anticipated Arrival: 1 on 2025-01-22

RoHS Compliance Sticker

$264.52

Print Version

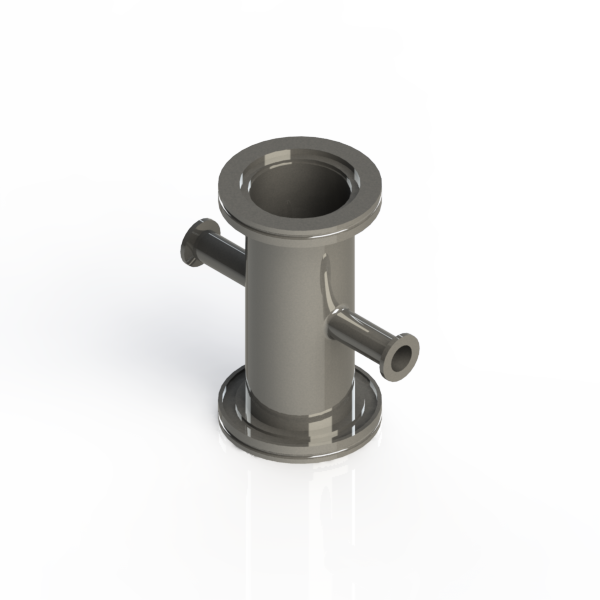

Adaptive Reducing Cross ISO-63 to KF-16, ISO MF Interface, LF63 to KF16, Stainless Steel

Adaptive Reducing Cross ISO-63 to KF-16, ISO MF Interface, LF63 to KF16, Stainless Steel

These ISO 63 to KF-16 Adaptive Reducer Cross vacuum fittings follow ISO-KF and LF standards and have a flange size of ISO LF63 to NWKF-16. They are commonly used to build vacuum plumbing and process systems. They are often called quick flange fittings on the small side and large flange fittings on the large size. (please see top far right figure for connection instructions - click to enlarge). They are made of corrosive resistant 304L stainless steel.

Reducer Cross ISO 63 to KF-16
ISO-KF Flange Cross Size: LF-63 to NW-16
Common Dimensions: A= 3.25"(82.5mm), B= 3.25"(82.5mm)
Tube size: ISO LF-63 2.5", NWKF-16 0.75"

Press ESC to Close

RoHS Compliance Download

P107206.sldprt

P107206.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
