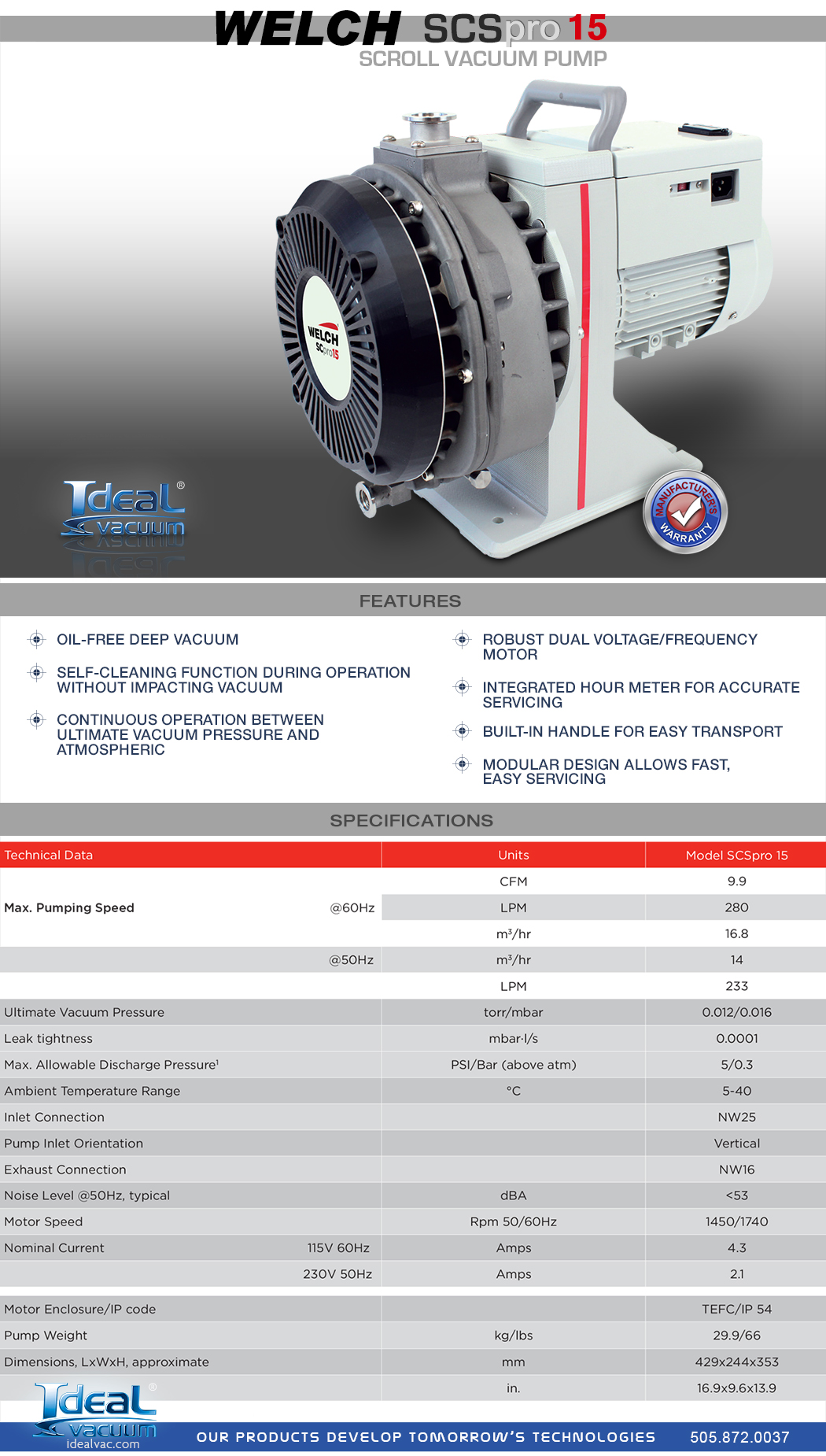

Welch SCSpro 15 Scroll Vacuum Pump, Self Cleaning Air Flush, 230 VAC, 60 Hz, 1P. PN: 5152-01


Welch SCSpro 15 Scroll Vacuum Pump, Self Cleaning Air Flush, 230 VAC, 60 Hz, 1P.
Welch Part Number: 5152-01.

Welch SCSpro 15 has a built-in self-cleaning air flush that removes liquefied vapors that can condense in pump from a trapped application. The air flush function doesn’t impact vacuum performance of pump. Welch SCSpro 15 dry scroll vacuum pump generates a maximum pumping speed of 250 lpm and vacuum to 0.012 Torr(0.016 mbar). The oil-free scroll pump generates a vacuum by continuously moving pockets of captured gas that enters inlet to exhaust port via two-sided spiral mechanism.

The scroll pump is an alternate solution to oil-sealed rotary vane pumps. Common applications include freeze dryer with ultra-low temperature condenser, glove box, cold trapped vacuum oven or degassing chamber, turbo backing, and evacuation of cryogenic lines.

    FEATURES
  • Oil-free deep vacuum
  • Self-cleaning function during operation without impacting vacuum
  • Continuous operation between ultimate vacuum pressure and atmospheric
  • Robust dual voltage/frequency motor
  • Integrated hour meter for accurate servicing
  • Built-in handle for easy transport
  • Modular design allows fast, easy servicing
  • Scroll and body are made of anodized aluminum
  • Tip seal is made from PTFE composite
  • Exhaust valve is made with FKM
  • Inlet and exhaust ports are made from cast stainless steel



Press ESC to Close


PDF Logo Welch SCSpro 15 Operation Manual.pdf
