Welch CRVpro2 Direct Drive Dual Stage Mechanical Rotary Vane Vacuum Pump. Includes vacuum inlet hose bard for rubber hose from (5/8 to 3/4 in. ID) and a charge of oil.
2-Stage 115VAC Welch Part Number 3021-01
The Welch CRV pro2 series direct drive rotary vane pumps offer superior reliability, long service life and can handle a variety of low vacuum needs. The Welch CRV pro series pumps are factory prepared with oil cases coated with PTFE (Polytetrafluoroethylene) commonly know as TeflonŽ. The outer surface of the pumping module also has a black oxide surface. Both coatings act to slow down metal corrosion.
The CRV series have the unique feature of a much larger oil capacity than pumps of similar size. These pumps also run 10°C cooler than similar pumps from having a chemically resistant coating in the oil case and on the pump module, further protecting them from corrosion.

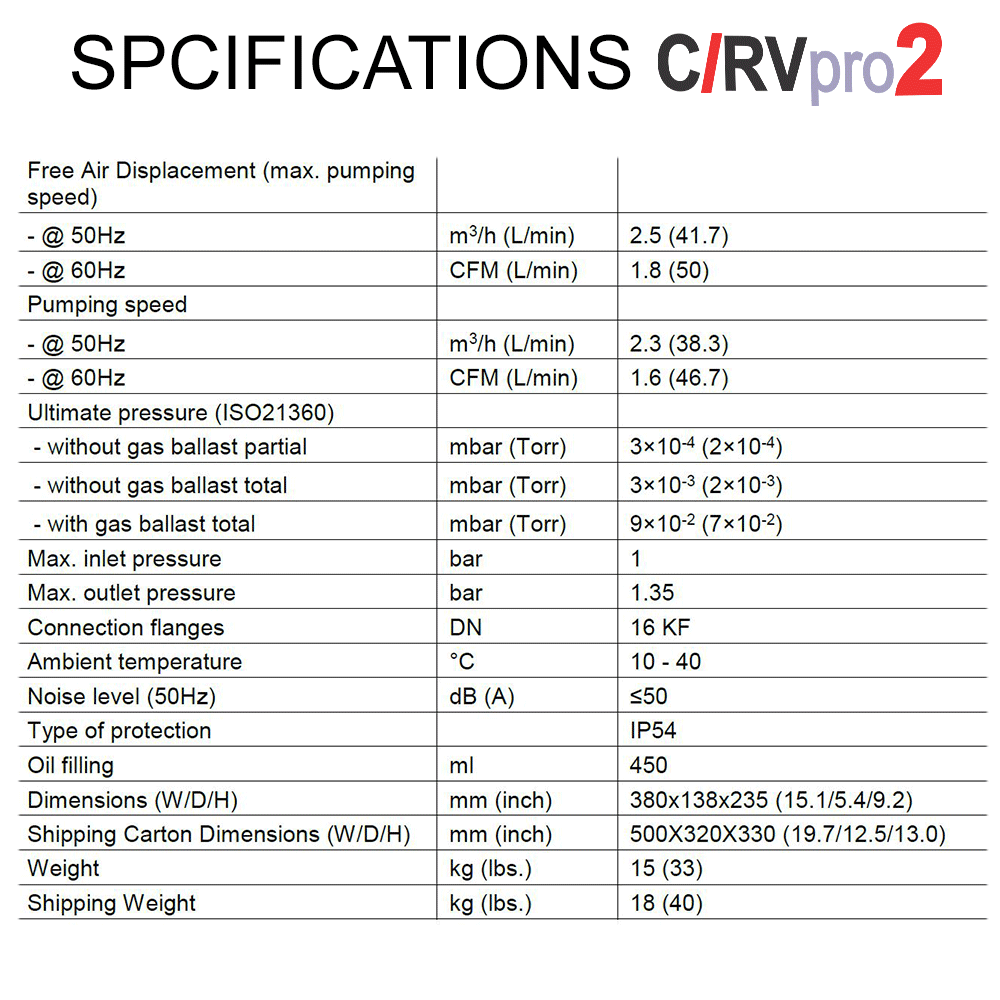

These Welch CRVpro 2 pumps are offered in 115V, 60Hz & 230V, 60Hz operation models. The CRVpro 2 can achieve an ultimate pressure of 2x10 -4 Torr with a 1.8 CFM and has KF 16 Outlet and Inlet Hose Barb.
The CRV pro series have accessories available to adapt to a variety of applications, including use with refrigeration, dehydration, brake line evacuation, epoxy degassing, sterilization, mass spectrometry, vacuum ovens, lasers, backing combinations, thin film coating, vacuum distillation, freeze drying, space research and other vacuum processes. An operation manual for the Welch CRV is available by downloading the .pdf to the side.
