Viton O-Ring for Grooved ASA 11.0 / ANSI 6 Flange

This is an elastomer Viton O-Ring for a grooved ASA 11.0 / ANSI 6 flange. The O-ring's width is 0.120 in. and its I.D. is 8.000 in. Used to mate an ASA 11.0 / ANSI 6 grooved flange with an ASA 11.0 / ANSI 6 smooth (non-grooved) flange.

Viton® (FKM) is the most popular O-ring seal material used in rough vacuum systems and is rated for high vacuum to 1 x 10-8 Torr. Viton is chemical and compression set resistant and has a working temperature range (continuous) of approximately -20°C to +150°C (-4°F to +300°F). The permeability of Viton does not allow it to be used for ultra-high vacuum applications.

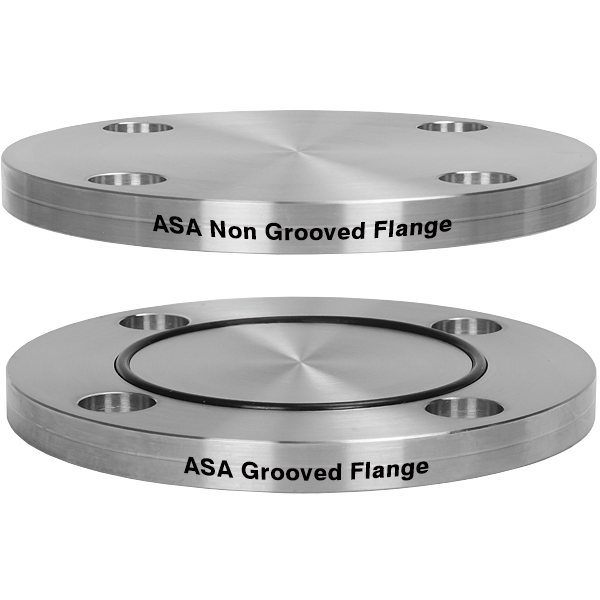

ASA flanges are available with a smooth or grooved face, rotatable or non-rotatable, bored or non-bored, and are named for the outer diameter of the flange, from 4.25 to 19 inches. The ANSI name for the same flange size corresponds to the nominal tubing size that can be welded to it, and ranges from 1 to 12 inches in diameter.

ASA / ANSI flanges were originally used for steam pipes but have now been adapted to vacuum. Diffusion pumps, roots blowers, cryopumps and large rotary piston pumps are some examples of vacuum pumps where these flanges are used. When sealed together with O-rings made of Viton, Buna or Silicone, they are capable of achieving vacuum pressures as low as 1x10^-8 Torr. We have a complete line of ASA flanges, O-rings, and bolt sets to fit your most demanding needs.
