Condition:
  New
Part Number:
  P105214
Warranty:
  Varian Warranty

Available Now:
1  



$747.25


Print Version

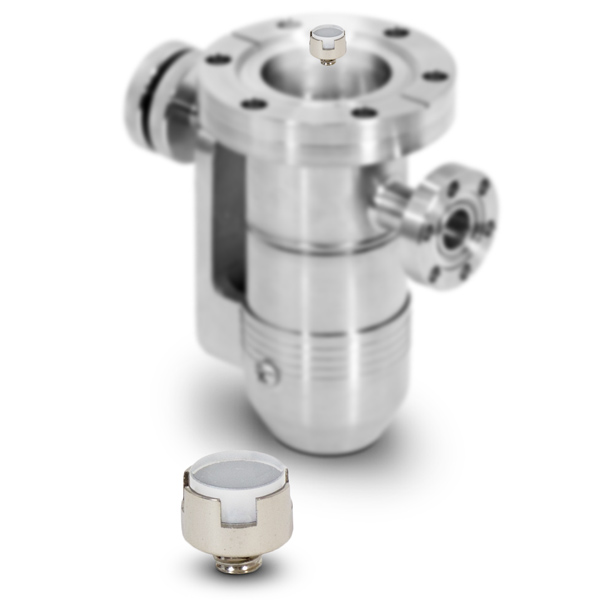

Agilent Replacement Sapphire Assembly for Agilent Variable Leak Valve, PN 9530072


Agilent Replacement Optically-Flat Sapphire Assembly for Agilent Variable Leak Valve. PN: 9530072

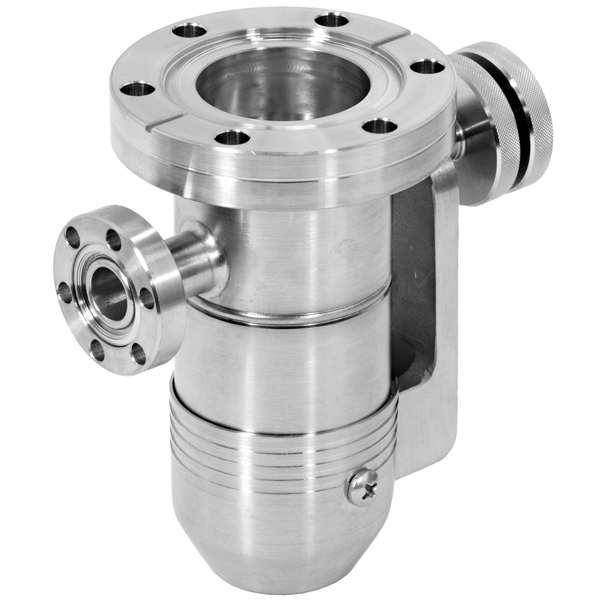

This is the Optically-Flat Sapphire Assembly Replacement for the Agilent Variable Leak Valve (PN: 951-5106). The sapphire assembly is designed to be replaced using a special removal tool, also made by Agilent. The assembly should arrive without any chips, scratches or cracks to ensure proper operation of the Agilent Variable Leak Valve. We offer all the necessary tools to make repairs and adjustments to the variable leak valve in our Related Products section below, including replacement parts such as the complete repair/tool kit and gasket assemblies. Replacement Sapphire Assembly, PN 9530072



Press ESC to Close


    How to Inspect, Clean or Replace Sapphire Assembly:

    a) Check the sapphire to be sure that it has no cracks or chips. Any fractures will require replacement of the sapphire assembly.

    b) Check the cleanliness of the polished face by viewing light reflected from its surface. Flush the face with acetone (CP grade recommended) and wipe off any film or grease. Be sure that no particles remain on the sapphire when ready for re-assembly.





PDF Logo Agilent 951-5106 Variable Leak Valve User Manual.pdf
