Vacuubrand MD 4 NT Diaphragm Pump, CFM 2.5, 0.75 Torr Ultimate Pressure, Inlet Connection KF-16.
Part Number 736005, (Substitute for the DISCONTINUED MZ4)

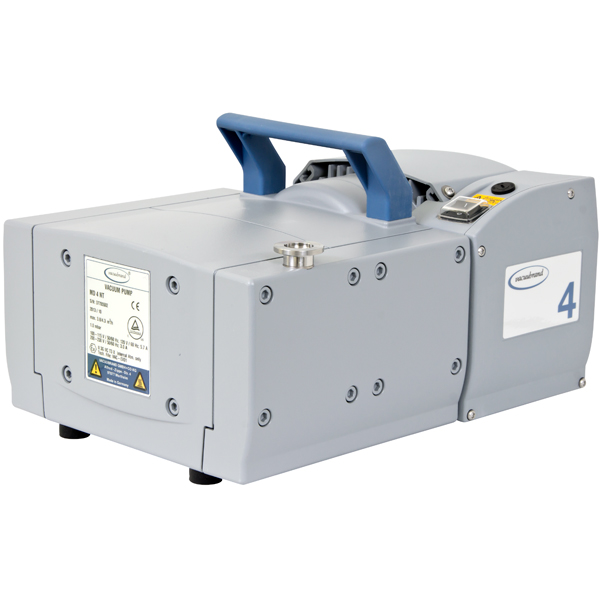

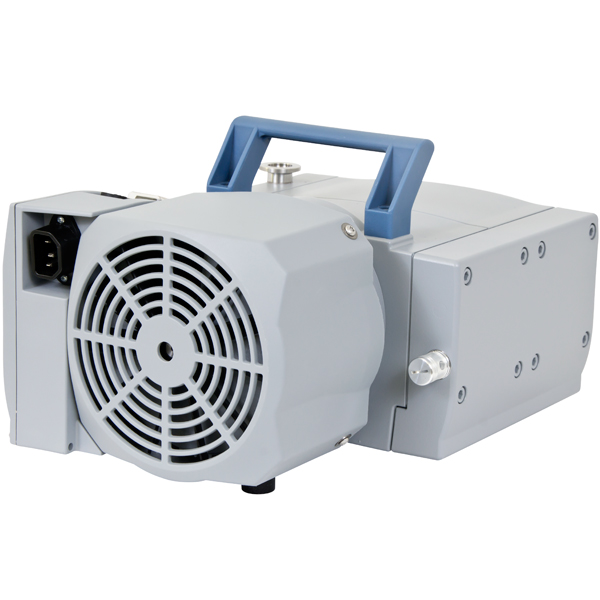

These Vacuubrand MD-4 NT dry diaphragm pumps have an ultimate pressure of 0.75 Torr, a pumping speed of 2.5 CFM, a KF-16 inlet connection, include a 3/8 inlet hose barb, have an exhaust silencer, operate on 1-Phase 110 to 120 VAC, and have Vacuubrand part number 736005. The Vacuubrand MD 4 NT pump is an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, and allow a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragm made of FPM is ideal for extended operating life. These pumps with four heads provide very high pumping speed. And this new NT-series features improved performance data.

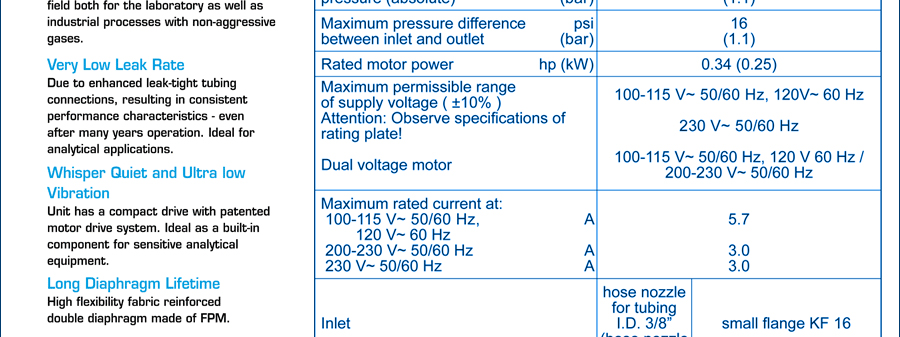

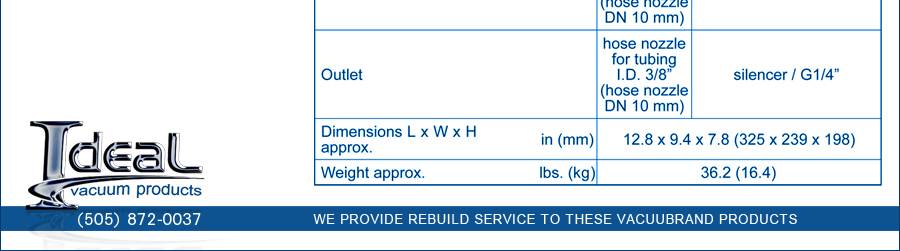

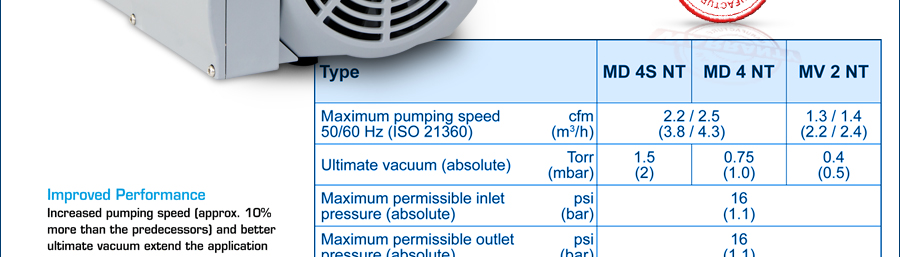

Easy to use and maintain. They are lightweight, portable and enable you to move them to wherever and whenever you need vacuum. Connect the pump to your system with a vacuum hose and setup is complete. This is a new pump and set up for 115 Vac 60 Hz. Hose connections are 3/8 inch ID barb (10mm) style connectors. 3/8 inch ID (10mm) vacuum grade vinyl hose tubing is available on this website, Part No. P103304. Outlets are G 1/4" - 2 Silencers. A complete technical data and application brochure in PDF format can be downloaded below.
