| ITEM |
DESCRIPTION |
PART NO. |
| 1 |
Standard Cold Cap Assembly |
86488301 |
| 2 |
Extended Cold Cap Assembly |
F6455001 |
| 3 |
Sight Glass Repair Kit consisting of:
| Sight Glass | L8816001 |
| Gasket, Teflon | L9694001 |
| O-ring, Viton, Parker No. 2-113 | ComI |
| O-ring, Viton, Parker No. 2-226 | ComI |
|
L8908301 |
| 4 |
Jet Assembly |
F3365301 |
| 5 |
Splash Baffle |
F4780301 |
| 6 |
Foreline Baffle Assembly |
L9172301 |
| 7 |
Thermal Switch Includes:
| 7a - Switch (set at 300°F – 147°C) | 642906025 |
| 7b - Lug | 648056680 |
| 7c - Wire | 656179100 |
| 7d - Box Insulator | 89867001 |
|
L8912301 |
| 8 |
Heaters (one heater required per pump)
| 120 V / 2200 watt Heater Element | 647306125 |
| 208 V / 2200 watt Heater Element | 647306175 |
| 240 V / 2200 watt Heater Element | 647306225 |
| |
|
|
| 9 |
Wire, No. 10 stranded, nickel |
656179100 |
| 9 |
Heater wire, 10 AWG, 36 inches (3 per pump required) |
X3901-68002 |
| 10 |
Lugs, Replacement, nickel |
648056680 |
| 11 |
Heater Clamp Assembly, Includes:
| 11a - Heater Cover Plate | 86088301 |
| 11b - Heater Insulator | 86087001 |
| 11c - Heater Clamp Plate | 86086301 |
|
86643301 |
| 12 |
Heater Insulating Blanket |
L8997001 |
| 13 |
Heater Cover |
L8997001 |
| 14 |
O-Ring Kit includes:
| 3 Butyl inlet flange O-ring, Parker No. 2-258 |
| 10 Viton fill and drain O-rings (old style), Parker No. 2-112 |
| 10 Viton fill and drain O-rings (new style, Parker No. 2-113 |
| 1 Sight glass O-ring, Parker No. 2-226 |
| 1 PTFE gasket |
|
K0377184 |
| 15 |
Baffle Retaining Ring |
699992156 |
| 16 |
Screw, Rd hd machine, no. 8-32x31/416, stainless steel |
Screw |
| 17 |
Stud, no. 8-32 x 1/2, stainless steel |
Stud |
| 18 |
Screw, Socket hd cap, no. 8-32x3/16, stainless steel |
Screw |
| 19 |
Viton Centering ring for ISO inlet flange, 200K |
IC200SV |
| 20 |
Centering ring for ISO foreline flange, KF50 |
KC50SV |
| 21 |
3/8 Hose 1/8 Pipe Barbed (included with the pump) |
624301102 |
| 22 |

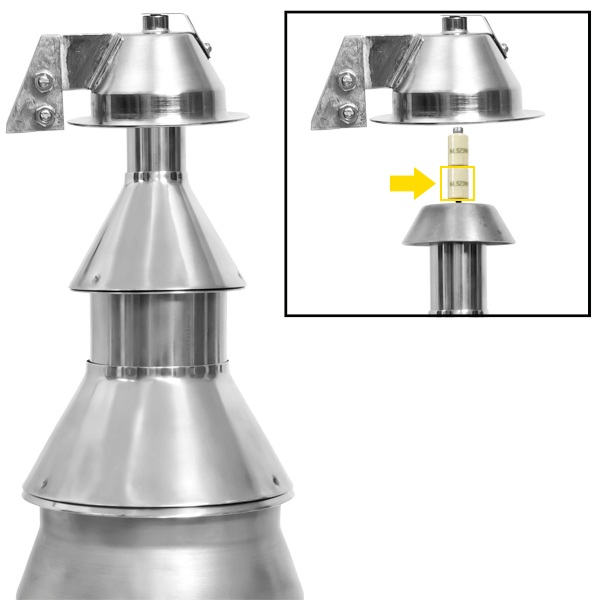

Ceramic Bushing (included with the pump) |
699006025 |
|
NEOVAC SY diffusion pump fluid, 1000 cc |
K6948301 |
|
DC-704 diffusion pump fluid, 500 cc |
695474005 |
|
DC-705 diffusion pump fluid, 500 cc |
695475005 |
|
Santovac 5 diffusion pump fluid, 500 cc |
695405005 |
|
Installation and Operation Manual-download from www.agilent.com/chem/vacuum |
699901021 |
