Home > Top Plate for 8 liter Vapor Trap, IVP XtremeFreez XFT-8, VT890A, with KF25 Inlet and KF16 Outlet Flanges, Stainless Steel

Condition:

New

Part Number:

P1010550

Warranty:

Against Product Defect

Available Now: 9

$1,124.07

Print Version

Top Plate for 8 liter Vapor Trap, IVP XtremeFreez XFT-8, VT890A, with KF25 Inlet and KF16 Outlet Flanges, Stainless Steel

Top Plate for 8 liter Vapor Trap, IVP XtremeFreez XFT-8, VT890A, with KF25 Inlet and KF16 Outlet Flanges, Stainless Steel

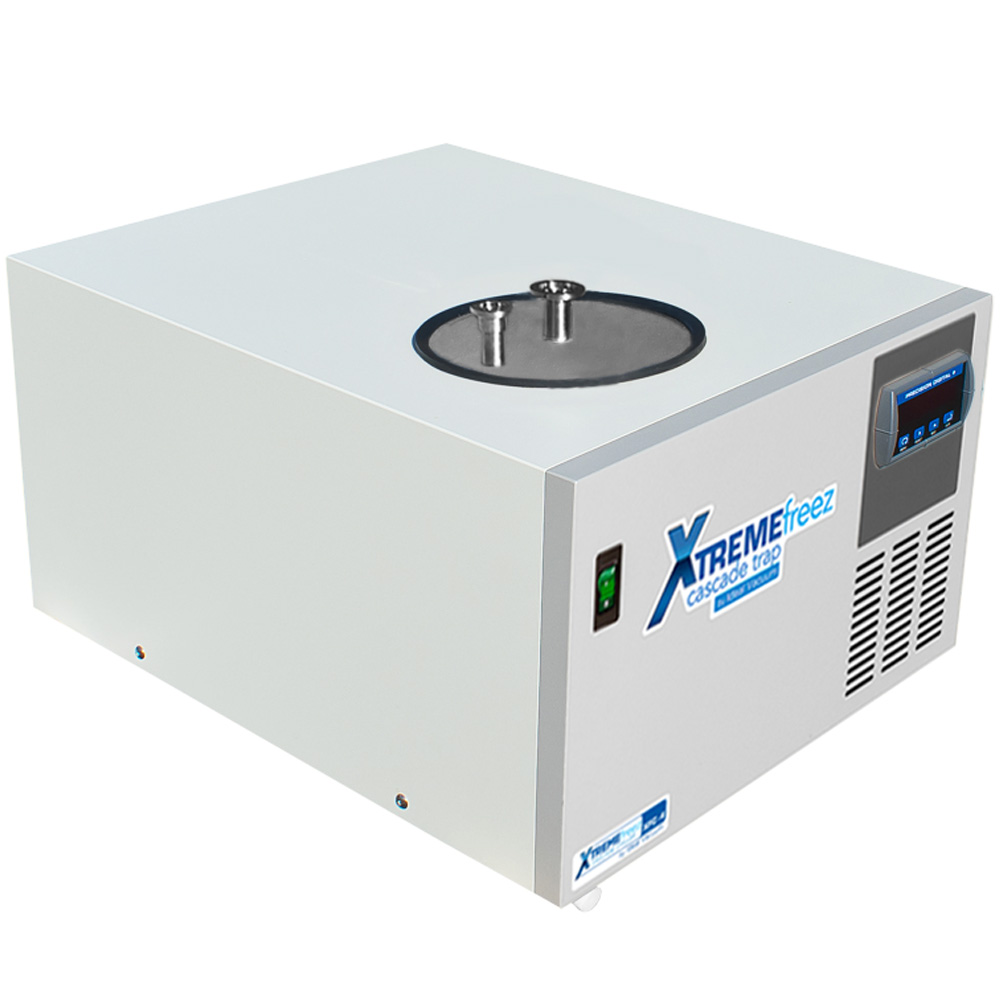

This is a stainless steel top plate for the Ideal Vacuum XtremeFreez XFT-8, eight liter refrigerated vapor trap and FTS VT890A. Inlet port size is 3/4 inch OD tube with KF-25 flange. Outlet port is 5/8 inch OD tube with KF-16 flange. Vapor Trap sold separately.

Please contact our sales department if you need custom port sizes.

Download the manual below for instructions.

Press ESC to Close

XtremeFreez Cascade Trap freezes down to -90 degrees celsius without liquid Nitrogen or dry ice the Xtreme Freez used as vacuum traping vapor

IVP XtremeFreez XFT-4 and XFT-8 Refrigerated Vapor Traps User's Manual

Ideal Vacuum Company Overview Brochure.pdf

P1010550.sldprt

P1010550.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
